FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFK120N65X2MOSFET N-CH 650V 120A TO264 |
285 |
|
Datasheet | HiPerFET™, Ultra X2 | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 120A (Tc) | 10V | 24mOhm @ 60A, 10V | 5.5V @ 8mA | 225 nC @ 10 V | ±30V | 15500 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264AA |
|
IXFN220N20X3MOSFET N-CH 200V 160A SOT227B |
280 |
|
Datasheet | HiPerFET™, Ultra X3 | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 160A (Tc) | 10V | 6.2mOhm @ 110A, 10V | 4.5V @ 4mA | 204 nC @ 10 V | ±20V | 13600 pF @ 25 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXTN90P20PMOSFET P-CH 200V 90A SOT227B |
279 |
|
Datasheet | PolarP™ | SOT-227-4, miniBLOC | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 90A (Tc) | 10V | 44mOhm @ 500mA, 10V | 4V @ 1mA | 205 nC @ 10 V | ±20V | 12000 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFK24N100Q3MOSFET N-CH 1000V 24A TO264AA |
1,810 |
|
Datasheet | HiPerFET™, Q3 Class | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 24A (Tc) | 10V | 440mOhm @ 12A, 10V | 6.5V @ 4mA | 140 nC @ 10 V | ±30V | 7200 pF @ 25 V | - | 1000W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264AA (IXFK) |
.jpg "IXTX120P20T")
|
IXTX120P20TMOSFET P-CH 200V 120A PLUS247-3 |
164 |
|
Datasheet | TrenchP™ | TO-247-3 Variant | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 120A (Tc) | - | 30mOhm @ 60A, 10V | 4.5V @ 250µA | 740 nC @ 10 V | - | 73000 pF @ 25 V | - | - | - | - | - | Through Hole | PLUS247™-3 |
|
|
IXFN100N65X2MOSFET N-CH 650V 78A SOT227B |
298 |
|
Datasheet | HiPerFET™, Ultra X2 | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 78A (Tc) | 10V | 30mOhm @ 50A, 10V | 5V @ 4mA | 183 nC @ 10 V | ±30V | 10800 pF @ 25 V | - | 595W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|

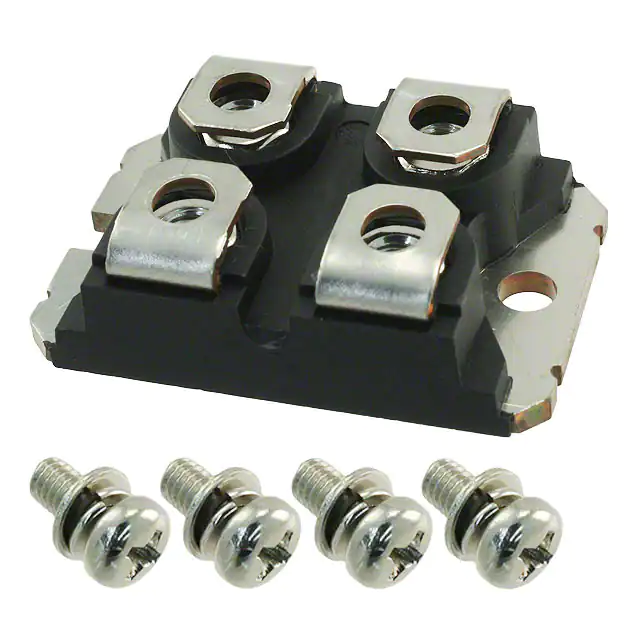

IXTN102N65X2MOSFET N-CH 650V 76A SOT227 |
327 |
|
Datasheet | Ultra X2 | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 76A (Tc) | 10V | 30mOhm @ 51A, 10V | 5V @ 250µA | 152 nC @ 10 V | ±30V | 10900 pF @ 25 V | - | 595AW (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227 |
|
|
IXTX60N50L2MOSFET N-CH 500V 60A PLUS247-3 |
292 |
|
Datasheet | Linear L2™ | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 60A (Tc) | 10V | 100mOhm @ 30A, 10V | 4.5V @ 250µA | 610 nC @ 10 V | ±30V | 24000 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
|
IXFN80N50PMOSFET N-CH 500V 66A SOT227B |
1,956 |
|
Datasheet | HiPerFET™, Polar | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 66A (Tc) | 10V | 65mOhm @ 500mA, 10V | 5V @ 8mA | 195 nC @ 10 V | ±30V | 12700 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXTN110N20L2MOSFET N-CH 200V 100A SOT227B |
308 |
|
Datasheet | Linear L2™ | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 100A (Tc) | 10V | 24mOhm @ 55A, 10V | 4.5V @ 3mA | 500 nC @ 10 V | ±20V | 23000 pF @ 25 V | - | 735W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
