FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDMC012N03MOSFET N-CH 30V 35A/185A POWER33 |
1,097 |
|
Datasheet | PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 35A (Ta), 185A (Tc) | 4.5V, 10V | 1.23mOhm @ 35A, 10V | 2V @ 250µA | 110 nC @ 10 V | ±12V | 8183 pF @ 15 V | - | 2.3W (Ta), 64W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power33 |
|
FCPF360N65S3R0L-F154POWER MOSFET, N-CHANNEL, SUPERFE |
640 |
|
Datasheet | SuperFET® III | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 10A (Tj) | 10V | 360mOhm @ 5A, 10V | 4.5V @ 200µA | 18 nC @ 10 V | ±30V | 730 pF @ 400 V | - | 27W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
FDMS2D5N08CMOSFET N-CH 80V 166A POWER56 |
2,651 |
|
Datasheet | PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 166A (Tc) | 6V, 10V | 2.7mOhm @ 68A, 10V | 4V @ 380µA | 84 nC @ 10 V | ±20V | 6240 pF @ 40 V | - | 138W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power56 |
|

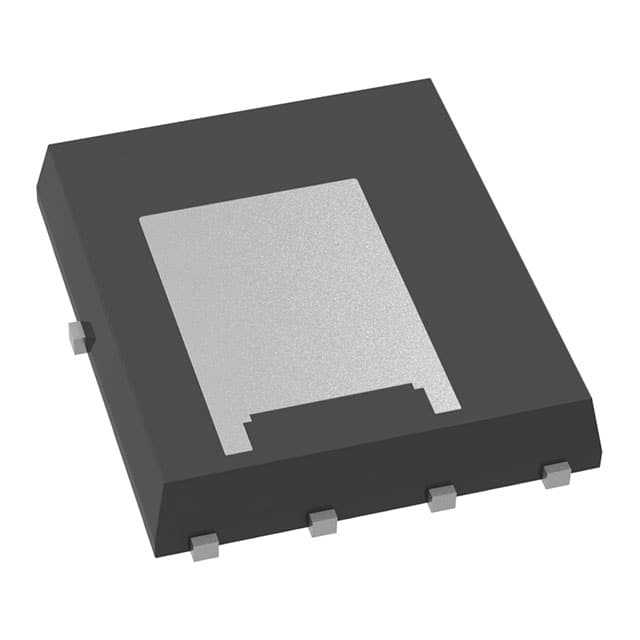

FDMS8320LDCMOSFET N-CH 40V 44A DLCOOL56 |
4,414 |
|
Datasheet | Dual Cool™, PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 44A (Ta), 130A (Tc) | 4.5V, 10V | 1.1mOhm @ 44A, 10V | 3V @ 250µA | 170 nC @ 10 V | ±20V | 11635 pF @ 20 V | - | 3.2W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
FCP11N60MOSFET N-CH 600V 11A TO220-3 |
1,629 |
|
Datasheet | SuperFET™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 380mOhm @ 5.5A, 10V | 5V @ 250µA | 52 nC @ 10 V | ±30V | 1490 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
FQB5N90TMMOSFET N-CH 900V 5.4A D2PAK |
1,139 |
|
Datasheet | QFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 5.4A (Tc) | 10V | 2.3Ohm @ 2.7A, 10V | 5V @ 250µA | 40 nC @ 10 V | ±30V | 1550 pF @ 25 V | - | 3.13W (Ta), 158W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
NTP011N15MCMOSFET N-CH 150V 9.8/74.3A TO220 |
237 |
|
Datasheet | PowerTrench® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 9.8A (Ta), 74.3A (Tc) | - | 10.9mOhm @ 41A, 10V | 4.5V @ 223µA | 37 nC @ 10 V | ±20V | 2810 pF @ 75 V | - | 2.4W (Ta), 136.4W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
FDMC010N08CMOSFET N-CH 80V 11A/51A POWER33 |
5,400 |
|
Datasheet | PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 11A (Ta), 51A (Tc) | 6V, 10V | 10mOhm @ 16A, 10V | 4V @ 90µA | 22 nC @ 10 V | ±20V | 1500 pF @ 40 V | - | 2.4W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power33 |
|
NTB6410ANT4GMOSFET N-CH 100V 76A D2PAK |
1,441 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 76A (Tc) | 10V | 13mOhm @ 76A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 4500 pF @ 25 V | - | 188W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
FCPF380N65FL1-F154MOSFET N-CH 650V 10.2A TO220F-3 |
955 |
|
Datasheet | FRFET®, SuperFET® II | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 10.2A (Tc) | - | 380mOhm @ 5.1A, 10V | 5V @ 1mA | 43 nC @ 10 V | ±20V | 1680 pF @ 100 V | - | 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
