FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCP7N60MOSFET N-CH 600V 7A TO220-3 |
902 |
|
Datasheet | SuperFET™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 600mOhm @ 3.5A, 10V | 5V @ 250µA | 30 nC @ 10 V | ±30V | 920 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
NVMFS5C430NLAFT1GMOSFET N-CH 40V 38A/200A 5DFN |
1,500 |
|
Datasheet | - | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 38A (Ta), 200A (Tc) | 4.5V, 10V | 1.4mOhm @ 50A, 10V | 2V @ 250µA | 70 nC @ 10 V | ±20V | 4300 pF @ 20 V | - | 3.8W (Ta), 110W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
NTTFS022N15MCPOWER MOSFET, N CHANNEL, 150V, 3 |
3,940 |
|
Datasheet | PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 7.4A (Ta), 37.2A (Tc) | 8V, 10V | 22mOhm @ 18A, 10V | 4.5V @ 100µA | 17 nC @ 10 V | ±20V | 1315 pF @ 75 V | - | 1.2W (Ta), 71.4W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-PQFN (3.3x3.3) |
|
|
HUF75345P3MOSFET N-CH 55V 75A TO220-3 |
5,097 |
|
Datasheet | UltraFET™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 7mOhm @ 75A, 10V | 4V @ 250µA | 275 nC @ 20 V | ±20V | 4000 pF @ 25 V | - | 325W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|

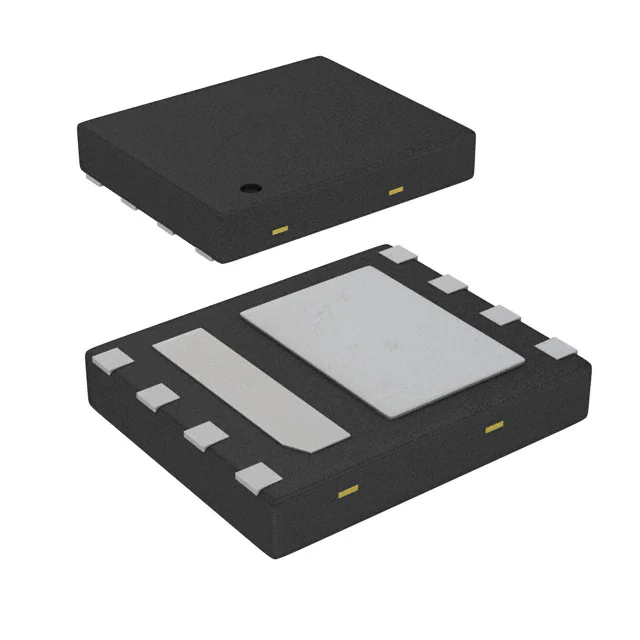

FDMS2672MOSFET N-CH 200V 3.7A/20A 8MLP |
4,045 |
|
Datasheet | UltraFET™ | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 3.7A (Ta), 20A (Tc) | 6V, 10V | 77mOhm @ 3.7A, 10V | 4V @ 250µA | 42 nC @ 10 V | ±20V | 2315 pF @ 100 V | - | 2.5W (Ta), 78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (5x6), Power56 |
|
|
FDP085N10A-F102MOSFET N-CH 100V 96A TO220-3 |
800 |
|
Datasheet | PowerTrench® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 96A (Tc) | 10V | 8.5mOhm @ 96A, 10V | 4V @ 250µA | 40 nC @ 10 V | ±20V | 2695 pF @ 50 V | - | 188W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
NTMFS0D6N03CT1GMOSFET, POWER, SINGLE N-CHANNEL, |
5,697 |
|
Datasheet | - | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 60A (Ta), 433A (Tc) | 4.5V, 10V | 0.62mOhm @ 30A, 10V | 2.2V @ 280µA | 145 nC @ 10 V | ±20V | 10500 pF @ 15 V | - | 3.9W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
FDB16AN08A0MOSFET N-CH 75V 9A/58A D2PAK |
985 |
|
Datasheet | PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 9A (Ta), 58A (Tc) | 6V, 10V | 16mOhm @ 58A, 10V | 4V @ 250µA | 42 nC @ 10 V | ±20V | 1857 pF @ 25 V | - | 135W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
NTBS9D0N10MCMOSFET N-CH 100V 14A/60A TO263 |
961 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 14A (Ta), 60A (Tc) | 6V, 10V | 9mOhm @ 23A, 10V | 4V @ 131µA | 23 nC @ 10 V | ±20V | 1695 pF @ 50 V | - | 3.8W (Ta), 68W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
NVMFS5C645NLWFAFT1GMOSFET N-CH 60V 22A 5DFN |
1,019 |
|
Datasheet | - | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 22A (Ta) | 4.5V, 10V | 4mOhm @ 50A, 10V | 2V @ 250µA | 34 nC @ 10 V | ±20V | 2200 pF @ 50 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 5-DFNW (4.9x5.9) (8-SOFL-WF) |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
