FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF9Z34NSPBFMOSFET P-CH 55V 19A D2PAK |
3,228 |
|
Datasheet | HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | P-Channel | MOSFET (Metal Oxide) | 55 V | 19A (Tc) | 10V | 100mOhm @ 10A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±20V | 620 pF @ 25 V | - | 3.8W (Ta), 68W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IRF3305PBFMOSFET N-CH 55V 75A TO220AB |
7,736 |
|
Datasheet | HEXFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 8mOhm @ 75A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 3650 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IRFB4215PBFMOSFET N-CH 60V 115A TO220AB |
2,995 |
|
Datasheet | HEXFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 115A (Tc) | 10V | 9mOhm @ 54A, 10V | 4V @ 250µA | 170 nC @ 10 V | ±20V | 4080 pF @ 25 V | - | 270W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IRF3315SPBFMOSFET N-CH 150V 21A D2PAK |
5,770 |
|
Datasheet | HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 150 V | 21A (Tc) | 10V | 82mOhm @ 12A, 10V | 4V @ 250µA | 95 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 3.8W (Ta), 94W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IRL3502SPBFMOSFET N-CH 20V 110A D2PAK |
9,865 |
|
Datasheet | HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 110A (Tc) | 4.5V, 7V | 7mOhm @ 64A, 7V | 700mV @ 250µA (Min) | 110 nC @ 4.5 V | ±10V | 4700 pF @ 15 V | - | 140W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
64-2092PBFMOSFET N-CH 55V 75A D2PAK |
6,013 |
|
Datasheet | HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 6.5mOhm @ 66A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 3450 pF @ 25 V | - | 170W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IRF2807SPBFMOSFET N-CH 75V 82A D2PAK |
6,473 |
|
Datasheet | HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 75 V | 82A (Tc) | 10V | 13mOhm @ 43A, 10V | 4V @ 250µA | 160 nC @ 10 V | ±20V | 3820 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|

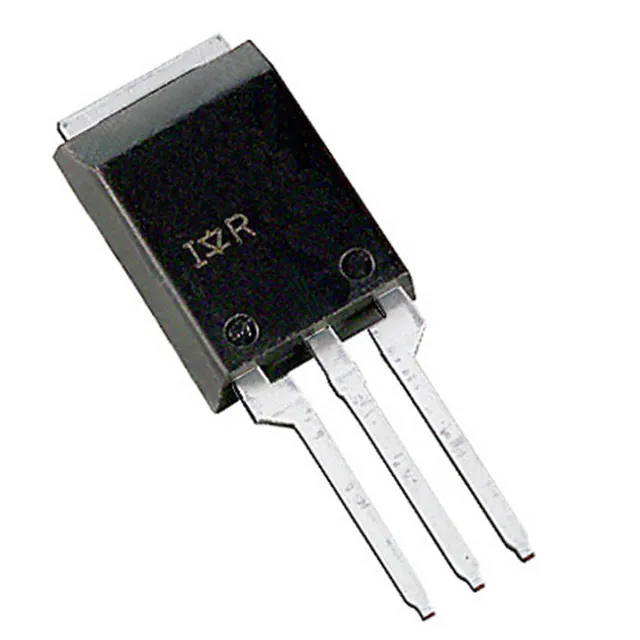

IRLBA1304PPBFMOSFET N-CH 40V 185A SUPER-220 |
4,324 |
|
Datasheet | HEXFET® | TO-273AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 185A (Tc) | 4.5V, 10V | 4mOhm @ 110A, 10V | 1V @ 250µA | 140 nC @ 4.5 V | ±16V | 7660 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | SUPER-220™ (TO-273AA) |
|
IRLR3714ZPBFMOSFET N-CH 20V 37A DPAK |
8,205 |
|
Datasheet | HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 37A (Tc) | 4.5V, 10V | 15mOhm @ 15A, 10V | 2.55V @ 250µA | 7.1 nC @ 4.5 V | ±20V | 560 pF @ 10 V | - | 35W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRFR3704ZPBFMOSFET N-CH 20V 60A DPAK |
2,051 |
|
Datasheet | HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 60A (Tc) | 4.5V, 10V | 8.4mOhm @ 15A, 10V | 2.55V @ 250µA | 14 nC @ 4.5 V | ±20V | 1190 pF @ 10 V | - | 48W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
