FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFR2307ZTRLPBFMOSFET N-CH 75V 42A DPAK |
7,703 |
|
Datasheet | HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 42A (Tc) | 10V | 16mOhm @ 32A, 10V | 4V @ 100µA | 75 nC @ 10 V | ±20V | 2190 pF @ 25 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IPD11DP10NMATMA1TRENCH >=100V PG-TO252-3 |
3,796 |
|
Datasheet | OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 3.4A (Ta), 22A (Tc) | 10V | 111mOhm @ 18A, 10V | 4V @ 1.7mA | 74 nC @ 10 V | ±20V | 3200 pF @ 50 V | - | 3W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
IPD028N06NF2SATMA1TRENCH 40<-<100V |
1,490 |
|
Datasheet | StrongIRFET™2 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 24A (Ta), 139A (Tc) | 6V, 10V | 2.85mOhm @ 70A, 10V | 3.3V @ 80µA | 102 nC @ 10 V | ±20V | 4600 pF @ 30 V | - | 3W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
IPP050N10NF2SAKMA1TRENCH >=100V |
917 |
|
Datasheet | StrongIRFET™ 2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 19.4A (Ta), 110A (Tc) | 6V, 10V | 5mOhm @ 60A, 10V | 3.8V @ 84µA | 76 nC @ 10 V | ±20V | 3600 pF @ 50 V | - | 3.8W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
IPB80N06S4L07ATMA2MOSFET N-CH 60V 80A TO263-3 |
1,423 |
|
Datasheet | OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 80A (Tc) | 4.5V, 10V | 6.7mOhm @ 80A, 10V | 2.2V @ 40µA | 75 nC @ 10 V | ±16V | 5680 pF @ 25 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO263-3-2 |
|
IPA95R1K2P7XKSA1MOSFET N-CH 950V 6A TO220 |
484 |
|
Datasheet | CoolMOS™ P7 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 6A (Tc) | 10V | 1.2Ohm @ 2.7A, 10V | 3.5V @ 140µA | 15 nC @ 10 V | ±20V | 478 pF @ 400 V | - | 27W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
IRFB7537PBFMOSFET N-CH 60V 173A TO220AB |
3,801 |
|
Datasheet | HEXFET®, StrongIRFET™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 173A (Tc) | 6V, 10V | 3.3mOhm @ 100A, 10V | 3.7V @ 150µA | 210 nC @ 10 V | ±20V | 7020 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|

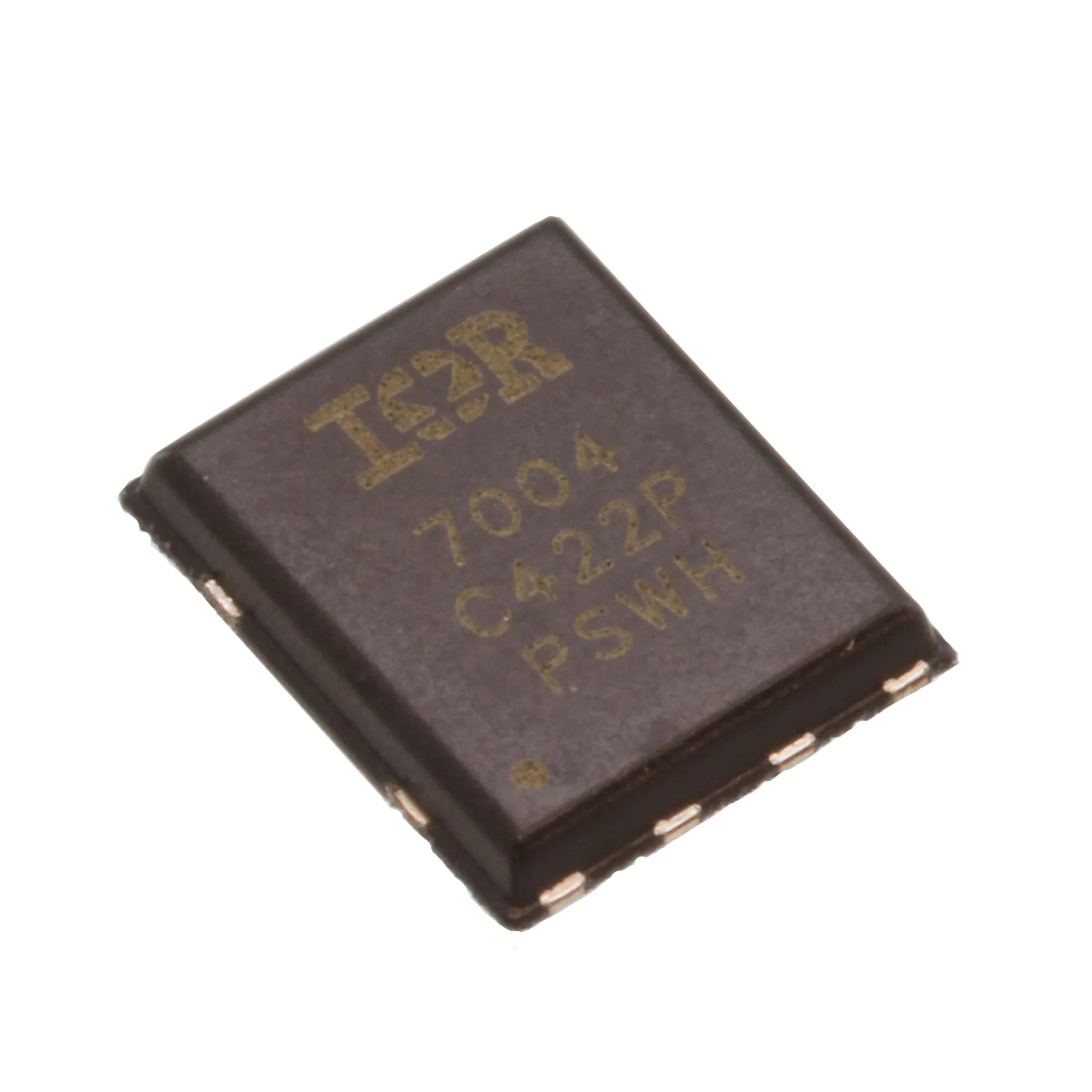

IRFH7004TRPBFMOSFET N-CH 40V 100A 8PQFN |
3,690 |
|
Datasheet | HEXFET®, StrongIRFET™ | 8-VQFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 6V, 10V | 1.4mOhm @ 100A, 10V | 3.9V @ 150µA | 194 nC @ 10 V | ±20V | 6419 pF @ 25 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
|
SPD04N80C3ATMA1MOSFET N-CH 800V 4A TO252-3 |
10,800 |
|
Datasheet | CoolMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4A (Tc) | 10V | 1.3Ohm @ 2.5A, 10V | 3.9V @ 240µA | 31 nC @ 10 V | ±20V | 570 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
|
IPD055N08NF2SATMA1MOSFET |
1,240 |
|
Datasheet | StrongIRFET™ 2 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 17A (Ta), 98A (Tc) | 6V, 10V | 5.5mOhm @ 60A, 10V | 3.8V @ 55µA | 54 nC @ 10 V | ±20V | 2500 pF @ 40 V | - | 3W (Ta), 107W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
