FET, MOSFET Arrays
Review FET, MOSFET Arrays FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTM50TAM65FPGMOSFET 6N-CH 500V 51A SP6-P |
9,047 |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 500V | 51A | 78mOhm @ 25.5A, 10V | 5V @ 2.5mA | 140nC @ 10V | 7000pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
APTM100A13DGMOSFET 2N-CH 1000V 65A SP6 |
3,833 |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1000V (1kV) | 65A | 156mOhm @ 32.5A, 10V | 5V @ 6mA | 562nC @ 10V | 15200pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM20HM10FGMOSFET 4N-CH 200V 175A SP6 |
5,401 |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 200V | 175A | 12mOhm @ 87.5A, 10V | 5V @ 5mA | 224nC @ 10V | 13700pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
APTM100A13SGMOSFET 2N-CH 1000V 65A SP6 |
5,666 |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1000V (1kV) | 65A | 156mOhm @ 32.5A, 10V | 5V @ 6mA | 562nC @ 10V | 15200pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM100TA35FPGMOSFET 6N-CH 1000V 22A SP6-P |
2,126 |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 1000V (1kV) | 22A | 420mOhm @ 11A, 10V | 5V @ 2.5mA | 186nC @ 10V | 5200pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
MSCSM70VM10C4AGMOSFET 2N-CH 700V 238A SP4 |
1 |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 700V | 238A (Tc) | 9.5mOhm @ 80A, 20V | 2.4V @ 8mA | 430nC @ 20V | 9000pF @ 700V | 674W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP4 |
|

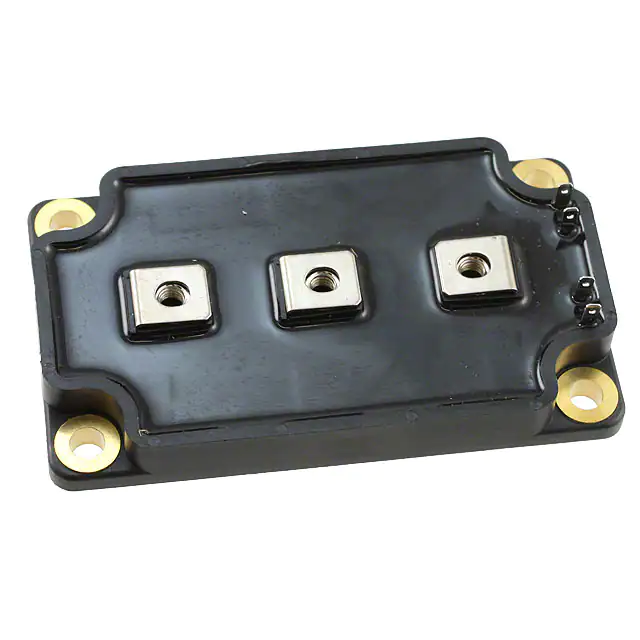

APTM20DUM04GMOSFET 2N-CH 200V 372A SP6 |
5,791 |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 200V | 372A | 5mOhm @ 186A, 10V | 5V @ 10mA | 560nC @ 10V | 28900pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM50AM19FGMOSFET 2N-CH 500V 163A SP6 |
4,054 |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 500V | 163A | 22.5mOhm @ 81.5A, 10V | 5V @ 10mA | 492nC @ 10V | 22400pF @ 25V | 1136W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM10DUM02GMOSFET 2N-CH 100V 495A SP6 |
6,334 |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 495A | 2.5mOhm @ 200A, 10V | 4V @ 10mA | 1360nC @ 10V | 40000pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM120A20DGMOSFET 2N-CH 1200V 50A SP6 |
2,973 |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 50A | 240mOhm @ 25A, 10V | 5V @ 6mA | 600nC @ 10V | 15200pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
Frequently Asked Questions
What are FET, MOSFET Arrays components used for?
FET, MOSFET Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FET, MOSFET Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FET, MOSFET Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
