FET, MOSFET Arrays
Review FET, MOSFET Arrays FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTM20AM08FTGMOSFET 2N-CH 200V 208A SP4 |
4,386 |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 200V | 208A | 10mOhm @ 104A, 10V | 5V @ 5mA | 280nC @ 10V | 14400pF @ 25V | 781W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
APTM10TAM19FPGMOSFET 6N-CH 100V 70A SP6-P |
6,300 |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 100V | 70A | 21mOhm @ 35A, 10V | 4V @ 1mA | 200nC @ 10V | 5100pF @ 25V | 208W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
|
APTM20HM16FTGMOSFET 4N-CH 200V 104A SP4 |
8,341 |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 200V | 104A | 19mOhm @ 52A, 10V | 5V @ 2.5mA | 140nC @ 10V | 7220pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM10AM05FTGMOSFET 2N-CH 100V 278A SP4 |
4,805 |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 100V | 278A | 5mOhm @ 125A, 10V | 4V @ 5mA | 700nC @ 10V | 20000pF @ 25V | 780W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
APTM50AM35FTGMOSFET 2N-CH 500V 99A SP4 |
5,004 |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 500V | 99A | 39mOhm @ 49.5A, 10V | 5V @ 5mA | 280nC @ 10V | 14000pF @ 25V | 781W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM50HM65FTGMOSFET 4N-CH 500V 51A SP4 |
8,606 |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 500V | 51A | 78mOhm @ 25.5A, 10V | 5V @ 2.5mA | 140nC @ 10V | 7000pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|

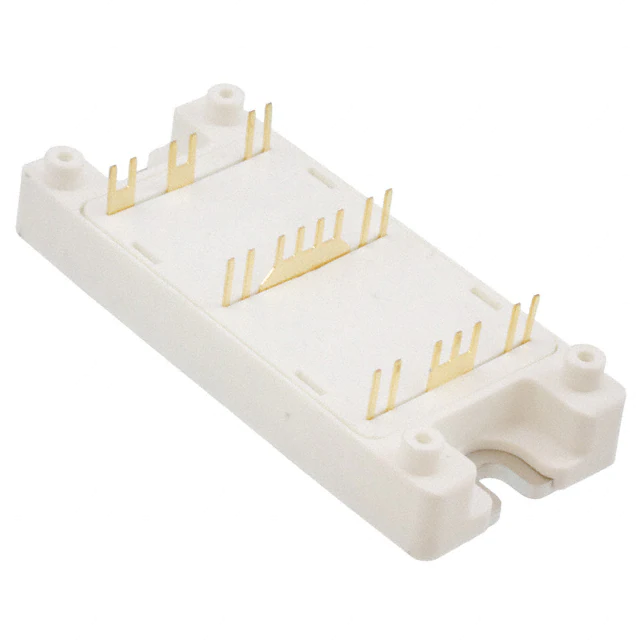

APTM100H45STGMOSFET 4N-CH 1000V 18A SP4 |
2,016 |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1000V (1kV) | 18A | 540mOhm @ 9A, 10V | 5V @ 2.5mA | 154nC @ 10V | 4350pF @ 25V | 357W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM100A23STGMOSFET 2N-CH 1000V 36A SP4 |
6,262 |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1000V (1kV) | 36A | 270mOhm @ 18A, 10V | 5V @ 5mA | 308nC @ 10V | 8700pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
APTM100A18FTGMOSFET 2N-CH 1000V 43A SP4 |
7,540 |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1000V (1kV) | 43A | 210mOhm @ 21.5A, 10V | 5V @ 5mA | 372nC @ 10V | 10400pF @ 25V | 780W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM100H35FTGMOSFET 4N-CH 1000V 22A SP4 |
4,896 |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1000V (1kV) | 22A | 420mOhm @ 11A, 10V | 5V @ 2.5mA | 186nC @ 10V | 5200pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
Frequently Asked Questions
What are FET, MOSFET Arrays components used for?
FET, MOSFET Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FET, MOSFET Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FET, MOSFET Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
