Encoders
Review Encoders Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-5500#G05ROTARY ENCODER OPTICAL 360PPR |
2,797 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 360 | 5V | 3/16" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

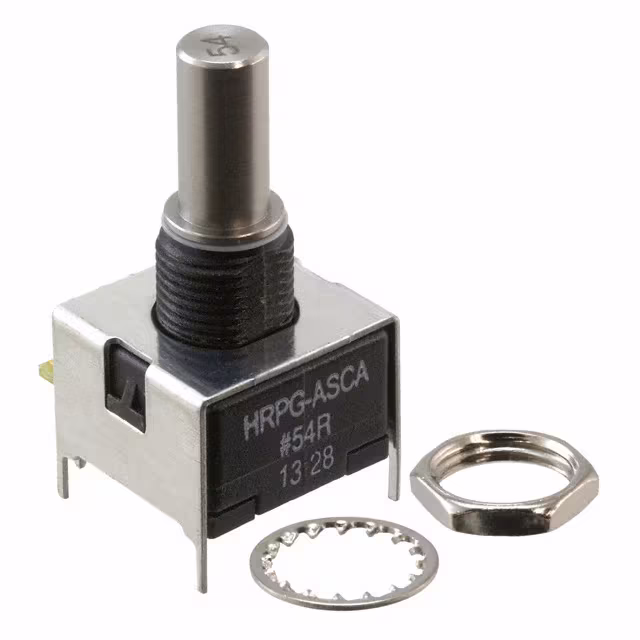

HRPG-ASCA#54RROTARY ENCODER OPTICAL 120PPR |
149 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 120 | 5V | 6mm Dia Round End | No | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
HEDS-5540#A14ROTARY ENCODER OPTICAL 500PPR |
139 |
|
Datasheet | HEDS | Tray | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HRPG-AD32#16RROTARY ENCODER OPTICAL 32PPR |
142 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
AS20-M42M-K1120MM KITS 42B MT 5V 4MM RS485 |
117 |
|
Datasheet | AS20 | Bulk | Active | - | Absolute, Magnetic | - | - | 4.5V ~ 5.5V | Hole for Shaft | No | Yes | Chassis Mount | Vertical | Connector | - | - | - |
|
|
AS20-M42M-B1120MM KITS 42B MT 5V 4MM BISS |
118 |
|
Datasheet | AS20 | Bulk | Active | - | Absolute, Magnetic | - | - | 4.5V ~ 5.5V | Hole for Shaft | No | Yes | Chassis Mount | Vertical | Connector | - | - | - |
|
|
AR25-AS1P-A18TPCBA CW 12MMTHRU H,SSI/485/ESL |
1,674 |
|
Datasheet | - | Tray | Active | Not Verified | Optical | Digital, SSI | - | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|

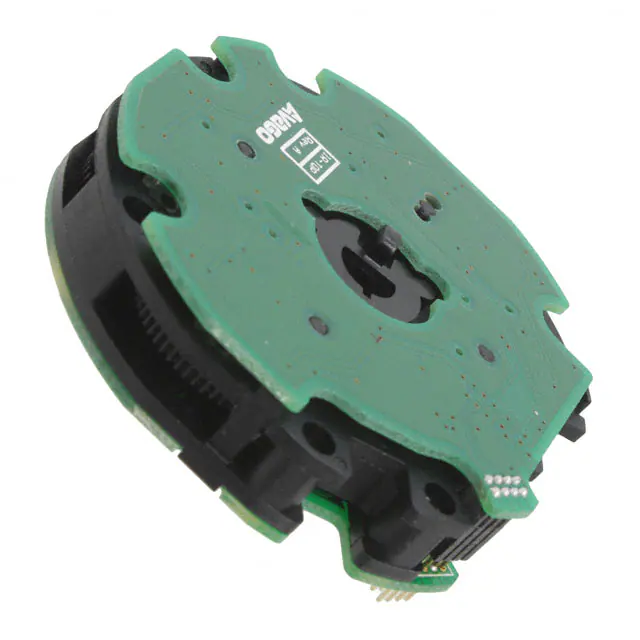

AEAT-84AD-LBSF0ROTARY ENCODER OPTICAL 16384PPR |
4,732 |
|
Datasheet | AEAT-84AD | Bulk | Active | Not Verified | Optical | Gray Code (Absolute) | 16384 | 5V | 10mm Geared Center | No | No | Chassis Mount | - | Pin Strip | - | - | - |
|

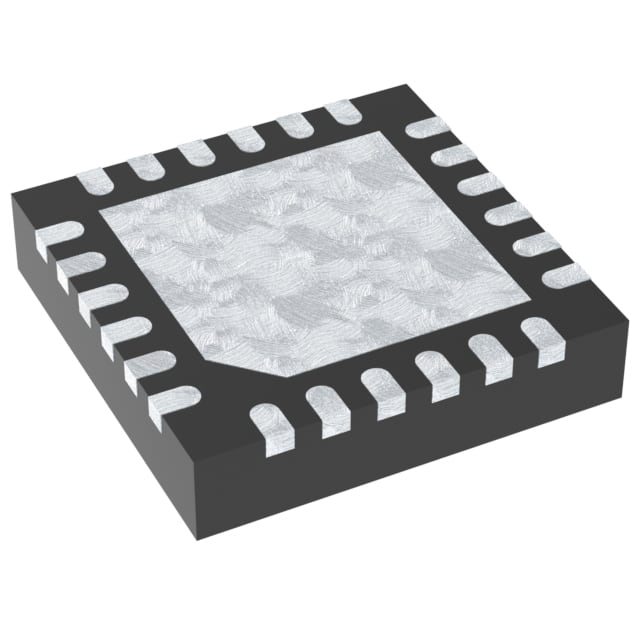

AEAT-8811-Q24ENHANCE PROG 16BITS IC MAGNETIC |
886 |
|
Datasheet | - | Tube | Last Time Buy | Not Verified | Magnetic | Commutation, PWM, SPI, Quadrature with index (Incremental) | Programmable | 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | Vertical | SMD (SMT) Tab | - | - | - |
|
HEDS-9000#U00ROTARY ENCODER OPTICAL 2048PPR |
226 |
|
Datasheet | HEDS | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 2048 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
Frequently Asked Questions
What are Encoders components used for?
Encoders components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Encoders part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Encoders parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
