Encoders
Review Encoders Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

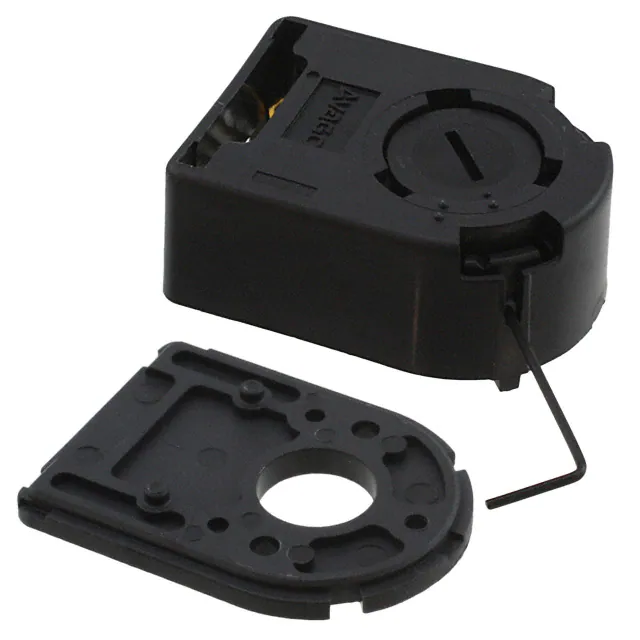

HEDS-5540#A02ROTARY ENCODER OPTICAL 500PPR |
2,099 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 3mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5540#A12ROTARY ENCODER OPTICAL 500PPR |
4,104 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HRPG-AD32#13RROTARY ENCODER OPTICAL 32PPR |
130 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|

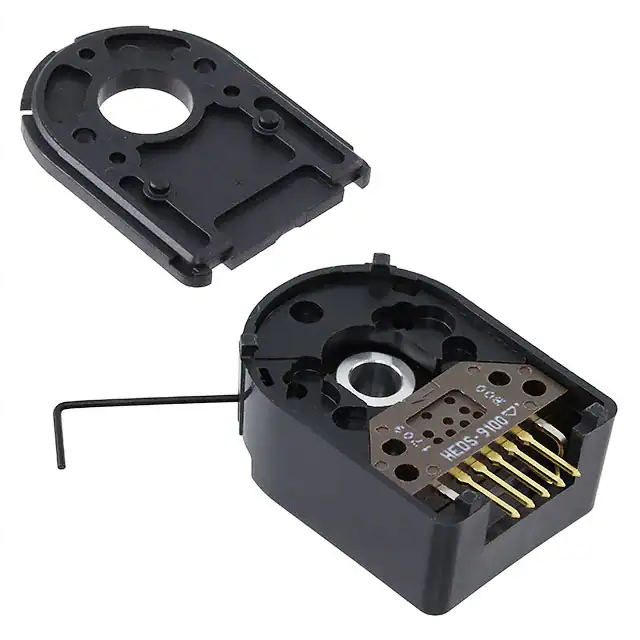

HEDM-5500#B12ROTARY ENCODER OPTICAL 1000PPR |
105 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDM-5600#J06ROTARY ENCODER OPTICAL 1024PPR |
105 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1024 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
AEDR-8600-100IC,2CH,REEL,304LPI,1000PC |
980 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AEDR-8600-102IC,2CH,REEL,304LPI,100PC |
400 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
AR25-AS0125BITS ABS UPTO 60MM SSI/485/ESL |
449 |
|
Datasheet | - | Tray | Active | Not Verified | Absolute | Digital, SSI | - | - | - | No | No | - | - | - | - | - | - |
|
|
AR25-AB0225BITS ABS UPTO 60MM BISS C 1K |
953 |
|
Datasheet | - | Tray | Active | Not Verified | Absolute | BiSS-C | 1000 | - | - | No | No | - | - | - | - | - | - |
|
|
AR25-AB0125BITS ABS UPTO 60MM BISS C 100 |
185 |
|
Datasheet | - | Tray | Active | Not Verified | Absolute | BiSS-C | 100 | - | - | No | No | - | - | - | - | - | - |
Frequently Asked Questions
What are Encoders components used for?
Encoders components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Encoders part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Encoders parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
