Encoders
Explore Encoders parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25LB22-HROTARY ENCODER MECHANICAL 16PPR |
133 |
|
Datasheet | 25L | Bulk | Active | Not Verified | Mechanical | Hexadecimal (Absolute) | 16 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
EM14A0D-C24-L064NROTARY ENCODER OPTICAL 64PPR |
141 |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

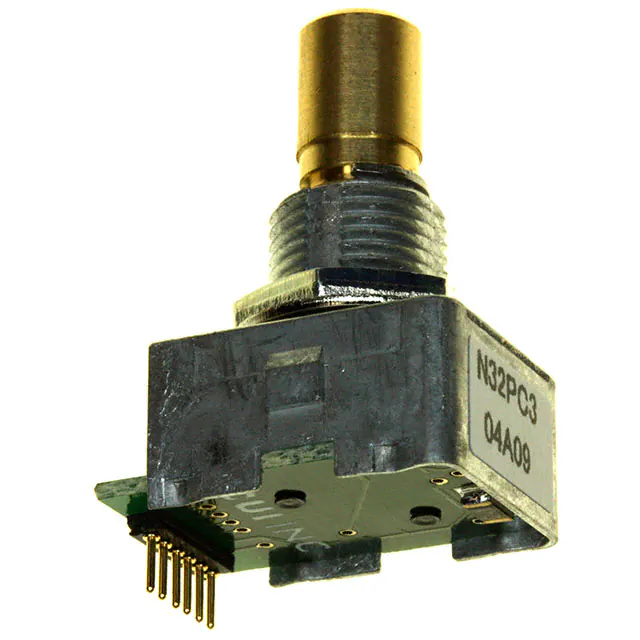

C14N32P-C3ROTARY ENCODER OPTICAL 32PPR |
1,202 |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
HEDR-5420-ES214ROTARY ENCODER OPTICAL 200PPR |
341 |
|
Datasheet | HEDR | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
AEDR-9820-102ENCODER 225LPI, REEL 100PC |
230 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
AMT11A2Q-VKIT, AMT11A2Q, INCREMENTAL ENCOD |
131 |
|
Datasheet | AMT11A | Box | Active | Not Verified | Capacitive, Incremental | Quadrature Line Driver (Incremental) | - | 4.5V ~ 5.5V | - | No | No | Chassis Mount | Right Angle | Connector | - | - | - |
|
HEDS-9100#C00ROTARY ENCODER OPTICAL 100PPR |
363 |
|
Datasheet | HEDS | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

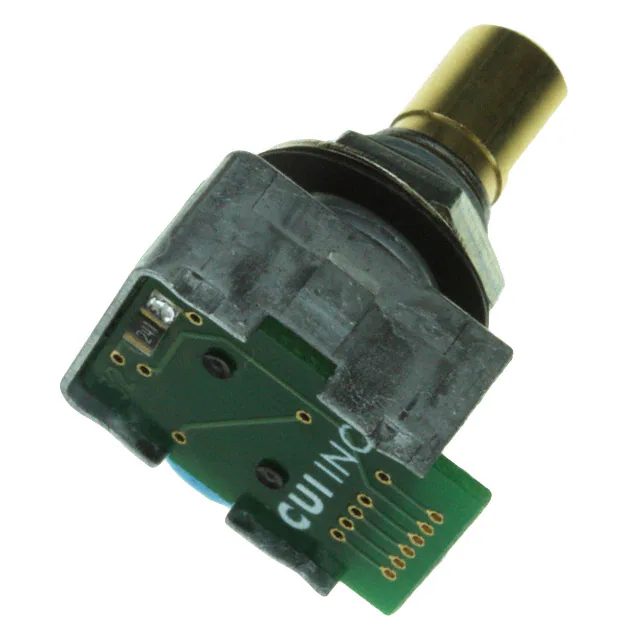

C14D32P-A3AENCODER OPT 32PPR IP65 SLD HOLE |
203 |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
EMS22A50-B28-LS6ROTARY ENCODER MAGNETIC 1024PPR |
698 |
|
Datasheet | - | Tray | Active | Not Verified | Magnetic | Binary (Absolute) | 1024 | 5V | 1/4" Dia Round End | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
|
AMT13A2Q-VKIT, AMT13A2Q-V INCREMENTAL ENCO |
180 |
|
Datasheet | AMT13A | Box | Active | - | Incremental | Quadrature Line Driver (Incremental) | Programmable | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | - | - | - |
|
26GS22-01A16SROTARY ENCODER MECHANICAL 16PPR |
208 |
|
Datasheet | 26 | Bulk | Active | Not Verified | Mechanical | Gray Code (Absolute) | 16 | - | 1/8" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
AMT132Q-VKIT, AMT132Q, INCREMENTAL ENCODE |
422 |
|
Datasheet | AMT13 | Box | Active | - | Incremental | Quadrature Line Driver with Index (Incremental) | Programmable | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | - | - | - |
|
ENA1J-B28-L00064LROTARY ENCODER OPTICAL 64PPR |
4,593 |
|
Datasheet | EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/4" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
71BD36-3119ENCODER MECHANICAL 1/4 IN ADJ |
4,045 |
|
Datasheet | 71 | Bulk | Active | Not Verified | - | - | - | - | Shaft | No | Yes | Panel, PCB Through Hole | User Selectable | Solder Lug | 25K | - | - |
|
|
ENA1P-B28-L00128LROTARY ENCODER OPTICAL 128PPR |
133 |
|
Datasheet | EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
EMS22A50-D28-LT6ROTARY ENCODER MAGNETIC 1024PPR |
1,257 |
|
Datasheet | - | Tray | Active | Not Verified | Magnetic | Binary (Absolute) | 1024 | 5V | 1/8" Dia Round End | No | - | Panel Mount | Vertical | PC Pin | 50M | - | - |
|
EMS22Q51-C28-LS4ROTARY ENCODER MAGNETIC 256PPR |
123 |
|
Datasheet | - | Tray | Active | Not Verified | Magnetic | Quadrature (Incremental) | 256 | 5V | 1/4" Dia Flatted End | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
|
EMS22A30-C28-LS6ROTARY ENCODER MAGNETIC 1024PPR |
3,508 |
|
Datasheet | - | Tray | Active | Not Verified | Magnetic | Binary (Absolute) | 1024 | 3.3V | 1/4" Dia Flatted End | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
|
EMS22A30-C28-MS6ROTARY ENCODER MAGNETIC 1024PPR |
1,568 |
|
Datasheet | - | Bulk | Active | Not Verified | Magnetic | Binary (Absolute) | 1024 | 3.3V | 1/4" Dia Flatted End | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
|
HEDS-5540#I06ROTARY ENCODER OPTICAL 512PPR |
2,471 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 512 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
Frequently Asked Questions
What are Encoders components used for?
Encoders components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Encoders part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Encoders parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
