Encoders
Explore Encoders parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

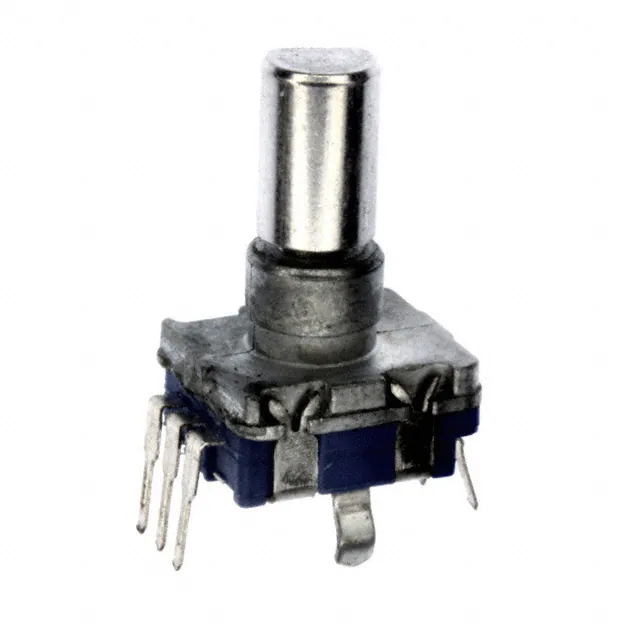

ACZ11BR4E-15FD1-20CROTARY ENCODER INCREMENT 20PPR |
455 |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

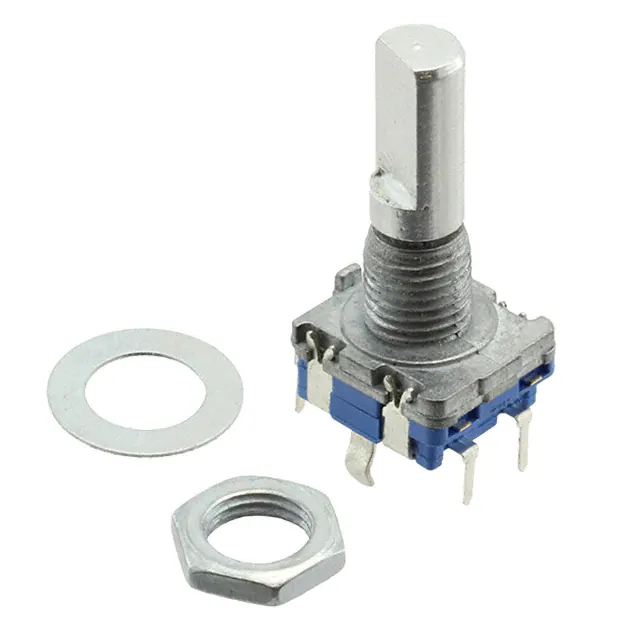

ACZ11BR2E-20FD1-20CZ-0546ROTARY ENCODER INCREMENT 20PPR |
1,939 |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
290VAA5F201A2ROTARY ENCODER MECHANICAL 20PPR |
281 |
|
Datasheet | 290 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
PEC09-2120F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,791 |
|
Datasheet | PEC09 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC11S-9215F-S0015ROTARY ENCODER MECHANICAL 15PPR |
519 |
|
Datasheet | PEC11S | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | SMD (SMT) Tab | 15K | - | - |
|
482016514001MECHANICAL INCREMENTAL ENCODER S |
541 |
|
Datasheet | WS-ENTV | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | - | - | - |
|
|
482020514001MECHANICAL INCREMENTAL ENCODER S |
249 |
|
Datasheet | WS-ENTV | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | - | - | - |
|
ECW1J-C28-BC0024LROTARY ENCODER MECHANICAL 24PPR |
245 |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
288T232R161A2ROTARY ENCODER MECHANICAL 16PPR |
757 |
|
Datasheet | 288 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/4" Dia Round End | Yes | No | Panel Mount | Right Angle | Solder Lug | 50K | - | - |
|
288X232R161B2ROTARY ENCODER MECHANICAL 4PPR |
362 |
|
Datasheet | 288 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 4 | - | 1/4" Dia Round End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 50K | - | - |
|
EC11E18244AUROTARY ENCODER MECHANICAL 18PPR |
729 |
|
Datasheet | EC11 | Tray | Active | - | Mechanical | Quadrature (Incremental) | 18 | 5V | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
288V232R161B2ROTARY ENCODER MECHANICAL 16PPR |
2,314 |
|
Datasheet | 288 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/4" Dia Round End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|
|
EC11E18244A5METAL SHAFT ENCODERS |
1,081 |
|
Datasheet | EC11E | Tray | Active | - | Incremental | Quadrature (Incremental) | 18 | 5V | 4.5mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
EC11E09244AQMETAL SHAFT ENCODERS |
1,037 |
|
Datasheet | EC11E | Tray | Active | - | Incremental | Quadrature (Incremental) | 9 | 5V | 4.5mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
EC11E15244B2ROTARY ENCODER MECHANICAL 15PPR |
937 |
|
Datasheet | EC11 | Tray | Active | - | Mechanical | Quadrature (Incremental) | 15 | 5V | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|

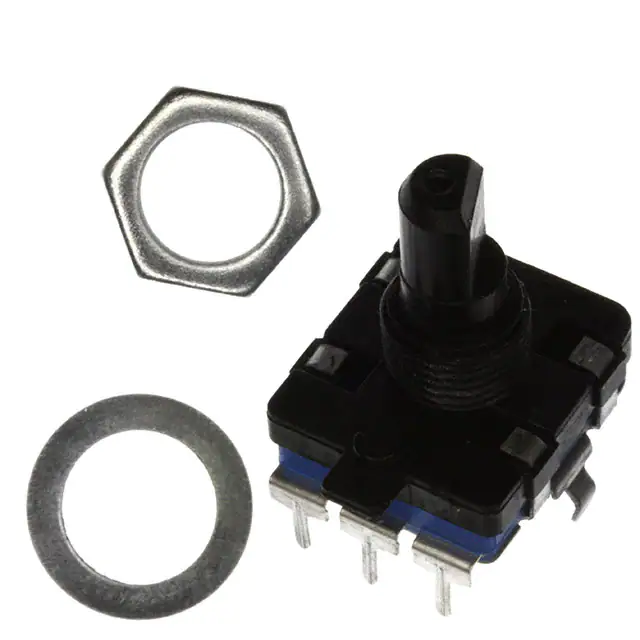

ACZ16NBR1E-15FD1-24CROTARY ENCODER INCREMENT 24PPR |
617 |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
3315C-001-006LROTARY ENCODER MECHANICAL 6PPR |
2,395 |
|
Datasheet | 3315 | Tube | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/8" Dia Slotted End | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
|
EC28A1560401RING TYP ENCODERS |
569 |
|
Datasheet | EC28A | Tray | Active | - | - | - | 15 | 5V | 28mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
ECW0J-B24-AC0006LROTARY ENCODER MECHANICAL 6PPR |
656 |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1J-C24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
279 |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
Frequently Asked Questions
What are Encoders components used for?
Encoders components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Encoders part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Encoders parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
