| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7020-01036-0CURR SENSE XFMR 5A IN-LINE |
2,163 |
|
Datasheet | DMS | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 50:5 | - | - | Free Hanging (In-Line) | 2.701" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
7020-01038-0CURR SENSE XFMR 5A IN-LINE |
4,932 |
|
Datasheet | DMS | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 100:5 | - | - | Free Hanging (In-Line) | 2.701" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
7020-01040-0CURR SENSE XFMR 5A IN-LINE |
1,171 |
|
Datasheet | DMS | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 200:5 | - | - | Free Hanging (In-Line) | 2.701" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
39-3681409CURR SENSE XFMR IN-LINE |
2,059 |
|
Datasheet | DMS | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | 1.560" Dia (39.60mm) | 1.098" (27.90mm) | Wire Leads |
|

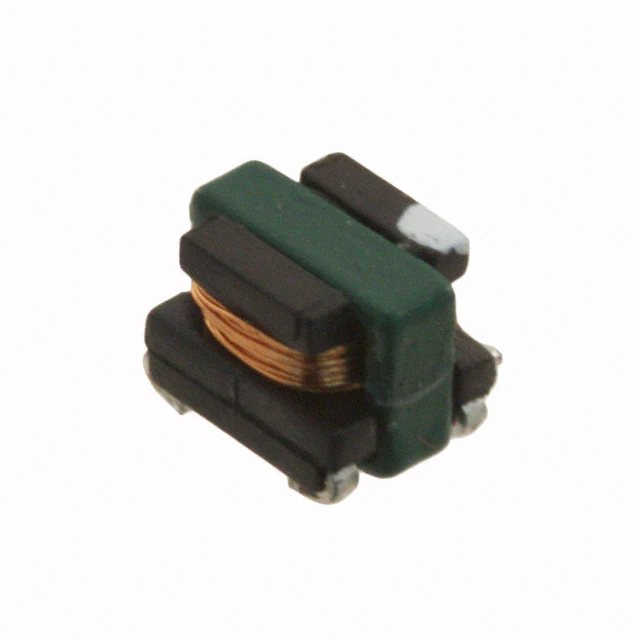

B82801A0214A050CURR SENSE XFMR 1:50 SMD |
1,783 |
|
Datasheet | B82801A | Tape & Reel (TR) | Obsolete | 50kHz ~ 1MHz | Invasive | - | 205 µH | - | 1:50 | - | 2.5mOhm Primary, 2.2Ohm Secondary | - | Surface Mount | 0.138" L x 0.185" W (3.50mm x 4.70mm) | 0.138" (3.50mm) | J Lead |
|
|
B82801A0824A100CURR SENSE XFMR 1:100 SMD |
1,738 |
|
Datasheet | B82801A | Tape & Reel (TR) | Obsolete | 50kHz ~ 1MHz | Invasive | - | 820 µH | - | 1:100 | - | 2.5mOhm Primary, 8.7Ohm Secondary | - | Surface Mount | 0.138" L x 0.185" W (3.50mm x 4.70mm) | 0.138" (3.50mm) | J Lead |
|
|
B82801A0135A125CURR SENSE XFMR 1:125 SMD |
2,341 |
|
Datasheet | B82801A | Tape & Reel (TR) | Obsolete | 50kHz ~ 1MHz | Invasive | - | 1.28 mH | - | 1:125 | - | 2.5mOhm Primary, 13Ohm Secondary | - | Surface Mount | 0.138" L x 0.185" W (3.50mm x 4.70mm) | 0.138" (3.50mm) | J Lead |
|
PE-63618NLCURR SENSE XFMR 20A T/H |
1,490 |
|
Datasheet | THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 20 mH | - | - | 100CT:1 | 100Ohm Primary, 1.4Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-63691NLCURR SENSE XFMR 20A T/H |
3,428 |
|
Datasheet | THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 180 mH | - | - | 300CT:1 | 300Ohm Primary, 11Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-63586NLCURR SENSE XFMR 20A T/H |
3,672 |
|
Datasheet | THT | Tray | Obsolete | 20kHz ~ 200kHz | Invasive | 20 A | 5 mH | - | - | 50:1 | 50Ohm Primary, 700mOhm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
PB0025NLTCURR SENSE XFMR 50:1 35A SMD |
3,077 |
|
Datasheet | PB002XNL | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | 35 A | 1.4 mH | - | 50:1 | - | 0.42mOhm Primary, 700mOhm Secondary | - | Surface Mount | 0.591" L x 0.784" W (15.00mm x 19.91mm) | 0.394" (10.00mm) | Gull Wing |
|
|
B82801A0404A070CURR SENSE XFMR 1:70 7A SMD |
3,369 |
|
Datasheet | B82801A | Tape & Reel (TR) | Obsolete | 50kHz ~ 1MHz | Invasive | 7 A | 400 µH | 20VµS | 1:70 | - | 2.5mOhm Primary, 4.6Ohm Secondary | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
|
P8205CURR SENSE XFMR 1:50 SMD |
2,614 |
|
Datasheet | P820X | Tray | Obsolete | 50kHz ~ 1MHz | Invasive | - | - | - | 1:50 | - | 6mOhm | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | - |
|
|
PB0026CURR SENSE XFMR 100:1 35A SMD |
1,962 |
|
Datasheet | - | Tray | Obsolete | 50kHz ~ 500kHz | Invasive | 35 A | 5.6 mH | - | 100:1 | - | 2.8mOhm Primary, 1.4Ohm Secondary | - | Surface Mount | 0.784" L x 0.570" W (19.91mm x 14.48mm) | 0.394" (10.00mm) | Gull Wing |
|
PB0027CURR SENSE XFMR 200:1 35A SMD |
4,970 |
|
Datasheet | - | Tray | Obsolete | 50kHz ~ 500kHz | Invasive | 35 A | 22.4 mH | - | 200:1 | - | 2.8mOhm Primary, 2.9Ohm Secondary | - | Surface Mount | 0.784" L x 0.570" W (19.91mm x 14.48mm) | 0.394" (10.00mm) | Gull Wing |
|
|
PE-51686CURR SENSE XFMR 20A T/H |
1,964 |
|
Datasheet | - | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 5 mH | - | - | 50:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-51687CURR SENSE XFMR 20A T/H |
1,909 |
|
Datasheet | - | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 20 mH | - | - | 100:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
PE-51688FIXED IND 80MH TH |
2,656 |
|
Datasheet | - | Tray | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | - | 80 mH | - | - | - | - | - | Through Hole | 0.670" L x 0.390" W (17.01mm x 9.90mm) | 0.800" (20.32mm) | PC Pin |
|
|
PE-51718CURR SENSE XFMR 20A T/H |
2,554 |
|
Datasheet | - | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 20 mH | - | - | 100CT:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-51719CURR SENSE XFMR 20A T/H |
3,803 |
|
Datasheet | - | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 80 mH | - | - | 200CT:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
