Current Sense Transformers
Explore Current Sense Transformers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
855-305/200-509CURR SENSE XFMR 200A CHAS MNT |
1,402 |
|
Datasheet | - | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 200 A | - | - | - | - | - | - | Chassis Mount | 2.362" L x 1.378" W (60.00mm x 35.00mm) | 3.173" (80.60mm) | Terminal Block |
|
|
855-305/150-209CURR SENSE XFMR 150A CHAS MNT |
4,216 |
|
Datasheet | - | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 150 A | - | - | - | - | - | - | Chassis Mount | 2.362" L x 1.378" W (60.00mm x 35.00mm) | 3.173" (80.60mm) | Terminal Block |
|
|
855-305/100-209CURR SENSE XFMR 100A CHAS MNT |
3,874 |
|
Datasheet | - | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 100 A | - | - | - | - | - | - | Chassis Mount | 2.362" L x 1.378" W (60.00mm x 35.00mm) | 3.173" (80.60mm) | Terminal Block |
|
2438480000CMA-812-15-5A-7.5VA-0.5 |
1,724 |
|
Datasheet | - | Box | Active | 50Hz | Non-Invasive (Split Core) | 1.5 kA | - | - | - | - | - | - | Chassis Mount | 6.102" L x 2.283" W (154.99mm x 57.99mm) | 7.795" (197.99mm) | Terminal Block |
|
|
855-305/750-509CURR SENSE XFMR 750A CHAS MNT |
3,999 |
|
Datasheet | - | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 750 A | - | - | - | - | - | - | Chassis Mount | 2.362" L x 1.378" W (60.00mm x 35.00mm) | 3.173" (80.60mm) | Terminal Block |
|
|
855-305/600-509CURR SENSE XFMR 600A CHAS MNT |
1,820 |
|
Datasheet | - | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 600 A | - | - | - | - | - | - | Chassis Mount | 2.362" L x 1.378" W (60.00mm x 35.00mm) | 3.173" (80.60mm) | Terminal Block |
|
855-405/600-509CURR SENSE XFMR 600A CHAS MNT |
4,107 |
|
Datasheet | - | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 600 A | - | - | - | - | - | - | Chassis Mount | 2.756" L x 1.378" W (70.00mm x 35.00mm) | 3.589" (91.15mm) | Terminal Block |
|
|
855-405/750-509CURR SENSE XFMR 750A CHAS MNT |
2,072 |
|
Datasheet | - | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 750 A | - | - | - | - | - | - | Chassis Mount | 2.756" L x 1.378" W (70.00mm x 35.00mm) | 3.589" (91.15mm) | Terminal Block |
|
|
2656290000KCMA-RCM-812D |
1,042 |
|
Datasheet | - | Box | Active | 50Hz | Non-Invasive (Split Core) | 18 A | - | - | - | - | - | - | DIN Rail | 6.102" L x 2.283" W (154.99mm x 57.99mm) | 7.795" (197.99mm) | Terminal Block |
|
|
RA 2000-S/SP2TRANSDUCER |
1,994 |
|
Datasheet | RA | Bulk | Active | 20Hz ~ 3kHz | Non-Invasive (Solid Core) | 4 A | - | - | Rogowski Coil | - | - | - | Chassis Mount | 5.512" L x 8.465" W (140.00mm x 215.00mm) | 8.780" (223.00mm) | Terminal Block |
|
|
RA 2000-S/SP4TRANSDUCER |
1,842 |
|
Datasheet | RA | Bulk | Active | 20Hz ~ 3kHz | Non-Invasive (Solid Core) | 4 A | - | - | Rogowski Coil | - | - | - | Chassis Mount | 5.512" L x 8.465" W (140.00mm x 215.00mm) | 8.780" (223.00mm) | Terminal Block |
|
|
RA 2000-S/SP3TRANSDUCER |
2,232 |
|
Datasheet | RA | Bulk | Active | 20Hz ~ 3kHz | Non-Invasive (Solid Core) | 4 A | - | - | Rogowski Coil | - | - | - | Chassis Mount | 5.512" L x 8.465" W (140.00mm x 215.00mm) | 8.780" (223.00mm) | Terminal Block |
|
|
RA 2000-T/SP2TRANSDUCER |
4,634 |
|
Datasheet | RA | Bulk | Active | 20Hz ~ 3kHz | Non-Invasive (Solid Core) | 4 A | - | - | Rogowski Coil | - | - | - | Chassis Mount | 5.512" L x 8.465" W (140.00mm x 215.00mm) | 8.780" (223.00mm) | Terminal Block |
|
7201CURR SENSE XFMR 10A UNI TH |
3,472 |
|
Datasheet | 7200 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | 0.748" L x 0.433" W (19.00mm x 11.00mm) | 0.791" (20.10mm) | - |
|
7202CURR SENSE XFMR 20A UNI TH |
2,460 |
|
Datasheet | 7200 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | 0.748" L x 0.433" W (19.00mm x 11.00mm) | 0.791" (20.10mm) | - |
|
7203CURR SENSE XFMR 35A UNI TH |
4,884 |
|
Datasheet | 7200 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | 0.748" L x 0.433" W (19.00mm x 11.00mm) | 0.791" (20.10mm) | - |
|

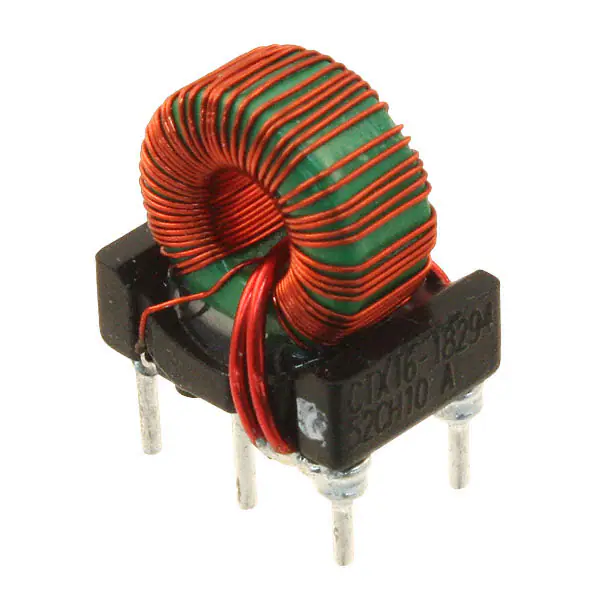

CTX16-18294-RCURR SENSE XFMR T/H |
4,042 |
|
Datasheet | - | Bulk | Active | - | - | - | 8.25 mH | - | - | - | - | - | Through Hole | - | - | PC Pin |
|
55050CCURR SENSE XFMR 1:1:50 15A SMD |
4,557 |
|
Datasheet | 5500 | Tube | Obsolete | 50kHz ~ 500kHz | Invasive | - | 3.8 mH | - | 1:1:50 | - | 2.3mOhm Primary, 350mOhm Secondary | - | Surface Mount | 0.496" L x 0.575" W (12.60mm x 14.60mm) | 0.280" (7.10mm) | - |
|
55100CCURR SENSE XFMR 1:1:100 15A SMD |
1,660 |
|
Datasheet | 5500 | Tube | Obsolete | 50kHz ~ 500kHz | Invasive | - | 14.8 mH | - | 1:1:100 | - | 2.3mOhm Primary, 850mOhm Secondary | - | Surface Mount | 0.496" L x 0.575" W (12.60mm x 14.60mm) | 0.280" (7.10mm) | - |
|
55200CCURR SENSE XFMR 1:1:200 15A SMD |
1,628 |
|
Datasheet | 5500 | Tube | Obsolete | 50kHz ~ 500kHz | Invasive | - | 60 mH | - | 1:1:200 | - | 2.3mOhm Primary, 3.6Ohm Secondary | - | Surface Mount | 0.496" L x 0.575" W (12.60mm x 14.60mm) | 0.280" (7.10mm) | - |
Frequently Asked Questions
What are Current Sense Transformers components used for?
Current Sense Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Current Sense Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Current Sense Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
