Arrays, Signal Transformers
Explore Arrays, Signal Transformers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM3602-15-B-RCINDUCT ARRAY 2 COIL 15UH SMD |
3,688 |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 15 µH | 60 µH | ±20% | 1.45 A | 730 mA | - | - | 63mOhm Max | 250mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
|
PM3602-20-B-RCINDUCT ARRAY 2 COIL 20UH SMD |
4,506 |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 20 µH | 80 µH | ±20% | 1.25 A | 630 mA | - | - | 86mOhm Max | 340mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
|
PM3602-33-B-RCINDUCT ARRAY 2 COIL 33UH SMD |
2,469 |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 33 µH | 132 µH | ±20% | 980 mA | 490 mA | - | - | 140mOhm Max | 560mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
|
PM3602-68-B-RCINDUCT ARRAY 2 COIL 68UH SMD |
1,825 |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 68 µH | 272 µH | ±20% | 720 mA | 360 mA | - | - | 260mOhm Max | 1.04Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
|
PM3602-100-B-RCINDUCT ARRAY 2 COIL 100UH SMD |
4,719 |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 100 µH | 400 µH | ±20% | 580 mA | 290 mA | - | - | 400mOhm Max | 1.6Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
|
PM3602-250-B-RCINDUCT ARRAY 2 COIL 250UH SMD |
1,119 |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 250 µH | 1 mH | ±20% | 330 mA | 170 mA | - | - | 1.19Ohm Max | 4.76Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
|
PM3602-200-B-RCINDUCT ARRAY 2 COIL 200UH SMD |
2,440 |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 200 µH | 800 µH | ±20% | 400 mA | 200 mA | - | - | 840mOhm Max | 3.36Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.452" L x 0.354" W (11.48mm x 8.99mm) | 0.225" (5.72mm) |
|
PM3604-25-B-RCINDUCT ARRAY 2 COIL 25UH SMD |
3,845 |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 25 µH | 100 µH | ±20% | 1.91 A | 960 mA | - | - | 54mOhm Max | 220mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-68-B-RCINDUCT ARRAY 2 COIL 68UH SMD |
2,905 |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 68 µH | 272 µH | ±20% | 1.19 A | 600 mA | - | - | 140mOhm Max | 560mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-100-B-RCINDUCT ARRAY 2 COIL 100UH SMD |
1,989 |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 100 µH | 400 µH | ±20% | 980 mA | 490 mA | - | - | 210mOhm Max | 840mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-150-B-RCINDUCT ARRAY 2 COIL 150UH SMD |
4,232 |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 150 µH | 600 µH | ±20% | 780 mA | 390 mA | - | - | 320mOhm Max | 1.28Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
DRQ73-1R5-RINDUCT ARRAY 2 COIL 1.482UH SMD |
2,192 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.482 µH | 5.928 µH | ±20% | 4.64 A | 2.32 A | 6.52 A | 3.26 A | 13.2mOhm | 52.7mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|

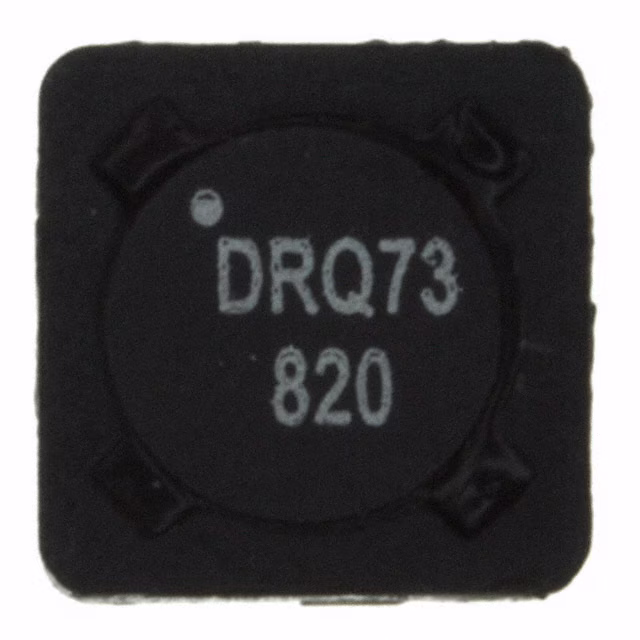

DRQ73-820-RINDUCT ARRAY 2 COIL 80.37UH SMD |
1,265 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 80.37 µH | 321.5 µH | ±20% | 860 mA | 430 mA | 890 mA | 440 mA | 384mOhm | 1.54Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
|
DRQ73-821-RINDUCT ARRAY 2 COIL 821.7UH SMD |
2,749 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 821.7 µH | 3.287 mH | ±20% | 270 mA | 134 mA | 280 mA | 140 mA | 3.93Ohm | 15.72Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
|
DRQ73-8R2-RINDUCT ARRAY 2 COIL 8.93UH SMD |
4,951 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.93 µH | 35.72 µH | ±20% | 2.19 A | 1.1 A | 2.66 A | 1.33 A | 59.2mOhm | 236.8mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
|
SRF1280A-652YINDUCT ARRAY 2 COIL SMD |
3,507 |
|
Datasheet | SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | - | - | - | - | - | - | - | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PM3604-8-BINDUCT ARRAY 2 COIL 8UH SMD |
1,684 |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 8 µH | 32 µH | ±20% | 3 A | 1.5 A | - | - | 24mOhm Max | 96mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-10-BINDUCT ARRAY 2 COIL 10UH SMD |
4,899 |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 10 µH | 40 µH | ±20% | 2.7 A | 1.35 A | - | - | 28mOhm Max | 110mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-33-BINDUCT ARRAY 2 COIL 33UH SMD |
2,444 |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 33 µH | 132 µH | ±20% | 1.6 A | 800 mA | - | - | 78mOhm Max | 310mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-68-BINDUCT ARRAY 2 COIL 68UH SMD |
4,523 |
|
Datasheet | PM3600 | Nonstandard | Bulk | Obsolete | 2 | 68 µH | 272 µH | ±20% | 1.19 A | 600 mA | - | - | 140mOhm Max | 560mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
Frequently Asked Questions
What are Arrays, Signal Transformers components used for?
Arrays, Signal Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Arrays, Signal Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Arrays, Signal Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
