Arrays, Signal Transformers
Explore Arrays, Signal Transformers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF0552.822NLINDUCT ARRAY 2 COIL 8.1UH SMD |
4,712 |
|
Datasheet | PF0552NL | Nonstandard | Tray | Active | 2 | 8.1 µH | 32 µH | ±20% | 6.5 A | 3.3 A | 7.8 A | 3.9 A | 18mOhm Max | 66mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
P0183NLINDUCT ARRAY 2 COIL 91UH SMD |
1,953 |
|
Datasheet | Polecat | Nonstandard | Tube | Active | 2 | 91 µH | 364 µH | ±10% | 1.2 A | 640 mA | - | - | 324mOhm Max | 1.272Ohm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
DJ-503INDUCT ARRAY 2 COIL 25UH T/H |
2,694 |
|
Datasheet | DJ | Radial | Tray | Active | 2 | 25 µH | 100 µH | ±15% | 6 A | 3 A | - | - | 13mOhm Max | 52mOhm Max | Unshielded | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.531" W (26.50mm x 13.50mm) | 1.161" (29.50mm) |
|
|
HM78D-1210100MLFTRINDUCT ARRAY 2 COIL 10UH SMD |
1,803 |
|
Datasheet | HM78D | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | 2 | 10 µH | 41.12 µH | ±20% | 3.2 A | 1.6 A | 11.75 A | 5.85 A | 20mOhm Max | 80mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
P0177NLINDUCT ARRAY 2 COIL 10.4UH SMD |
4,714 |
|
Datasheet | Polecat | Nonstandard | Tube | Active | 2 | 10.4 µH | 41.7 µH | ±10% | 3.8 A | 1.89 A | - | - | 29.8mOhm Max | 120mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
CTCTXF33-2P32.67 UH 20% SMD TOROID CMC |
3,652 |
|
Datasheet | CTCTXF-2P | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | 2 | 32.67 µH | 130.7 µH | ±20% | 1.3 A | 650 mA | - | - | 126mOhm Max | 503mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.449" L x 0.449" W (11.40mm x 11.40mm) | 0.272" (6.90mm) |
|

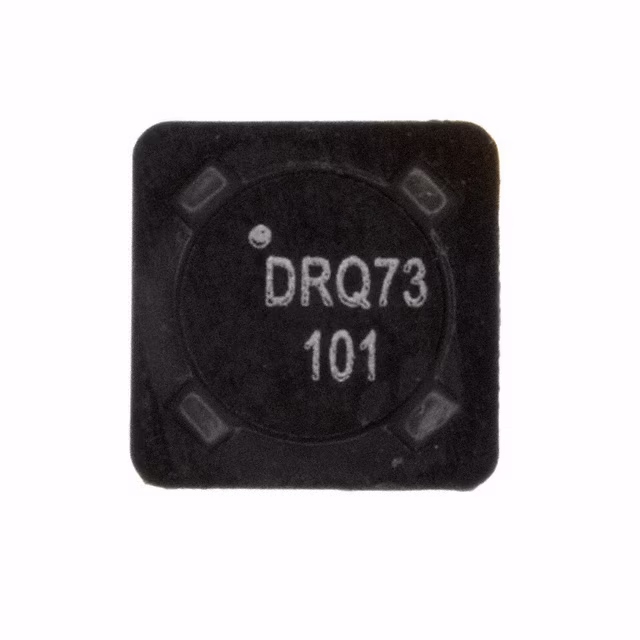

DRQ73-101-RINDUCT ARRAY 2 COIL 101.4UH SMD |
4,681 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 101.4 µH | 405.6 µH | ±20% | 730 mA | 367 mA | 790 mA | 390 mA | 527mOhm | 2.11Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SRF1280-6R8YINDUCT ARRAY 2 COIL 6.8UH SMD |
4,265 |
|
Datasheet | SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.8 µH | 27.2 µH | ±30% | 7.34 A | 3.67 A | 13.3 A | 6.67 A | 18.3mOhm Max | 65.6mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
7448709100INDUCT ARRAY 2 COIL 10UH SMD |
2,149 |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 5 µH | 20 µH | ±20% | 3.2 A | 1.6 A | 8 A | 4 A | 40mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
PF0553.223NLINDUCT ARRAY 2 COIL 23UH SMD |
3,120 |
|
Datasheet | PF0553NL | Nonstandard | Tray | Active | 2 | 23 µH | 92 µH | ±20% | 3.9 A | 2 A | 7.6 A | 3.8 A | 39mOhm Max | 160mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.343" (8.71mm) |
|
SRF1260-330MINDUCT ARRAY 2 COIL 33UH SMD |
2,280 |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | 132 µH | ±20% | 3.28 A | 1.64 A | 3.84 A | 1.92 A | 61.8mOhm Max | 256mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
PM3604-10-RCINDUCT ARRAY 2 COIL 10UH SMD |
1,608 |
|
Datasheet | PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±20% | 2.7 A | 1.35 A | - | - | 28mOhm Max | 110mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
SRF1280A-1R5YINDUCT ARRAY 2 COIL 1.5UH SMD |
4,198 |
|
Datasheet | SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.5 µH | 6 µH | ±30% | 13.5 A | 6.77 A | 31.1 A | 15.6 A | 7.6mOhm Max | 30.6mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
IHCL4040DZER4R7M5AINDUCT ARRAY 2 COIL 4.7UH SMD |
3,167 |
|
Datasheet | IHCL | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | ±20% | - | - | - | - | - | - | Shielded | AEC-Q200 | -55°C ~ 155°C | Surface Mount | 0.420" L x 0.400" W (10.67mm x 10.16mm) | 0.157" (4.00mm) |
|
SDQ12-6R2-RINDUCT ARRAY 2 COIL 6.25UH SMD |
2,242 |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.25 µH | 25 µH | ±20% | 1.02 A | 512 mA | 1.22 A | 608 mA | 238.7mOhm | 954.8mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.19mm) |
|
SDQ25-101-RINDUCT ARRAY 2 COIL 98.57UH SMD |
4,711 |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 98.57 µH | 394.3 µH | ±20% | 499 mA | 249 mA | 405 mA | 203 mA | 1Ohm | 4.02Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
CTX50-4A-RINDUCT ARRAY 2 COIL 50.11UH SMD |
3,826 |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 50.11 µH | 200.4 µH | ±25% | 2.05 A | 1.03 A | 1.88 A | 940 mA | 104mOhm Max | 418mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

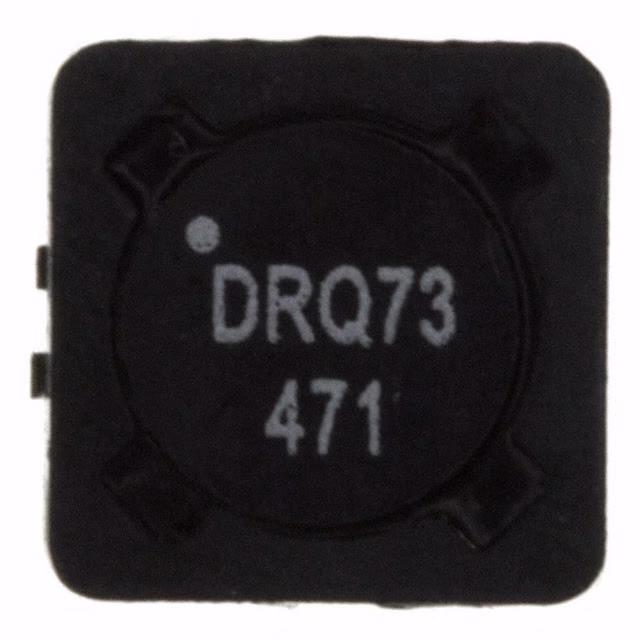

DRQ73-471-RINDUCT ARRAY 2 COIL 465.8UH SMD |
4,001 |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 465.8 µH | 1.863 mH | ±20% | 350 mA | 173 mA | 370 mA | 180 mA | 2.36Ohm | 9.44Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SRF0703A-8R2MINDUCT ARRAY 2 COIL 8.2UH SMD |
2,965 |
|
Datasheet | SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.2 µH | 34.1 µH | ±20% | 2.19 A | 1.1 A | 2.66 A | 1.33 A | 77.2mOhm Max | 306mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703A-680MINDUCT ARRAY 2 COIL 68UH SMD |
3,526 |
|
Datasheet | SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 289.3 µH | ±20% | 890 mA | 444 mA | 960 mA | 480 mA | 507mOhm Max | 1.92Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
Frequently Asked Questions
What are Arrays, Signal Transformers components used for?
Arrays, Signal Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Arrays, Signal Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Arrays, Signal Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
