Single Zener Diodes
Explore Single Zener Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDLL4487/TRDIODE ZENER 82V 1.5W DO213AB |
9,941 |
|
Datasheet | - | DO-213AB, MELF | Tape & Reel (TR) | Active | 82 V | ±5% | 1.5 W | 160 Ohms | 250 nA @ 65.6 V | 1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | DO-213AB |
|
JANTX1N4479DIODE ZENER 39V 1.5W DO204AL |
7,926 |
|
Datasheet | - | DO-204AL, DO-41, Axial | Bulk | Active | 39 V | ±5% | 1.5 W | 30 Ohms | 50 nA @ 31.2 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/406 | Through Hole | DO-204AL (DO-41) |
|
JAN1N4970US/TRDIODE ZENER 33V 5W E-MELF |
7,808 |
|
Datasheet | - | SQ-MELF, E | Tape & Reel (TR) | Active | 33 V | ±5% | 5 W | 10 Ohms | 2 µA @ 25.1 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/356 | Surface Mount | E-MELF |
|
|
JAN1N4968US/TRDIODE ZENER 27V 5W E-MELF |
5,263 |
|
Datasheet | - | SQ-MELF, E | Tape & Reel (TR) | Active | 27 V | ±5% | 5 W | 6 Ohms | 2 µA @ 20.6 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/356 | Surface Mount | E-MELF |
|
|
JAN1N4967US/TRDIODE ZENER 24V 5W E-MELF |
8,893 |
|
Datasheet | - | SQ-MELF, E | Tape & Reel (TR) | Active | 24 V | ±5% | 5 W | 5 Ohms | 2 µA @ 18.2 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/356 | Surface Mount | E-MELF |
|

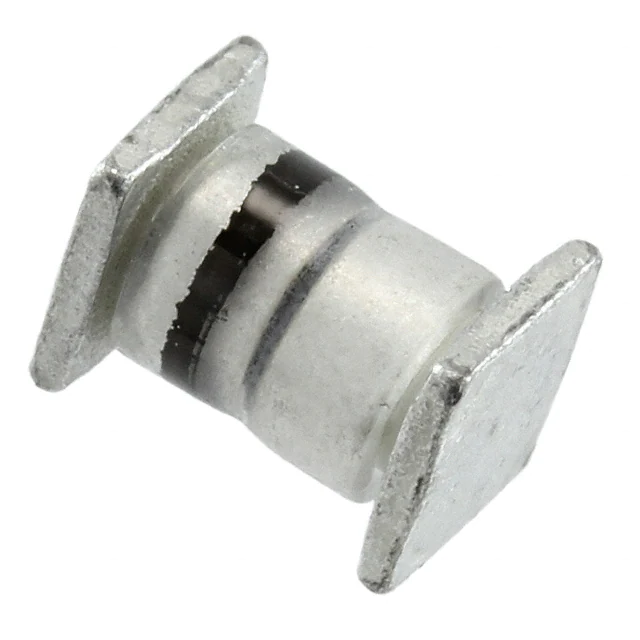

1N4976USDIODE ZENER 56V 5W D5B |
2,676 |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | 56 V | ±5% | 5 W | 35 Ohms | 2 µA @ 42.6 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5B |
|
JAN1N4618C-1DIODE ZENER 2.7V 500MW DO204AH |
8,701 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | 2.7 V | ±2% | 500 mW | 1500 Ohms | 500 nA @ 1 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/435 | Through Hole | DO-204AH (DO-35) |
|
|
1N4472DIODE ZENER 20V 1.5W DO41 |
9,479 |
|
Datasheet | - | DO-204AL, DO-41, Axial | Bulk | Active | 20 V | ±5% | 1.5 W | 12 Ohms | 50 nA @ 16 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
|
|
CDLL4572ADIODE ZENER 500MW DO213AA |
3,294 |
|
Datasheet | - | DO-213AA | Bulk | Active | - | - | 500 mW | 100 Ohms | 2 µA @ 3 V | - | -55°C ~ 100°C | - | - | Surface Mount | DO-213AA |
|
1N4471/TRDIODE ZENER 18V 1.5W DO41 |
2,030 |
|
Datasheet | - | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Active | 18 V | ±5% | 1.5 W | 11 Ohms | 50 nA @ 14.4 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
|
1N4971USE3DIODE ZENER 36V 5W D5B |
6,270 |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | 36 V | ±5% | 5 W | 11 Ohms | 2 µA @ 27.4 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | D-5B |
|
JANTXV1N4567A-1/TRDIODE ZENER 6.4V 500MW DO204AH |
7,260 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | 6.4 V | ±5% | 500 mW | 200 Ohms | 2 µA @ 3 V | - | -65°C ~ 175°C | Military | MIL-PRF-19500/452 | Through Hole | DO-204AH (DO-35) |
|
|
JANTXV1N979D-1DIODE ZENER 56V 500MW DO204AH |
7,492 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | 56 V | ±1% | 500 mW | 150 Ohms | 500 nA @ 43 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/117 | Through Hole | DO-204AH (DO-35) |
|
|
JANTXV1N980D-1DIODE ZENER 62V 500MW DO204AH |
5,680 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | 62 V | ±1% | 500 mW | 185 Ohms | 500 nA @ 47 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/117 | Through Hole | DO-204AH (DO-35) |
|
|
JANTXV1N981D-1DIODE ZENER 68V 500MW DO204AH |
3,926 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | 68 V | ±1% | 500 mW | 230 Ohms | 500 nA @ 52 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/117 | Through Hole | DO-204AH (DO-35) |
|
|
JANTXV1N982D-1DIODE ZENER 75V 500MW DO204AH |
8,589 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | 75 V | ±1% | 500 mW | 270 Ohms | 500 nA @ 56 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/117 | Through Hole | DO-204AH (DO-35) |
|
|
JANTXV1N983D-1DIODE ZENER 82V 500MW DO204AH |
5,167 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | 82 V | ±1% | 500 mW | 330 Ohms | 500 nA @ 62 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/117 | Through Hole | DO-204AH (DO-35) |
|
|
JANTXV1N984D-1DIODE ZENER 91V 500MW DO204AH |
6,067 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | 91 V | ±1% | 500 mW | 400 Ohms | 500 nA @ 69 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/117 | Through Hole | DO-204AH (DO-35) |
|
|
JANTXV1N985D-1DIODE ZENER 100V 500MW DO204AH |
4,836 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | 100 V | ±1% | 500 mW | 500 Ohms | 500 nA @ 76 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/117 | Through Hole | DO-204AH (DO-35) |
|
|
JANTXV1N986D-1DIODE ZENER 110V 500MW DO204AH |
3,979 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | 110 V | ±1% | 500 mW | 750 Ohms | 500 nA @ 84 V | 1.3 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/117 | Through Hole | DO-204AH (DO-35) |
Frequently Asked Questions
What are Single Zener Diodes components used for?
Single Zener Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Zener Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Zener Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
