Single Zener Diodes
Review Single Zener Diodes Zener components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAZ40390MFDIODE ZENER 3.9V 370MW DO34 |
9,563 |
|
Datasheet | - | DO-204AG, DO-34, Axial | Tape & Box (TB) | Obsolete | 3.9 V | ±5% | 370 mW | 100 Ohms | 10 µA @ 1 V | 900 mV @ 10 mA | - | - | - | Through Hole | DO34-A2 |
|
MAZ40510MFDIODE ZENER 5.1V 370MW DO34 |
2,741 |
|
Datasheet | - | DO-204AG, DO-34, Axial | Tape & Box (TB) | Obsolete | 5.1 V | ±6% | 370 mW | 60 Ohms | 2 µA @ 2 V | 900 mV @ 10 mA | - | - | - | Through Hole | DO34-A2 |
|
MAZ40560MFDIODE ZENER 5.6V 370MW DO34 |
7,018 |
|
Datasheet | - | DO-204AG, DO-34, Axial | Cut Tape (CT) | Obsolete | 5.6 V | ±6% | 370 mW | 40 Ohms | 1 µA @ 2 V | 900 mV @ 10 mA | - | - | - | Through Hole | DO34-A2 |
|

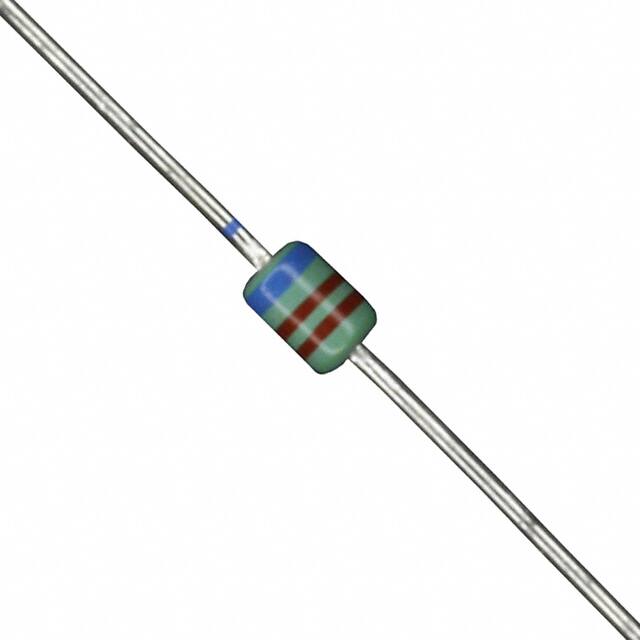

MAZ40620MFDIODE ZENER 6.2V 370MW DO34 |
8,866 |
|
Datasheet | - | DO-204AG, DO-34, Axial | Tape & Box (TB) | Obsolete | 6.2 V | ±6% | 370 mW | 20 Ohms | 3 µA @ 4 V | 900 mV @ 10 mA | - | - | - | Through Hole | DO34-A2 |
|
MAZ40750MFDIODE ZENER 7.5V 370MW DO34 |
5,276 |
|
Datasheet | - | DO-204AG, DO-34, Axial | Tape & Box (TB) | Obsolete | 7.5 V | ±6% | 370 mW | 15 Ohms | 1 µA @ 5 V | 900 mV @ 10 mA | - | - | - | Through Hole | DO34-A2 |
|
MAZ408200FDIODE ZENER 8.2V 370MW DO34 |
5,783 |
|
Datasheet | - | DO-204AG, DO-34, Axial | Tape & Box (TB) | Obsolete | 8.2 V | ±6% | 370 mW | 15 Ohms | 500 nA @ 5 V | 900 mV @ 10 mA | - | - | - | Through Hole | DO34-A2 |
|
MAZ41100MFDIODE ZENER 11V 370MW DO34 |
3,090 |
|
Datasheet | - | DO-204AG, DO-34, Axial | Cut Tape (CT) | Obsolete | 11 V | ±5% | 370 mW | 20 Ohms | 100 nA @ 7 V | 900 mV @ 10 mA | - | - | - | Through Hole | DO34-A2 |
|
MAZ41300MFDIODE ZENER 13V 370MW DO34 |
4,099 |
|
Datasheet | - | DO-204AG, DO-34, Axial | Tape & Box (TB) | Obsolete | 13 V | ±6% | 370 mW | 30 Ohms | 100 nA @ 9 V | 900 mV @ 10 mA | - | - | - | Through Hole | DO34-A2 |
|

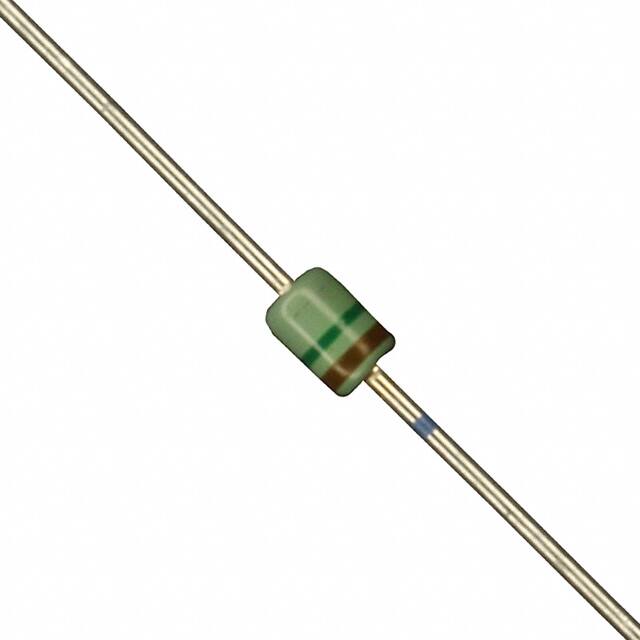

MAZ41500MFDIODE ZENER 15V 370MW DO34 |
9,225 |
|
Datasheet | - | DO-204AG, DO-34, Axial | Tape & Box (TB) | Obsolete | 15 V | ±6% | 370 mW | 30 Ohms | 50 nA @ 10 V | 900 mV @ 10 mA | - | - | - | Through Hole | DO34-A2 |
|
MAZ41600MFDIODE ZENER 16V 370MW DO34 |
7,827 |
|
Datasheet | - | DO-204AG, DO-34, Axial | Cut Tape (CT) | Obsolete | 16 V | ±6% | 370 mW | 40 Ohms | 50 nA @ 11 V | 900 mV @ 10 mA | - | - | - | Through Hole | DO34-A2 |
Frequently Asked Questions
What are Single Zener Diodes components used for?
Single Zener Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Zener Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Zener Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
