Single Zener Diodes
Review Single Zener Diodes Zener components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N4571ADIODE ZENER 6.4V 500MW DO204AH |
96 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | 6.4 V | ±5% | 500 mW | 100 Ohms | 2 µA @ 3 V | - | -65°C ~ 175°C | - | - | Through Hole | DO-204AH (DO-35) |
|
JANTX1N4469DIODE ZENER 15V 1.5W DO204AL |
52 |
|
Datasheet | - | DO-204AL, DO-41, Axial | Bulk | Active | 15 V | ±5% | 1.5 W | 9 Ohms | 50 nA @ 12 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/406 | Through Hole | DO-204AL (DO-41) |
|
MNS1N4105UR-1/TRDIODE ZENER 11V 500MW DO213AA |
35 |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | 11 V | ±5% | 500 mW | 200 Ohms | 50 nA @ 8.5 V | 1.1 V @ 200 mA | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/435 | Surface Mount | DO-213AA |
|
|
JAN1N4965US/TRDIODE ZENER 20V 5W D5B |
65 |
|
Datasheet | - | SQ-MELF, E | Tape & Reel (TR) | Active | 20 V | ±5% | 5 W | 4.5 Ohms | 2 µA @ 15.2 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/356 | Surface Mount | D-5B |
|

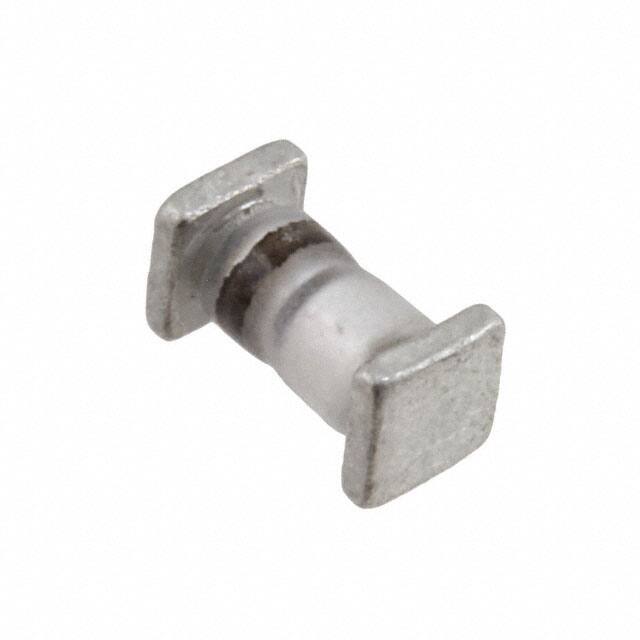

1N4468USDIODE ZENER 13V 1.5W D5A |
43 |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | 13 V | ±5% | 1.5 W | 8 Ohms | 50 nA @ 10.4 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5A |
|
1N936ADIODE ZENER 9V 500MW DO204AH |
21 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | 9 V | - | 500 mW | 20 Ohms | 10 µA @ 6 V | - | -65°C ~ 175°C | - | - | Through Hole | DO-204AH (DO-35) |
|
1N6490USDIODE ZENER 5.1V 1.5W D5A |
66 |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | 5.1 V | ±5% | 1.5 W | 7 Ohms | 1 µA @ 1 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5A |
|
|
1N829DIODE ZENER 6.2V 500MW DO204AH |
55 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | 6.2 V | ±5% | 500 mW | 15 Ohms | 2 µA @ 3 V | - | -55°C ~ 175°C | - | - | Through Hole | DO-204AH (DO-35) |
|
|
1N6324USDIODE ZENER 10V 500MW SQ-MELF |
68 |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | 10 V | ±5% | 500 mW | 6 Ohms | 1 µA @ 8 V | 1.4 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | B, SQ-MELF |
|
|
1N4582ADIODE ZENER 6.4V 500MW DO204AH |
49 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | 6.4 V | ±5% | 500 mW | 25 Ohms | 2 µA @ 3 V | - | -65°C ~ 175°C | - | - | Through Hole | DO-204AH (DO-35) |
Frequently Asked Questions
What are Single Zener Diodes components used for?
Single Zener Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Zener Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Zener Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
