Single Zener Diodes
Review Single Zener Diodes Zener components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ4745AQ-TPDIODE ZENER 16V 1W DO214AC |
15,000 |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | 16 V | ±5% | 1 W | 16 Ohms | 5 µA @ 12.2 V | 1.2 V @ 100 mA | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ4751AQ-TPDIODE ZENER 30V 1W DO214AC |
14,965 |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | 30 V | ±5% | 1 W | 40 Ohms | 5 µA @ 22.8 V | 1.2 V @ 100 mA | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ4747AQ-TPDIODE ZENER 20V 1W DO214AC |
7,500 |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | 20 V | ±5% | 1 W | 22 Ohms | 5 µA @ 15.2 V | 1.2 V @ 100 mA | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ4753AQ-TPDIODE ZENER 36V 1W DO214AC |
3,500 |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | 36 V | ±5% | 1 W | 50 Ohms | 5 µA @ 27.4 V | 1.2 V @ 100 mA | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
.jpg "1N4745-TP")
|
1N4745-TPDIODE ZENER 16V 1W DO41G |
40,000 |
|
Datasheet | - | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Discontinued at Digi-Key | 16 V | ±10% | 1 W | 16 Ohms | 5 µA @ 12.2 V | 1.2 V @ 200 mA | -65°C ~ 200°C | - | - | Through Hole | DO-41G |
|
1N6011B-TPDIODE ZENER 30V 500MW DO35 |
10,000 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Obsolete | 30 V | ±5% | 500 mW | 78 Ohms | 100 nA @ 23 V | 1.5 V @ 100 mA | -65°C ~ 200°C | - | - | Through Hole | DO-35 |
|
DL5238B-TPDIODE ZENER 8.7V 500MW MINI MELF |
2,500 |
|
Datasheet | - | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 8.7 V | ±5% | 500 mW | 8 Ohms | 3 µA @ 6.5 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|

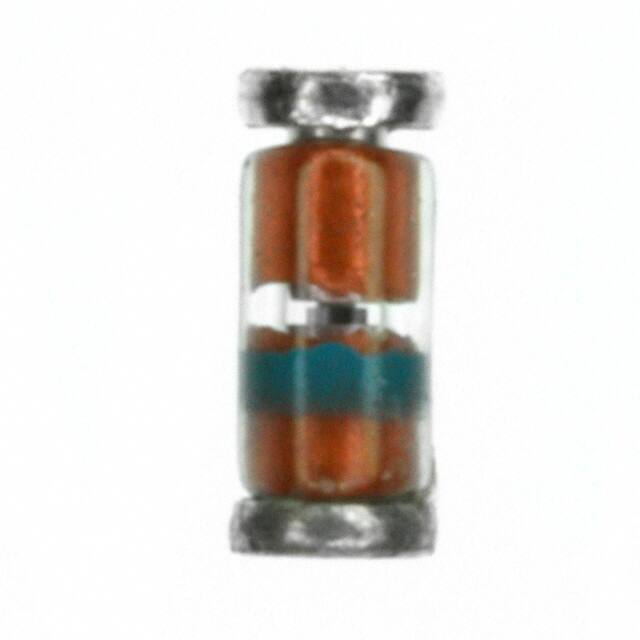

DL5251B-TPDIODE ZENER 22V 500MW MINI MELF |
2,500 |
|
Datasheet | - | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 22 V | ±5% | 500 mW | 29 Ohms | 100 nA @ 17 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5256B-TPDIODE ZENER 30V 500MW MINI MELF |
2,500 |
|
Datasheet | - | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 30 V | ±5% | 500 mW | 49 Ohms | 100 nA @ 23 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
MMSZ4705-TPDIODE ZENER 18V 500MW SOD123 |
2,952 |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | 18 V | ±5% | 500 mW | - | 50 nA @ 13.6 V | 950 mV @ 10 mA | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123 |
Frequently Asked Questions
What are Single Zener Diodes components used for?
Single Zener Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Zener Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Zener Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
