Wireless Charging Coils
Review Wireless Charging Coils Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WT505090-10F2-LP-G1TX 1 COIL, 1 LYR 6.3UH |
115 |
|
Datasheet | WT | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 60mOhm | - | - | - | - | - | 2.02" Dia x 0.13" H (51.4mm x 3.4mm) |
|
WR383245-17F5-GRX 1 COIL, 1 LYR 13.9UH |
286 |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 13.9µH | - | 310mOhm | 28 @ 100kHz | - | - | - | - | 1.51" L x 1.27" W x 0.03" H (38.4mm x 32.3mm x 0.9mm) |
|
WT545490-11K2-FSTX 1 COIL 2 LYR 8.9UH |
136 |
|
Datasheet | WT | Tray | Not For New Designs | Transmitter | 1 Coil, 2 Layer | 8.9µH | - | 60mOhm | 104 @ 100kHz | - | - | - | - | 2.13" L x 2.13" W x 0.13" H (54.0mm x 54.0mm x 3.3mm) |
|
WT282890-16F2-GTX 1 COIL 2 LYR 7.4UH |
139 |
|
Datasheet | WT | Tray | Active | Transmitter | 1 Coil, 2 Layer | 7.4µH | - | 110mOhm | - | - | - | - | - | 1.12" Dia x 0.10" H (28.4mm x 2.4mm) |
|

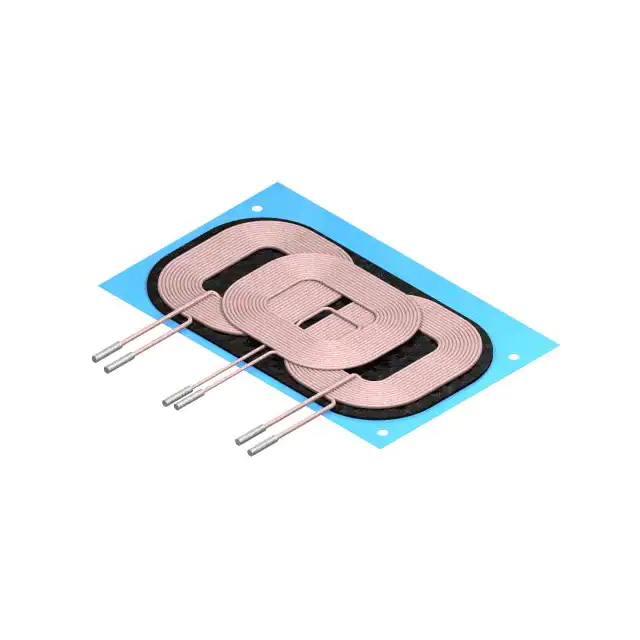

WT1005690-12F2-A6-G1TX COIL UNIT |
148 |
|
Datasheet | WT | Box | Active | - | - | - | - | - | - | - | - | - | - | - |
|
WT1005690-12K2-A6-GTX 3 COIL 1 LAYER 11.5 - 12.5UH |
103 |
|
Datasheet | WT | Tray | Not For New Designs | Transmitter | 3 Coil, 1 Layer | 11.5 ~ 12.5µH | - | 80mOhm | - | - | - | - | - | 3.94" L x 2.20" W x 0.19" H (100.0mm x 56mm x 4.8mm) |
|
WR464650-10K2-FS3RX 1 COIL, 1 LYR 7.3UH |
133 |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 7.3µH | - | 70mOhm | - | - | - | - | - | 1.81" L x 1.81" W x 0.12" H (46.0mm x 46.0mm x 3.0mm) |
|
WR444025-17M6-GRX 1 COIL, 1 LYR 16.7UH |
237 |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 16.7µH | - | 650mOhm | - | - | - | - | - | 1.71" L x 1.56" W x 0.02" H (43.5mm x 39.5mm x 0.5mm) |
|
WR222230-26M8-GRX 1 COIL 2 LYR 27UH |
4,471 |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 27µH | - | 1.1Ohm Max | - | - | - | - | - | 0.87" Dia x 0.03" H (22.0mm x 0.9mm) |
|
WR111180-36F5-B1RX 1 COIL 2 LYR 16.6UH |
3,226 |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 16.6µH | - | 1Ohm | - | - | - | - | - | 0.43" Dia x 0.06" H (11.0mm x 1.5mm) |
Frequently Asked Questions
What are Wireless Charging Coils components used for?
Wireless Charging Coils components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Wireless Charging Coils part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Wireless Charging Coils parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
