TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XBP06V4E4GR-GTVS DIODE 5VWM 4USP |
100 |
|
Datasheet | 4-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V | 6.4V | - | - | 70W | No | General Purpose | 40pF @ 1MHz | - | - | - | Surface Mount | 4-USP (1.2x1.6) |
|
SMCJ440CA/TR7SMCJ, DO-214AB, 440V, 713V, REEL |
500 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 440V | 492V | 713V | 2.1A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
1.5KE6.8ATVS DIODE 5.8VWM 10.5VC DO201AD |
932 |
|
Datasheet | DO-201AD, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.8V | 6.45V | 10.5V | 143A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AD |
|
|
SMCJ18A/TR7SMCJ, DO-204AB, 18V, 29.2V, REEL |
495 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 29.2V | 51.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|

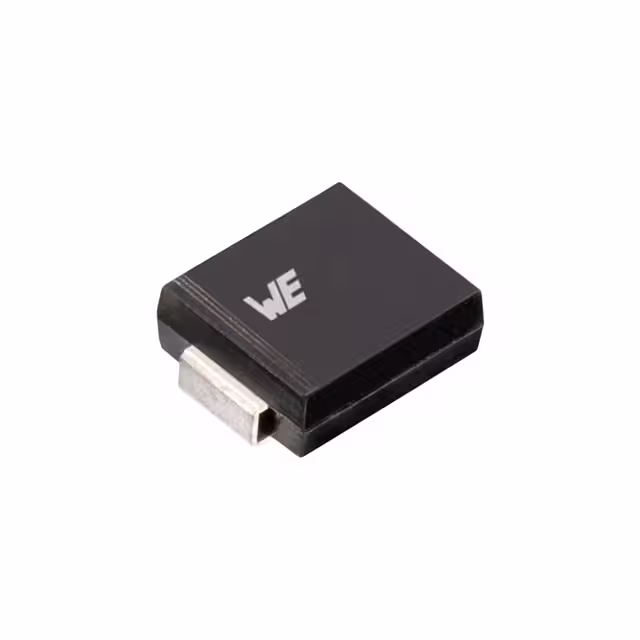

824541481POWER TVS DIODE SIZE DO-214AB; B |
473 |
|
Datasheet | DO-214AB, SMC | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 48V (Max) | 56.1V (Typ) | 77.4V | 19.4A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TA) | - | - | Surface Mount | DO-214AB |
|
P6KE300CATVS DO15 256V 600W BIDIR |
2,240 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 2 | 256V | 285V | 414V | 1.45A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
1.5SMBJ33CA-HDIO TVS VRWM 33V 1500W BIDIR SMB |
1,363 |
|
Datasheet | DO-214AA, SMB | 1.5SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 28.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
1.5SMBJ20A-HDIO TVS VRWM 20V 1500W UNIDIR SM |
1,249 |
|
Datasheet | DO-214AA, SMB | 1.5SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 46.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
1.5SMBJ20CA-HDIO TVS VRWM 20V 1500W BIDIR SMB |
1,193 |
|
Datasheet | DO-214AA, SMB | 1.5SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 46.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
1.5SMBJ51A-HDIO TVS VRWM 51V 1500W UNIDIR SM |
1,147 |
|
Datasheet | DO-214AA, SMB | 1.5SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 18.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
1.5SMBJ17CA-HDIO TVS VRWM 17V 1500W BIDIR SMB |
482 |
|
Datasheet | DO-214AA, SMB | 1.5SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 17V | 18.9V | 27.6V | 54.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
1.5SMBJ60A-HDIO TVS VRWM 60V 1500W UNIDIR SM |
450 |
|
Datasheet | DO-214AA, SMB | 1.5SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 66.7V | 96.8V | 15.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
1.5SMBJ12CA-HDIO TVS VRWM 12V 1500W BIDIR SMB |
273 |
|
Datasheet | DO-214AA, SMB | 1.5SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 75.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
1.5KE100CA-BTVS DIODE 85.5VWM 137VC DO201 |
500 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE | Bulk | Active | Zener | - | 1 | 85.5V | 95V | 137V | 11.1A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
1V5KE39CATVS DIODE 33.3VWM 53.9VC DO201AD |
943 |
|
Datasheet | DO-201AD, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 33.3V | 37.1V | 53.9V | 28A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AD |
|
|
1V5KE100CATVS DIODE 85.5VWM 137VC DO201AD |
648 |
|
Datasheet | DO-201AD, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 85.5V | 95V | 137V | 11A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AD |
|
MG042L18V500DPMULTIGUARD |
990 |
|
Datasheet | 0405 (1012 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 2 | 18V | 25.2V | 50V | 15A | - | No | General Purpose | 40pF @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 0405 |
|
LCE14ATVS DIODE 14VWM 23.2VC DO201 |
885 |
|
Datasheet | DO-201AA, DO-27, Axial | LCE | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 65A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
|
LCE45ATVS DIODE 45VWM 72.7VC DO201 |
594 |
|
Datasheet | DO-201AA, DO-27, Axial | LCE | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 20.6A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
1.5SMCJ180A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
513 |
|
Datasheet | DO-214AB, SMC | 1.5SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 180V | 198V | 292V | 5.1A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
