TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6KE550ATVS DIODE 468VWM 760VC DO204AC |
278 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 468V | 522.5V | 760V | 1.1A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
TPSMA6L6.0ATVS SMAF 6V 600W UNIDIR |
133 |
|
Datasheet | DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 58.3A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
|
1.5SMC36A-E3/57TTVS DIODE 30.8VWM 49.9VC SMC |
1,543 |
|
Datasheet | DO-214AB, SMC | 1.5SMC, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 30.1A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
1.5SMC62CA-E3/57TTVS DIODE 53VWM 85VC SMC |
1,490 |
|
Datasheet | DO-214AB, SMC | 1.5SMC, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 53V | 58.9V | 85V | 17.6A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
1.5SMC36CA-E3/9ATTVS DIODE 30.8VWM 49.9VC SMC |
892 |
|
Datasheet | DO-214AB, SMC | 1.5SMC, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 30.8V | 34.2V | 49.9V | 30.1A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMPC24AN-M3/HTVS DIODE 24VWM 38.9VC TO277A |
756 |
|
Datasheet | TO-277, 3-PowerDFN | TransZorb®, eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 38.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-277A (SMPC) |
|
SMBJ8V5ATVS DIODE 8.5VWM 14.4VC DO214AA |
348 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 41.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMCJ64CA-E3/57TTVS DIODE 64VWM 103VC DO214AB |
1,745 |
|
Datasheet | DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 64V | 71.1V | 103V | 14.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ17CA-E3/57TTVS DIODE 17VWM 27.6VC DO214AB |
1,276 |
|
Datasheet | DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 17V | 18.9V | 27.6V | 54.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
;;2.jpg "1.5SMC130A")
|
1.5SMC130ATVS DIODE 111VWM 179VC DO214AB |
697 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 111V | 124V | 179V | 8.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SA8.0CA-E3/54TVS DIODE 8VWM 13.6VC DO204AC |
651 |
|
Datasheet | DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 8V | 8.89V | 13.6V | 36.8A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SMCJ150A/TR13SMCJ, DO-204AB, 150V, 243V, REEL |
595 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 150V | 167V | 243V | 6.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
VBUS54DD-HS4-G4-08TVS DIODE 5.5VWM 19VC LLP1010-5L |
518 |
|
Datasheet | 5-XFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5.5V (Max) | 6.9V | 19V | 3A (8/20µs) | 57W | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LLP1010-5L |
|
|
SMCJ220A/TR13SMCJ, DO-204AB, 220V, 356V, REEL |
500 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 220V | 246V | 356V | 4.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
SMPC48AN-M3/HTVS DIODE 48VWM 77.4VC TO277A |
322 |
|
Datasheet | TO-277, 3-PowerDFN | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 19.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-277A (SMPC) |
|

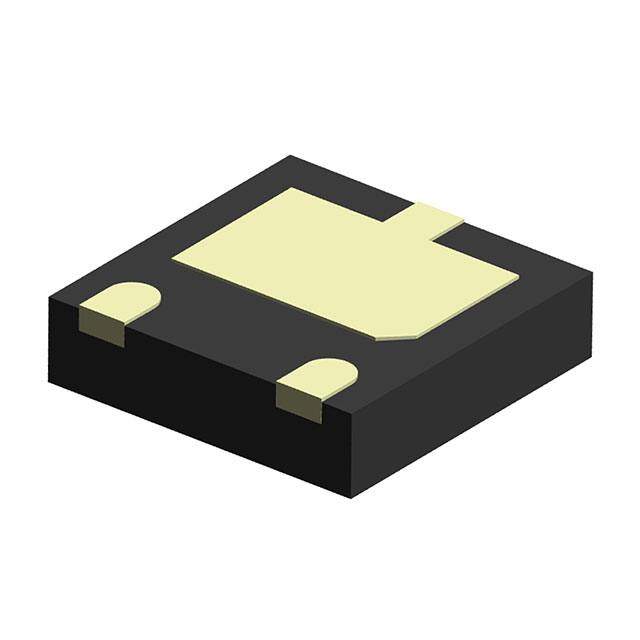

STN202240U752TVS DIODE ESD DFN2X2 24V 750PF |
309 |
|
Datasheet | 3-PowerUDFN | ST | Tape & Reel (TR) | Active | Zener | 2 | - | 24V (Max) | 26V | 50V | 50A (8/20µs) | 6000W (6kW) | No | General Purpose | 750pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 3-DFN (2x2) |
|
|
1.5SMC75A-E3/57TTVS DIODE 64.1VWM 104VC SMC |
214 |
|
Datasheet | DO-214AB, SMC | 1.5SMC, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 64.1V | 71.3V | 104V | 14.6A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SM15T200A-E3/57TTVS DIODE 171VWM 274VC DO214AB |
1,674 |
|
Datasheet | DO-214AB, SMC | SM15T, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 171V | 190V | 274V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
1.5SMC170CA-E3/57TTVS DIODE 145VWM 234VC SMC |
992 |
|
Datasheet | DO-214AB, SMC | 1.5SMC, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 145V | 162V | 234V | 6.4A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
1.5SMC82CA-E3/57TTVS DIODE 70.1VWM 113VC SMC |
1,157 |
|
Datasheet | DO-214AB, SMC | 1.5SMC, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 70.1V | 77.9V | 113V | 13.3A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
