TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMF33A-E3-08TVS DIODE 33VWM 53.3VC SMF |
13,189 |
|
Datasheet | DO-219AB | eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 3.8A | 200W | No | General Purpose | 198pF @ 1MHz | -65°C ~ 175°C (TJ) | - | - | Surface Mount | DO-219AB (SMF) |
|
SMBJ14CATVS DIODE 14VWM 23.2VC DO214AA |
13,152 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 14V | 15.6V | 23.2V | 25.9A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
;;2.jpg "P6KE18A")
|
P6KE18ATVS DO15 15.3V 600W UNIDIR |
13,036 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Cut Tape (CT) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.2V | 24A | 600W | Yes | General Purpose | 1600pF @ 1MHz | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
VLIN1626-02GHE3-08TVS DIODE 16VWM 26.5VWM SOD323 |
13,014 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 16V (Max), 26.5V (Max) | 17.1V, 28V | 33V, 50V | 6A (8/20µs), 4A (8/20µs) | 200W | No | - | 15.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
SMAJ8.0CATVS DIODE 8VWM 13.6VC DO214AC |
12,308 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 8V | 8.89V | 13.6V | 29.4A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SA26ATVS DIODE 26VWM 42.1VC DO204AC |
11,891 |
|
Datasheet | DO-204AC, DO-15, Axial | SA | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 12.1A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SMBJ16CATVS DIODE 16VWM 26VC DO214AA |
11,318 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 16V | 17.8V | 26V | 23.1A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
VLIN2626-02G-E3-08TVS DIODE 26.5VWM 50VC SOD323 |
10,966 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 26.5V (Max) | 28V | 50V | 4A (8/20µs) | 200W | No | General Purpose | 13.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
CDSOT23-T03LCTVS DIODE 3.3VWM 10.9VC SOT23-3 |
10,832 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V | 4V | 10.9V | 43A (8/20µs) | 500W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|

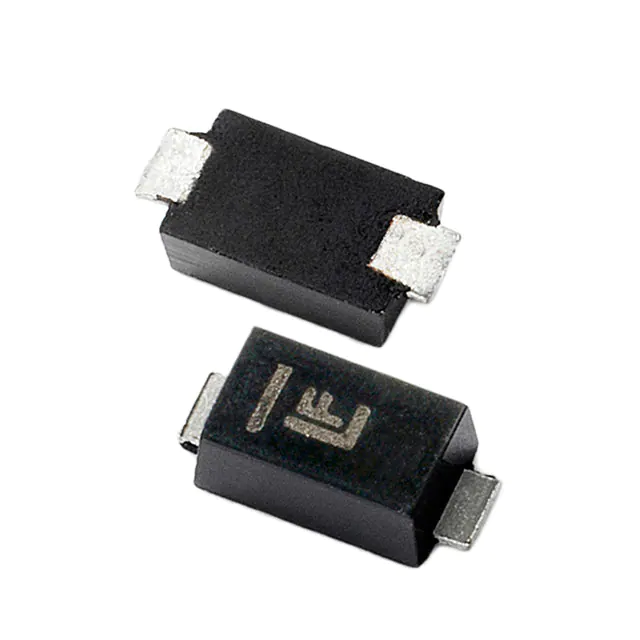

TPSMF4L15ATVS DIODE 15VWM 24.4VC SOD123FL |
9,852 |
|
Datasheet | SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 16.4A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
SMBJ18CATVS DIODE 18VWM 29.2VC SMB |
9,068 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 29.2V | 20.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SZESD7351P2T5GTVS DIODE 3.3VWM SOD923 |
8,599 |
|
Datasheet | SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 5V | - | - | - | No | RF Antenna | 0.43pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-923 |
|
SZ1SMB28AT3GTVS DIODE 28VWM 45.4VC SMB |
8,405 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 13.2A | 600W | No | - | 590pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
|
SMBJ90CATVS DIODE 90VWM 146VC DO214AA |
7,408 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 90V | 100V | 146V | 4.1A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ22CATVS DIODE 22VWM 35.5VC DO214AA |
5,528 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 16.9A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
;;2.jpg "SMBJ24D-M3/H")
|
SMBJ24D-M3/HTVS DIODE 24VWM 38.4VC DO214AA |
4,814 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 27.1V | 38.4V | 15.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMCJ100ATVS DIODE 100VWM 162VC DO214AB |
3,649 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 100V | 111V | 162V | 9.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
D5V0L4B5V-7TVS DIODE 5VWM 14VC SOT553 |
3,098 |
|
Datasheet | SOT-553 | - | Tape & Reel (TR) | Active | Zener | - | 4 | 5V (Max) | 6V | 14V | 6A (8/20µs) | 84W | No | General Purpose | 15pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-553 |
|
SA28A-E3/54TVS DIODE 28VWM 45.4VC DO204AC |
2,950 |
|
Datasheet | DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 11A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
SMBJ45ATVS DIODE 45VWM 72.7VC DO214AA |
2,821 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 8.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
