TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ120ATVS DIODE 120VWM 193VC |
6,000 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | 1 | - | 120V | 133V | 193V | 3.11A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMBJ51ATVS DIODE 51VWM 82.4VC |
6,200 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 7.28A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SZESD8004MUTAGESD PROTECTION ARRAY, USB 3.0 |
96,000 |
|
Datasheet | 10-UFDFN | - | Tape & Reel (TR) | Not For New Designs | Zener | 4 | - | 3.3V (Max) | 5.5V | 8V (Typ) | 16A | - | No | USB | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | - | Surface Mount | 10-UDFN (2.5x1) |
;;2.jpg "SMCJ20CA")
|
SMCJ20CATRANS VOLTAGE SUPPRESSOR DIODE, |
68,979 |
|
Datasheet | DO-214AB, SMC | SMCJ | Bulk | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 46.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
1.5KE300CATVS DIODE 300VWM 430VC 1.5KE |
38,400 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 300V | - | 430V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | 1.5KE |
|
P6KE8V2ATVS DIODE 7.02VWM 12.1VC DO15 |
35,004 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | 1 | - | 7.02V | 7.79V | 12.1V | 50A | 600W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
|
P6KE68CATRANS VOLTAGE SUPPRESSOR DIODE, |
8,000 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 58.1V | 64.6V | 92V | 6.8A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE120CATRANS VOLTAGE SUPPRESSOR DIODE, |
4,000 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 102V | 114V | 165V | 3.8A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE180CATRANS VOLTAGE SUPPRESSOR DIODE, |
4,000 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 154V | 171V | 246V | 2.5A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE13CATRANS VOLTAGE SUPPRESSOR DIODE, |
4,000 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 11.1V | 12.4V | 18.2V | 34A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SMCJ85CATRANS VOLTAGE SUPPRESSOR DIODE, |
3,310 |
|
Datasheet | DO-214AB, SMC | SMCJ | Bulk | Active | Zener | - | 1 | 85V | 94.4V | 137V | 11A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
P4KE6.8BULKTVS DIODE 5.5VWM 10.8VC DO41 |
3,000 |
|
Datasheet | DO-204AL, DO-41, Axial | P4KE | Bag | Active | Zener | 1 | - | 5.5V | 6.12V | 10.8V | 38A | 400W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
|
|
P4KE200ABULKTVS DIODE 171VWM 274VC DO41 |
3,000 |
|
Datasheet | DO-204AL, DO-41, Axial | P4KE | Bag | Active | Zener | 1 | - | 171V | 190V | 274V | 1.53A | 400W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
|

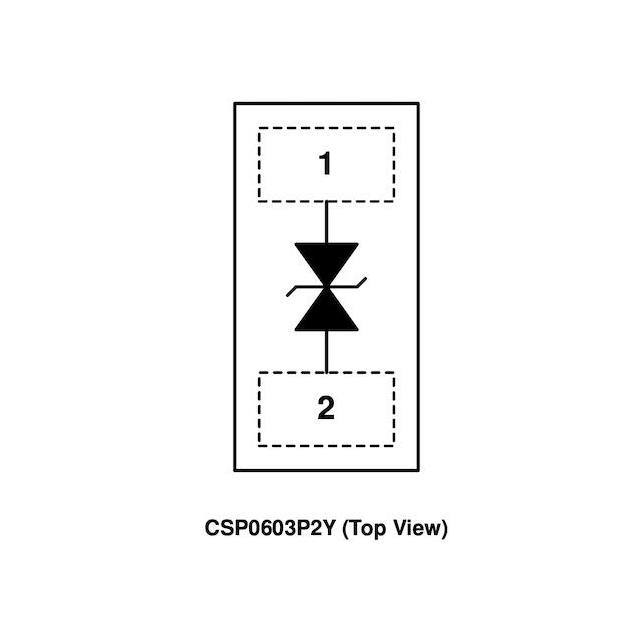

AZ5B75-01BTVS DEVICE 1-CHANNEL 5V |
3,000 |
|
Datasheet | 2-XFBGA, CSPBGA | - | Strip | Active | Zener | - | 1 | 5V (Max) | 6V | - | - | - | No | USB | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | CSP0603P2Y |
|
AZ4012-01FTVS DEVICE HIGH VOLTAGE 1-CH 12V |
3,000 |
|
Datasheet | 0402 (1006 Metric) | - | Strip | Active | Zener | 1 | - | 12V (Max) | 13.5V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN1006P2X |
|
|
SMCJ17CATRANS VOLTAGE SUPPRESSOR DIODE, |
2,850 |
|
Datasheet | - | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SMCJ26ATRANS VOLTAGE SUPPRESSOR DIODE, |
2,820 |
|
Datasheet | DO-214AB, SMC | SMCJ | Bulk | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 35.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SMCJ6V5ATVS DIODE 6.5VWM 11.2VC SMC |
2,680 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 133.9A | 1500W (1.5kW) | No | General Purpose | - | - | - | - | Surface Mount | DO-214AB (SMC) |
|
|
SMCJ170ATRANS VOLTAGE SUPPRESSOR DIODE, |
1,505 |
|
Datasheet | DO-214AB, SMC | SMCJ | Bulk | Active | Zener | 1 | - | 170V | 189V | 275V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
1V5KE350ATVS DIODE 300VWM 482VC DO201AD |
1,250 |
|
Datasheet | DO-201AD, Axial | - | Bulk | Active | Zener | 1 | - | 300V | 333V | 482V | 3.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AD |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
