TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLD6S36AHTVS DIODE 36VWM 58.1VC DO218AB |
1,500 |
|
Datasheet | DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 79A | 3600W (3.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
TLD6S24AHTVS DIODE 24VWM 38.9VC DO218AB |
1,450 |
|
Datasheet | DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 118A | 3600W (3.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
SM8S30A-AU_R2_000A16.6KW SURFACE MOUNT TRANSIENT VO |
1,200 |
|
Datasheet | DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 136A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
SM8S26A-AU_R2_000A16.6KW SURFACE MOUNT TRANSIENT VO |
590 |
|
Datasheet | DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 157A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
SM8S22A-AU_R2_000A16.6KW SURFACE MOUNT TRANSIENT VO |
505 |
|
Datasheet | DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 186A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
20KPA44CA44V, 20000W,P-600, TRANSIENT VOL |
279 |
|
Datasheet | P600, Axial | 20KPA | Cut Tape (CT) | Active | Zener | - | 1 | 44V | 49.1V | 72.7V | 277.9A | 20000W (20kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | P600 |
|
|
SM8S20A-AU_R2_000A16.6KW SURFACE MOUNT TRANSIENT VO |
196 |
|
Datasheet | DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 204A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
SLD6S30ATVS DIODE 30VWM 48.4VC SMTO-263 |
383 |
|
Datasheet | Nonstandard SMD | SLD6S | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 95A | 1800W (1.8kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMTO-263 |
|
|
SM8S48A-AU_R2_000A16.6KW SURFACE MOUNT TRANSIENT VO |
251 |
|
Datasheet | DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 80.6V | 82A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
5.0SMDJ30AHM6GTVS DIODE 30VWM 48.4VC DO214AB |
6,000 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 103A | 5000W (5kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ16AHM6GTVS DIODE 16VWM 26VC DO214AB |
779 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 193A | 5000W (5kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
15KPA24ATVS DIODE 24VWM 40.7VC P600 |
223 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.81V | 40.7V | 371A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
TLD8S10AHTVS DIODE 10VWM 17VC DO218AB |
1,475 |
|
Datasheet | DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 388A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
TLD8S14AHTVS DIODE 14VWM 23.2VC DO218AB |
1,450 |
|
Datasheet | DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 284A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
TLD8S12AHTVS DIODE 12VWM 19.9VC DO218AB |
1,304 |
|
Datasheet | DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 332A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
SMDA05C/TR7TVS DIODE 5VWM 11VC 8-SO |
108 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | - | 4 | 5V | 6V | 11V | 5A (8/20µs) | 300W | No | General Purpose | 200pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SM8S36A-AU_R2_000A16.6KW SURFACE MOUNT TRANSIENT VO |
783 |
|
Datasheet | DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 114A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
5KP210ATVS DIODE 210VWM 349.5VC P600 |
800 |
|
Datasheet | P600, Axial | 5KP | Tape & Reel (TR) | Active | Zener | 1 | - | 210V | 233V | 349.5V | 14.6A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |

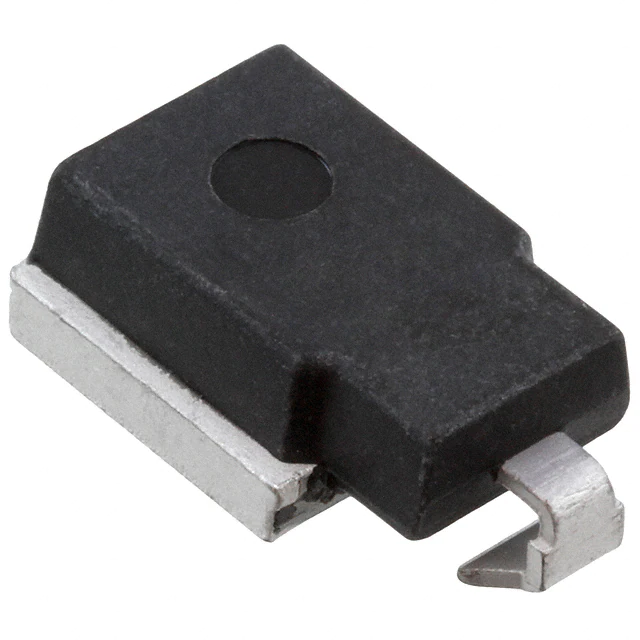

xxVL.JPG "SZ-10NN27VL")
|
SZ-10NN27VLDIODE ZENER 27V 6W SZ10 |
286 |
|
Datasheet | DO-218AB | SZ-10N | Tape & Reel (TR) | Active | Zener | 1 | - | 22V (Max) | 24V | - | - | - | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SZ-10 |
|
|
15KPA30ATVS, UNI-DIR, 15000W, 30V, P600 |
224 |
|
Datasheet | P600, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 30V | 33.51V | 50.7V | 297.8A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | P-600 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
