TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCLAMP2402B.TCTTVS DIODE 24VWM 55VC SC75 |
3,252 |
|
Datasheet | SC-75, SOT-416 | RailClamp® | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 2 | - | 24V (Max) | 26.7V | 55V | 4A (8/20µs) | 200W | No | HDMI | 0.6pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SC-75 (SOT523) |
|
3.0SMCJ28A-AU_R2_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
2,990 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 66A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
AOZ8318DITVS DIODE 2.5VWM 5VC 10DFN |
7,636 |
|
Datasheet | 10-UFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 2.5V (Max) | 2.8V | 5V | 25A (8/20µs) | 350W | Yes | Ethernet, Telecom | 3pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (2.6x2.6) |
|
PSM712-LF-T7SOT23-3 |
4,885 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | UMW | Tape & Reel (TR) | Active | Zener | - | 2 | 12V (Max), 7V (Max) | 13.3V, 7.5V | 25V, 15V | 7A (8/20µs) | 150W | No | General Purpose | 45pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23 |
|
ATV30C400J-HFTVS DIODE 40VWM 64.5VC DO214AB |
2,990 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 46.51A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
TPSMC170ATVS 1.5KW 170V 5%UNI DO-214AB |
2,816 |
|
Datasheet | DO-214AB, SMC | TPSMC | Tape & Reel (TR) | Active | Zener | 1 | - | 145.35V | 161.5V | 234V | 6.5A | 1500W (1.5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
ATV30C360J-HFTVS DIODE 36VWM 58.1VC DO214AB |
2,755 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 51.64A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
ATV30C240J-HFTVS DIODE 24VWM 38.9VC DO214AB |
1,690 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 77.12A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
SMC30J20CATVS DIODE 20VWM 32.4VC SMC |
2,219 |
|
Datasheet | DO-214AB, SMC | SMC30J | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 93A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|

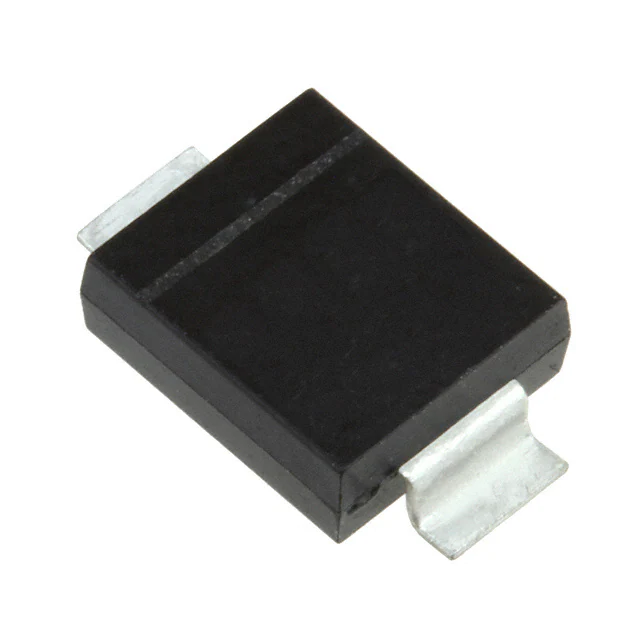

MSMCG170ATVS DIODE 170VWM 275VC SMCG |
200 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Bulk | Active | Zener | 1 | - | 170V | 189V | 275V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
|
|
MSMCG7.5ATVS DIODE 7.5VWM 12.9VC SMCG |
200 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Bulk | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 116.3A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
.jpg "MSMCJ8.0CAE3")
|
MSMCJ8.0CAE3TVS DIODE 8VWM 13.6VC DO214AB |
200 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 8V | 8.89V | 13.6V | 110.3A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCJ) |
|
|
MSMCG10ATVS DIODE 10VWM 17VC SMCG |
180 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Bulk | Active | Zener | 1 | - | 10V | 11.1V | 17V | 88.2A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
|
|
MSMCJ17CATVS DIODE 17VWM 27.6VC DO214AB |
170 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 17V | 18.9V | 27.6V | 53.3A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCJ) |
|
S16C24-8TVS DIODE 24VWM 43VC 16SO |
2,429 |
|
Datasheet | 16-SOIC (0.154", 3.90mm Width) | S16CXX-8 | Tape & Reel (TR) | Active | Zener | - | 8 | 24V (Max) | 26.7V | 43V | 1A | 300W | No | Ethernet, Telecom | 137pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | - | Surface Mount | 16-SO |
|
|
S16C05-8TVS DIODE 5VWM 9.8VC 16SO |
1,319 |
|
Datasheet | 16-SOIC (0.154", 3.90mm Width) | S16CXX-8 | Tape & Reel (TR) | Active | Zener | - | 8 | 5V (Max) | 6V | 9.8V | 1A | 300W | No | Ethernet, Telecom | 440pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | - | Surface Mount | 16-SO |
|
SMCJ9.0CA-13TVS DIODE 9V 15.4V SMC |
22,652 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 2 | 9V | 10V | 15.4V | 97.4A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ24CA-13TVS DIODE 24VWM 38.9VC SMC |
12,000 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 24V | 26.7V | 38.9V | 38.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMCJ75CA-13TVS DIODE 75V 121V SMC |
6,121 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 75V | 83.3V | 121V | 12.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMCJ160CA-13-FTVS DIODE 160V 259V SMC |
5,900 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 160V | 178V | 259V | 5.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
