TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMB6F6.0AYTVS DIODE 6VWM 10.3VC SMBFLAT |
4,974 |
|
Datasheet | DO-221AA, SMB Flat Leads | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6V | 6.7V | 10.3V | 61A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMBflat |
|
|
SMB6F5.0AYTVS DIODE 5VWM 9.2VC SMBFLAT |
4,884 |
|
Datasheet | DO-221AA, SMB Flat Leads | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V | 6.4V | 9.2V | 68A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMBflat |
;;2.jpg "P6KE510A")
|
P6KE510ATVS, UNI-DIR, 600W, 510V, DO-204 |
4,000 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 434V | 485V | 698V | 900mA | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
P6KE480ATVS, UNI-DIR, 600W, 480V, DO-204 |
3,850 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 408V | 456V | 658V | 900mA | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE540ATVS, UNI-DIR, 600W, 540V, DO-204 |
3,500 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 459V | 513V | 740V | 800mA | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SMCJE26CATVS DIODE 26VWM 42.1VC SMC |
2,976 |
|
Datasheet | DO-214AB, SMC | SMCJE | Tape & Reel (TR) | Active | Zener | - | 1 | 26V | 28.9V | 42.1V | 35.6A | 1500W (1.5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
P6KE550ATVS, UNI-DIR, 600W, 550V, DO-204 |
1,798 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 467V | 522.5V | 760V | 800mA | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SM05.TCTSOT-23 |
1,171 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | UMW | Cut Tape (CT) | Active | Zener | - | 2 | 5V | 6V | 15V | 10A | 150W | No | USB | - | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23 |
|
NSPM0051MUT5GTVS DIODE 5VWM 11.5VC 2UDFN |
6,048 |
|
Datasheet | 2-UDFN | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Max) | 6V | 11.5V | 70A (8/20µs) | - | No | General Purpose | 16pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | 2-UDFN (1.6x1) |
|
MAX3202EETTIC ESD PROT ARRAY 2CH 6-TDFN |
22,024 |
|
Datasheet | - | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
P4KE130CATVS DO15 111V 400W BIDIR |
5,000 |
|
Datasheet | DO-204AL, DO-41, Axial | P4KE | Tape & Reel (TR) | Active | Zener | - | 1 | 111V | 124V | 179V | 2.3A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|
|
P4KE110CATVS DO15 94V 400W BIDIR |
4,621 |
|
Datasheet | DO-204AL, DO-41, Axial | P4KE | Tape & Reel (TR) | Active | Zener | - | 1 | 94V | 105V | 152V | 2.7A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|

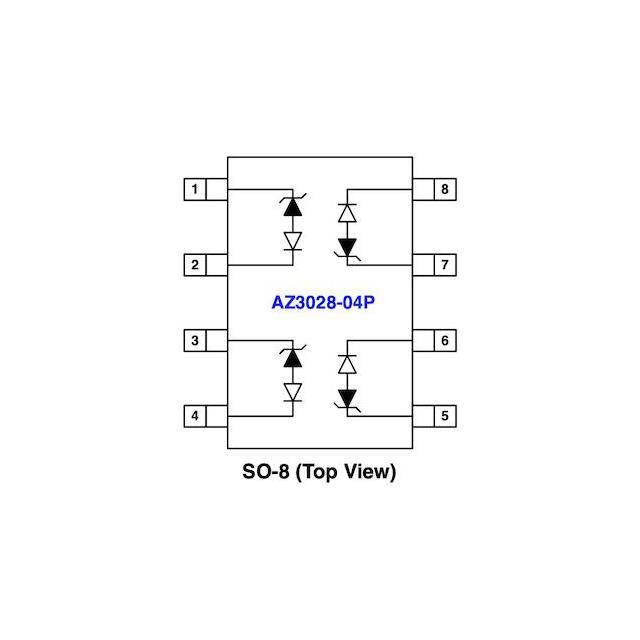

AZ3028-04PTVS SURGE PROTECTOR 4-CH 2.8V |
2,990 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Strip | Active | Zener | - | 4 | 2.8V (Max) | 3V | - | - | - | No | Ethernet | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | 8-SO |
|
SMDJ26CATVS DIODE 26VWM 42.1VC DO214AB,S |
2,984 |
|
Datasheet | - | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
S8ULC15-2TVS DIODE 15VWM 25VC 8-SO |
2,495 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | S8ULCxx-2 | Tape & Reel (TR) | Active | Zener | 2 | - | 15V (Max) | 16.7V | 25V | 1A | 500W | No | General Purpose | 3pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
LCDA15TVS DIODE 15VWM 24VC 8-SO |
2,234 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 4 | 15V (Max) | 16.7V | 24V | 1A (8/20µs) | 300W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
S8ULC24-2TVS DIODE 24VWM 44VC 8-SO |
1,995 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | S8ULCxx-2 | Tape & Reel (TR) | Active | Zener | 2 | - | 24V (Max) | 26.7V | 44V | 1A | 500W | No | General Purpose | 3pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
LCDA03TVS DIODE 3.3VWM 7VC 8-SO |
1,818 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 4 | 3.3V (Max) | 4V | 7V | 1A | 300W | No | USB | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
S8ULC12-2TVS DIODE 12VWM 19VC 8-SO |
1,721 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | S8ULCxx-2 | Tape & Reel (TR) | Active | Zener | 2 | - | 12V (Max) | 13.3V | 19V | 1A | 500W | No | General Purpose | 3pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
LCDA24TVS DIODE 24VWM 43VC 8-SO |
1,547 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 4 | 24V (Max) | 26.7V | 43V | 1A | 300W | No | USB | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
