TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "P4KE18CA_R2_00001")
|
P4KE18CA_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
5,000 |
|
Datasheet | DO-204AL, DO-41, Axial | P4KE | Tape & Reel (TR) | Active | Zener | - | 1 | 15.3V | 17.1V | 25.2V | 17A | 400W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
|
P4KE16A_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
4,989 |
|
Datasheet | DO-204AL, DO-41, Axial | P4KE | Tape & Reel (TR) | Active | Zener | 1 | - | 13.6V | 15.2V | 22.5V | 19A | 400W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
|
SMF7.5A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
3,000 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.3V | 12.9V | 15.5A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF58A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
3,000 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 2.1A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
PJSOT12_R1_00001STANDARD CAPACITANCE TVS ARRAY |
3,000 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.3V | 19V | 21A (8/20µs) | 500W | No | General Purpose | 200pF @ 1MHz (Max) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
PESD2CANFD27UU-QXPESD2CANFD27UU-Q/SOT323/SC-70 |
2,985 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 26.2V | 41V | 5A (8/20µs) | 230W | No | CAN | 25pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
SMAJ13AHR3GTVS DIODE 13VWM 21.5VC DO214AC |
2,970 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 13V | 14.4V | 21.5V | 18.6A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|

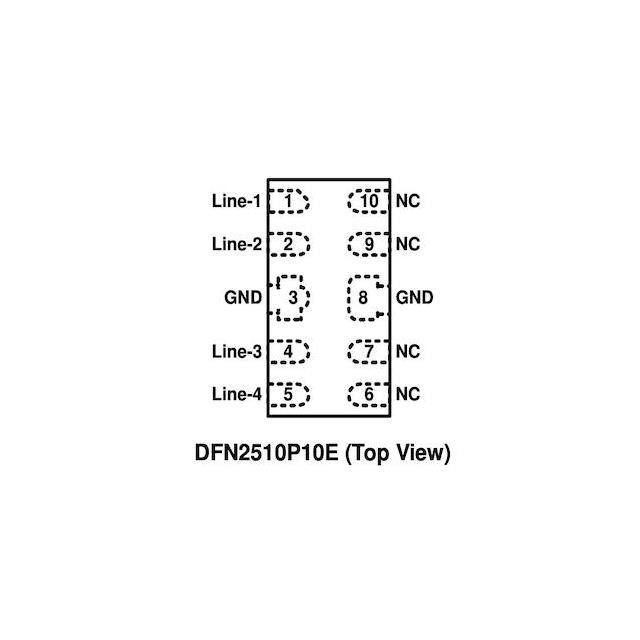

AZ1243-04FLOW CAP ESD HIGH SPEED 4-CH 3.3V |
2,950 |
|
Datasheet | 10-UFDFN | - | Strip | Active | Zener | 4 | - | 3.3V (Max) | 4.5V | - | - | - | No | HDMI | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN2510P10E |
|
AZ3705-01FTVS SURGE PROTECTOR 1-CH 4.5V |
2,950 |
|
Datasheet | 3-UDFN Exposed Pad | - | Strip | Active | Zener | - | 1 | 4.5V (Max) | 5V | - | - | - | Yes | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN2020P3E |
|
FTZ4.3EFHT148TVS DIODE 1VWM SMD5 |
2,720 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Not For New Designs | Steering (Rail to Rail) | 4 | - | 1V (Max) | 4.04V | - | - | - | No | - | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMD5 |
|
SMF28A RVGTVS DIODE 28VWM 45.4VC SOD123W |
2,432 |
|
Datasheet | SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 4.4A | 200W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SOD-123W |
|
|
FTZ30EFHT148TVS DIODE 23VWM SMD5 |
1,990 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Not For New Designs | Steering (Rail to Rail) | 4 | - | 23V (Max) | 29.19V | - | - | - | No | - | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMD5 |
|
SMA6S51AHTVS DIODE 51VWM 82.8VC SOD128 |
1,786 |
|
Datasheet | SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 51V | 57V | 82.8V | 7.2A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-128 |
|
|
SMF48A RVGTVS DIODE 48VWM 77.4VC SOD123W |
1,402 |
|
Datasheet | SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 2.6A | 200W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SOD-123W |
|
SP1212-01ETGTVS DIODE 5VWM 9.7VC SOD882 |
1,258 |
|
Datasheet | SOD-882 | SP1212, SPA® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Max) | 7V (Typ) | 9.7V (Typ) | 12A (8/20µs) | 250W | No | - | 290pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
CPDQR5V0-HFTVS DIODE 5VWM 16VC 0402/SOD923F |
1,077 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Last Time Buy | Zener | - | 1 | 5V | 5.1V | 16V | 5A (8/20µs) | 75W | No | General Purpose | 15pF @ 1MHz | - | - | - | Surface Mount | 0402/SOD-923F |
|
ESD5482MUT5GTVS DIODE 3.3VWM 7.8VC 2X3DFN |
8,812 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 3.3V (Max) | 5V | 7.8V | 1A (8/20µs) | - | No | General Purpose | 5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 2-X3DFN (0.6x0.3) (0201) |
|
CM1235-08DETVS DIODE 5.5VWM 9.2VC 16WDFN |
3,859 |
|
Datasheet | 16-WFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 8 | - | 5.5V (Max) | 6V | 9.2V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-WDFN (4x1.7) |
|
BZA868AL,115TVS DIODE 6.8VWM 5TSSOP |
6,858 |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 6.8V | - | - | - | 14W | No | General Purpose | 180pF @ 1MHz | - | - | - | Surface Mount | 5-TSSOP |
|
RSB6.8JS2FHT2RTVS DIODE 3.5VWM EMD6 |
7,970 |
|
Datasheet | SOT-563, SOT-666 | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 2 | 3.5V | 6V | - | - | - | No | - | 1pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | EMD6 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
