TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCLAMP0822B.CLOW CAPACITANCE RAILCLAMP 2-LINE |
2,850 |
|
Datasheet | SC-75, SOT-416 | RailClamp® | Tape & Reel (TR) | Active | Zener | 2 | - | 8V (Max) | 9.6V | 18V | 7A (8/20µs) | 126W | No | General Purpose | 1.4pF @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | SC-75 (SOT523) |
|
|
RCLAMP1222B.CLOW CAPACITANCE RAILCLAMP 2-LINE |
2,785 |
|
Datasheet | SC-75, SOT-416 | RailClamp® | Tape & Reel (TR) | Active | Zener | 2 | - | 12V (Max) | 14V | 26V | 10A (8/20µs) | 260W | No | General Purpose | 1.3pF @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | SC-75 (SOT523) |
|
|
ESDLC2504P8-TPESD PROTECTION DEVICE |
30,000 |
|
Datasheet | 10-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 2.5V (Max) | - | 15V | 25A (8/20µs) | 375W | Yes | General Purpose | 3.8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN2626-10 |
|
TPSMC110ATVS 1.5KW 110V 5%UNI DO-214AB |
8,867 |
|
Datasheet | DO-214AB, SMC | TPSMC | Tape & Reel (TR) | Active | Zener | 1 | - | 94.5V | 104.5V | 152V | 10A | 1500W (1.5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
5KP7.0CATVS P600 7V 5000W BIDIR |
800 |
|
Datasheet | P600, Axial | 5KP | Tape & Reel (TR) | Active | Zener | - | 1 | 7V | 7.78V | 12V | 425A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|

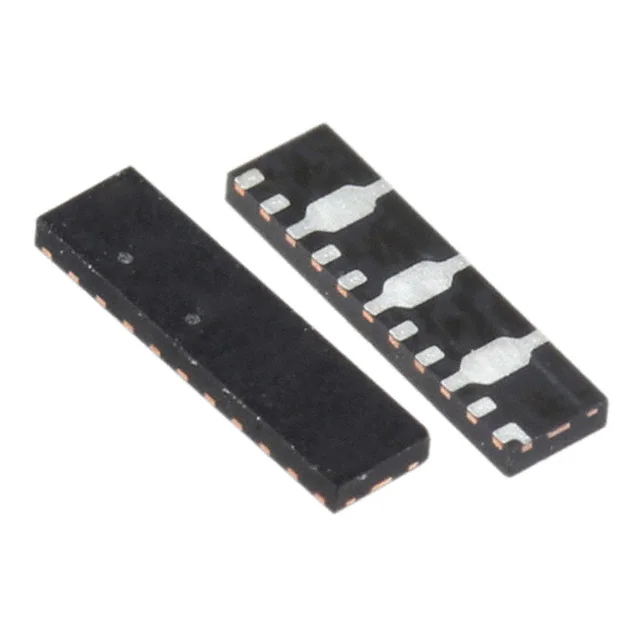

SESD8008MUTAGTVS DIODE 3.3VWM 8.1VC 14UDFN |
3,000 |
|
Datasheet | 14-UFDFN | - | Tape & Reel (TR) | Active | Zener | 8 | - | 3.3V (Max) | 5.5V | 8.1V (Typ) | 16A | - | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 14-UDFN (5.5x1.5) |
|
|
SZ1SMC85AT3GZEN TVS 1500W 85V UNI DO-214AB T |
2,600 |
|
Datasheet | DO-214AB, SMC | SZ1SMCxxA | Tape & Reel (TR) | Active | Zener | 1 | - | 85V | 94.4V | 137V | 10.9A | 1500W (1.5kW) | No | Telecom | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
ESDLC3304P9-TPESD PROTECTION DEVICE |
3,000 |
|
Datasheet | 10-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3.3V (Max) | 3.5V | 25V | 40A (8/20µs) | 1000W (1kW) | No | General Purpose | 3.8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN3020-10 |
|
|
TPSMC20AHE3_B/ITVS DIODE 17.1VWM 27.7VC DO214AB |
3,400 |
|
Datasheet | DO-214AB, SMC | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 17.1V | 19V | 27.7V | 54.2A | 1500W (1.5kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
SMCJ7.5A-13-FTVS DIODE 7.5VWM 12.9VC SMC |
2,862 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 116.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMCJ78A-13-FTVS DIODE 78VWM 126VC SMC |
2,550 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 86.7V | 126V | 11.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
1.5SMC400A-M3/57TTVS DIODE 342VWM 548VC SMC |
2,971 |
|
Datasheet | DO-214AB, SMC | 1.5SMC, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 342V | 380V | 548V | 2.7A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
1.5SMC480A-M3/57TTVS DIODE 408VWM 658VC SMC |
1,918 |
|
Datasheet | DO-214AB, SMC | 1.5SMC, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 408V | 456V | 658V | 2.28A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMLJ26A-QTVS DIODE 26VWM 42.1VC SMC |
5,000 |
|
Datasheet | DO-214AB, SMC | SMLJ-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 71.2A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
SMC3K24CAHM3_A/I3KW, 24V 5%,BIDIR,SMC TVS |
3,490 |
|
Datasheet | DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 77.1A | 3000W (3kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
5.0SMDJ40CA-AT/135.0SMDJ, DO-214AB, 40V, 64.5V, A |
3,000 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ-AT | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 77.6A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ36CA-AT/75.0SMDJ, DO-214AB, 36V, 58.1V, A |
2,998 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ-AT | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 86.1A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
RCLAMP3324P.TCTTVS DIODE 3.3VWM 4.5VC SGP2510P8 |
9,000 |
|
Datasheet | 10-UFDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 8V (Typ) | 4.5V | 4.5A (8/20µs) | - | Yes | - | 0.6pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SGP2510P8 |
|
SMA6T22AYTVS DIODE 18.8VWM 39.3VC SMA |
4,818 |
|
Datasheet | DO-214AC, SMA | SMA6TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 18.8V | 20.9V | 39.3V | 102A (8/20µs) | 600W | No | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
5.0SMLJ58CAL-TP5000W TVS,SMC |
2,300 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 53.5A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
