TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D1V8L1BS2LP3-7General Protection PP X3-DFN0603 |
7,434 |
|
Datasheet | 0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 1.8V (Max) | 2.1V | 7V (Typ) | 25A (8/20µs) | 175W | No | General Purpose | 32pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X3-DFN0603-2 |
|
SMAJ12CA-TPTVS DIODE 12VWM 19.9VC DO214AC |
6,108 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 20.1A | 400W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
ESDCAN03-2BM3YTVS DIODE 24VWM 36.5VC 3QFN |
5,675 |
|
Datasheet | 3-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 28V | 36.5V | 3.3A (8/20µs) | - | No | - | 3.3pF @ 1MHz | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 3-QFN (1.1x1) |
|
DF2B18FU,H3FTVS DIODE 12VWM 33VC USC |
2,480 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 16.2V | 33V | 2.5A (8/20µs) | 80W | No | - | 9pF @ 1MHz | - | - | - | Surface Mount | USC |
|
|
ESD1LIN24DYFR3-PF 24-V 30-KV ESD PROTECTION D |
1,270 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 35.5V | 42V | 4.3A (8/20µs) | 159.1W | No | CAN, USB | 2.3pF @ 1MHz | -50°C ~ 150°C (TA) | - | - | Surface Mount | SOD-323 |
|
VESD08C1-02V-G3-08TVS DIODE 8VWM 15.3VC SOD523 |
1,255 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8V (Max) | 9.5V | 15.3V | 6.6A (8/20µs) | 100W | No | - | 47pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
SMBJ20CATVS DIODE 20VWM 32.4VC DO214AA |
143,274 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 18.6A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
ESDA14V2LTVS DIODE 12VWM SOT23-3 |
92,246 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 2 | - | 12V | 14.2V | - | - | 300W | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
.jpg "PESD5V0C2BDFZ")
|
PESD5V0C2BDFZTVS DIODE 5VWM 6.5VC DFN0603-3 |
69,973 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 9.6V (Typ) | 6.5V (Typ) | 8.5A (8/20µs) | - | No | HDMI, Telecom, USB | 0.21pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DFN0603-3 (SOT8013) |
|
DESD5V0S1BL-7BTVS DIODE 5VWM 14VC DFN1006-2 |
58,513 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 14V | 12A (8/20µs) | 130W | No | General Purpose | 35pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|

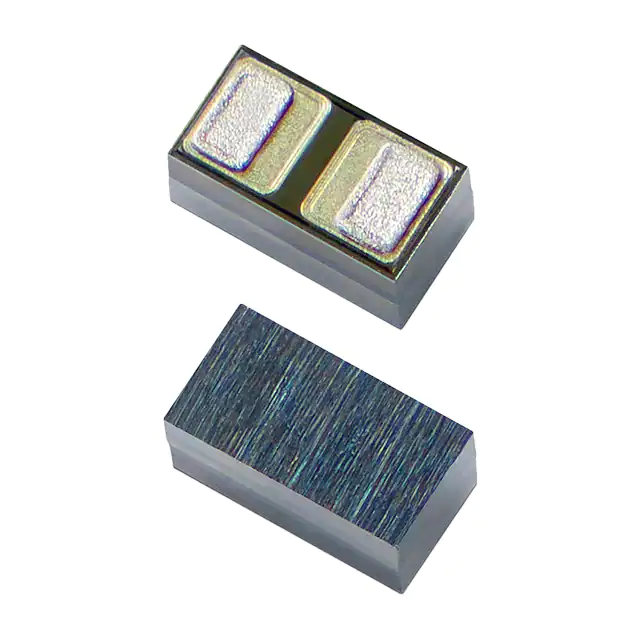

SP15-01WTG-C-HVTVS DIODE 15VWM 27VC 2FLIPCHIP |
56,788 |
|
Datasheet | 2-XFDFN, FCDFN | SPXX, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 16.7V | 27V | 5A (8/20µs) | 100W | No | General Purpose | 21pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-FlipChip |
|
D1213A-01W-7TVS DIODE 3.3VWM 10VC SOT323 |
48,381 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | 3.3V | 6V | 10V (Typ) | 1A (8/20µs) | - | Yes | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
SMAJ120ATVS DIODE 120VWM 193VC DO214AC |
42,457 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 120V | 133V | 193V | 2.1A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
VCAN36A2-03S-E3-08TVS DIODE 36VWM 63VC SOT23-3 |
29,776 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 36V (Max) | 39V | 63V | 2.4A (8/20µs) | 150W | No | CAN | 8pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
D15V0H1U2LP-7BTVS DIODE 15VWM 27VC DFN1006-2 |
21,700 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 16V | 27V | 12A (8/20µs) | 300W | No | General Purpose | 70pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|
PESD3V3Z1BCSFYLTVS DIODE 3.3VWM 4.8VC DSN0603-2 |
20,828 |
|
Datasheet | 0201 (0603 Metric) | TrEOS | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 6.8V (Typ) | 4.8V (Typ) | 15A (8/20µs) | - | No | General Purpose | 0.45pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DSN0603-2 |
|
SMAJ24CA-TPTVS DIODE 24VWM 38.9VC DO214AC |
19,516 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 10.3A | 400W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-214AC (SMA) |
|
PESD5V0L4UW,115TVS DIODE 5VWM 13VC SOT665 |
18,337 |
|
Datasheet | SOT-665 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V (Max) | 6.46V | 13V | 2.5A (8/20µs) | 30W | No | General Purpose | 16pF @ 1MHz | -65°C ~ 150°C (TA) | - | - | Surface Mount | SOT-665 |
|
NUP1301U,115TVS DIODE 80VWM 20VC SOT323 |
16,068 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | 80V (Max) | 100V | 20V | 11A (8/20µs) | 220W | No | - | 0.6pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
VESD05C1-02V-G3-08TVS DIODE 5VWM 11.5VC SOD523 |
15,980 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.85V | 11.5V | 8.7A (8/20µs) | 100W | No | - | 67pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
