TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZW04-15TVS DO15 175DEG 15.3V 400W |
3,750 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.2V | 16A | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
P4KE18ATVS DO15 175DEG 15.3V 400W |
3,750 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.2V | 16.5A | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
TPSMA11AHE3_B/HTVS DIODE 9.4VWM 15.6VC DO214AC |
3,565 |
|
Datasheet | DO-214AC, SMA | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 9.4V | 10.5V | 15.6V | 25.6A | 400W | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
BZW06-23TVS DO15 175DEG 23.1V 600W |
3,488 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 23.1V | 25.7V | 37.5V | 16A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
TPSMA10AHE3_B/HTVS DIODE 8.65VWM 14.5VC DO214AC |
3,345 |
|
Datasheet | DO-214AC, SMA | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 8.65V | 9.5V | 14.5V | 27.6A | 400W | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
TPSMA18AHE3_B/HTVS DIODE 15.3VWM 25.5VC DO214AC |
3,105 |
|
Datasheet | DO-214AC, SMA | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.5V | 15.9A | 400W | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMA5J26A-E3/61TVS DIODE 26VWM 42.1VC DO214AC |
3,028 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 11.9A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|

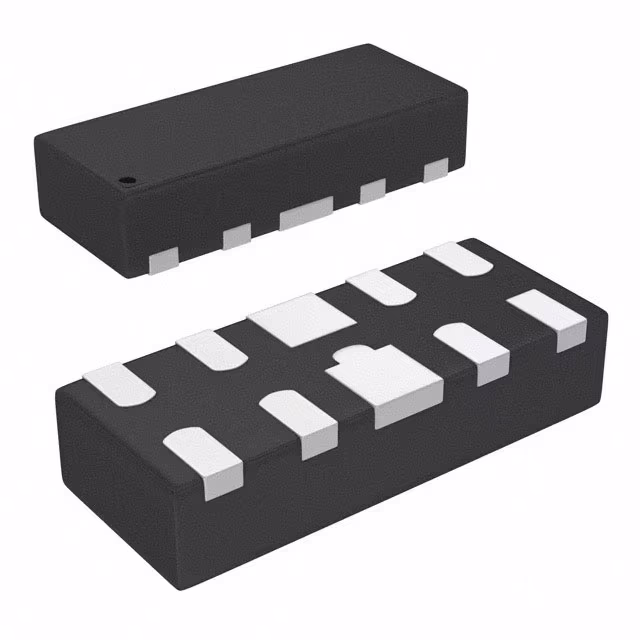

UBQ10A03L04TVS ESD, QFN-10, 3.3V, 15V, REEL |
3,000 |
|
Datasheet | 10-UFDFN | UBQ10A03L04 | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 4.5V | 15V | 4A (8/20µs) | - | Yes | DVI, HDMI | 0.6pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 10-QFN (2.5x1) |
|
ESDSBHC4V5P6B-TPESD,4.5V,DFN1610-2 |
2,990 |
|
Datasheet | 0603 (1610 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 4.5V (Max) | 4.8V | 18V | 195A (8/20µs) | 3510W (3.51kW) | No | General Purpose | 400pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1610-2 |
|
|
BZW06-15TVS DO15 175DEG 15.3V 600W |
2,955 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.2V | 24A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
SMFA1905CATVS SOD-123FL ASYM 1905 Bi 7 |
2,950 |
|
Datasheet | SOD-123F | SMFA | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V | 6.82V | 10.5V | 33A | - | No | General Purpose | 485pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMFA2005CATVS SOD-123FL ASYM 2005 Bi 7 |
2,940 |
|
Datasheet | SOD-123F | SMFA | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V | 6.82V | 10.5V | 33A | - | No | General Purpose | 440pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMFA1805CATVS SOD-123FL ASYM 1805 Bi 7 |
2,940 |
|
Datasheet | SOD-123F | SMFA | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V | 6.82V | 10.5V | 33A | - | No | General Purpose | 515pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
AQW05C-01FTG5V 30A 30KV SOD323 BI-DIR TVS |
2,925 |
|
Datasheet | SC-76, SOD-323 | AQW05, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 15V (Typ) | 30A (8/20µs) | - | No | - | 115pF @ 1MHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
SMBJP6KE220CA-TPTVS DIODE 185VWM 328VC DO214AA |
2,845 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 185V | 209V | 328V | 1.9A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
BZW06-10TVS DO15 175DEG 10.2V 600W |
2,800 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 10.2V | 11.4V | 16.7V | 36A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
BZW04-17TVS DO15 175DEG 17.1V 400W |
2,700 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 17.1V | 19V | 27.7V | 14.5A | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
SMFA1505CATVS SOD-123FL ASYM 1505 Bi 7 |
2,690 |
|
Datasheet | SOD-123F | SMFA | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V | 6.82V | 10.5V | 33A | - | No | General Purpose | 565pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
PTVS14VP1UTP,115TVS DIODE 14VWM 23.2VC SOD128 |
2,619 |
|
Datasheet | SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 25.9A | 600W | No | - | - | -55°C ~ 185°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
|
SMAJ12AHTVS DIODE 12VWM 19.9VC DO214AC |
2,432 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 20.1A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
