TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMC5K13AHM3_A/HTVS DIODE 13VWM 21.5VC DO214AB |
1,163 |
|
Datasheet | DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 233A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
5KP20A-TPTVS DIODE 20VWM 32.4VC R6 |
985 |
|
Datasheet | R-6, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | - | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | R-6 |
|
|
5KP26A-TPTVS DIODE 26VWM 42.1VC R6 |
379 |
|
Datasheet | R-6, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | - | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | R-6 |
|
SLD5S16ATVS DIODE 16VWM 26VC SMTO-263 |
278 |
|
Datasheet | Nonstandard SMD | SLD5S | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 138A | 3600W (3.6kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMTO-263 |
|
|
5KP5.0A-TPTVS DIODE 5VWM 9.2VC R6 |
209 |
|
Datasheet | R-6, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | - | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | R-6 |
|
5.0SMDJ51ASTVS DIODE 51VWM 82.4VC DO214AB |
5,969 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJxxS | Tape & Reel (TR) | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 60.7A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ43ASTVS DIODE 43VWM 69.4VC DO214AB |
5,719 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJxxS | Tape & Reel (TR) | Active | Zener | 1 | - | 43V | 47.8V | 69.4V | 72.1A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
DM6W22AQ-13TVS DIODE 22VWM 35.5VC DO218 |
550 |
|
Datasheet | DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 130A | 4600W (4.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218 |
|

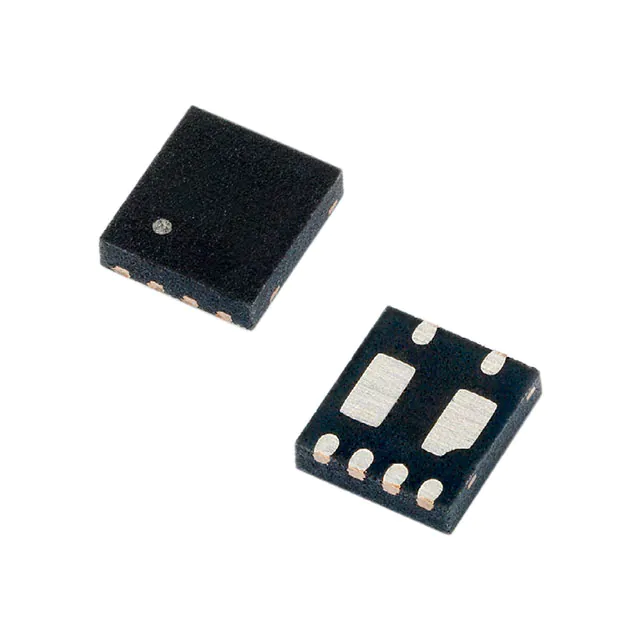

SMP1255PUTGTVS DIODE 4VWM 8.5VC 6UDFN |
2,954 |
|
Datasheet | 6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 4V (Max) | 4.5V | 8.5V | 4A (8/20µs) | - | Yes | USB OTG | 0.5pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-UDFN (1.8x2) |
|
ATV50C400JB-HFTVS DIODE 40VWM 64.5VC DO214AB |
1,746 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 77.5A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
5KP110A-E3/54TVS DIODE 110VWM 177VC P600 |
800 |
|
Datasheet | P600, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 110V | 122V | 177V | 28.2A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
5KP110A-TPTVS DIODE 110VWM 177VC R6 |
500 |
|
Datasheet | R-6, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 110V | 122V | 177V | - | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | R-6 |
|
5.0SMDJ40CA-T7TVS DIODE 40VWM 64.5VC DO214AB |
1,072 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 77.6A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ22CA-T7TVS DIODE 22VWM 35.5VC DO214AB |
640 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 141A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP4042-02UTGTVS DIODE 3.3VWM 22VC 10UDFN |
2,920 |
|
Datasheet | 10-UFDFN Exposed Pad | SP4042, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 3.3V (Max) | 3.5V | 22V | 100A (2/10µs) | 2500W (2.5kW) | Yes | Ethernet | 11pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UDFN (2.6x2.6) |
|
SM5S28AHE3_A/ITVS DIODE 28VWM 45.4VC DO218AB |
730 |
|
Datasheet | DO-218AB | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 79A | 3600W (3.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
BZW50-27RLTVS DIODE 27VWM 62VC R6 |
948 |
|
Datasheet | R-6, Axial | BZW50, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 27V | 30V | 62V | 968A (8/20µs) | 5000W (5kW) | No | General Purpose | 7000pF @ 1MHz | - | - | - | Through Hole | R-6 |
|
|
BZW50-82RLTVS DIODE 82VWM 189VC R6 |
816 |
|
Datasheet | R-6, Axial | BZW50, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 82V | 91V | 189V | 317A (8/20µs) | 5000W (5kW) | No | General Purpose | 2600pF @ 1MHz | - | - | - | Through Hole | R-6 |
|
|
BZW50-180RLTVS DIODE 180VWM 410VC R6 |
590 |
|
Datasheet | R-6, Axial | BZW50, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 180V | 200V | 410V | 146A (8/20µs) | 5000W (5kW) | No | General Purpose | 1500pF @ 1MHz | - | - | - | Through Hole | R-6 |
|
SMDA05-6/TR7TVS DIODE 5VWM 11VC 8-SO |
413 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 6 | - | 5V | 6V | 11V | 5A (8/20µs) | 300W | No | General Purpose | 550pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
