TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8.0SMDJ60CATVS DIODE 60VWM 96.8VC DO214AB |
1,032 |
|
Datasheet | DO-214AB, SMC | 8.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 82.7A | 8000W (8kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMDA12C-7.TBTTVS DIODE 12VWM 19VC 8-SO |
16,617 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | SMDAC-7 | Tape & Reel (TR) | Active | Zener | - | 7 | 12V (Max) | 13.3V | 19V | 12A (8/20µs) | 300W | No | General Purpose | 120pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
SMDA05C-7.TBTTVS DIODE 5VWM 9.8VC 8-SO |
2,180 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | SMDAC-7 | Tape & Reel (TR) | Active | Zener | - | 7 | 5V (Max) | 6V | 9.8V | 17A (8/20µs) | 300W | No | General Purpose | 350pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
SM8S15AHE3_A/ITVS DIODE 15VWM 24.4VC DO218AB |
1,687 |
|
Datasheet | DO-218AB | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 270A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
TP5.0SMDJ70CATVS 5KW AECQ-101 TR13 ROHS |
5,900 |
|
Datasheet | DO-214AB, SMC | TP5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 70V | 77.8V | 113V | 44.3A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|

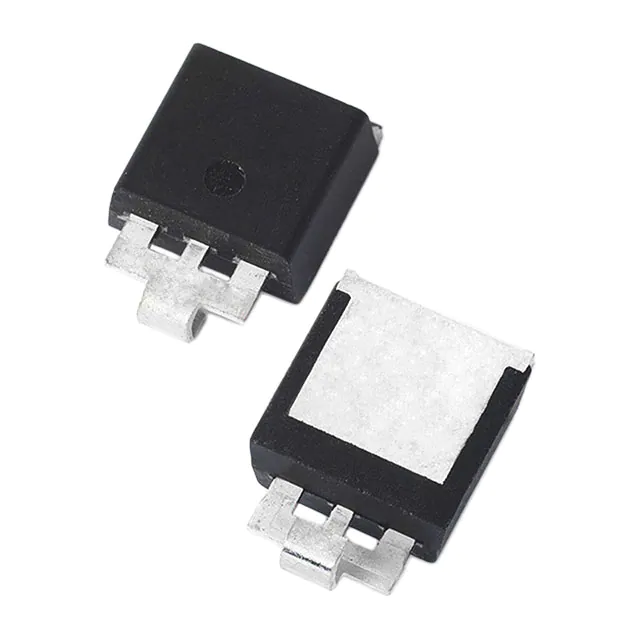

SLD8S33ATVS DIODE 33VWM 53.3VC SMTO-263 |
6,154 |
|
Datasheet | Nonstandard SMD | SLD8S | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 132A | 7000W (7kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMTO-263 |
|
|
SLD8S28ATVS DIODE 28VWM 45.4VC SMTO-263 |
1,953 |
|
Datasheet | Nonstandard SMD | SLD8S | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 154A | 7000W (7kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMTO-263 |
|
|
LC03-6.TBTTVS DIODE 6VWM 20VC 8-SO |
12,259 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 6V (Max) | 6.8V | 20V | 100A (8/20µs) | 2000W (2kW) | Yes | Ethernet | 16pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
MMAD1103E3/TR13TVS DIODE 75VWM 14SOIC |
1,098 |
|
Datasheet | 14-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 8 | - | 75V (Max) | 90V | - | - | - | No | Ethernet | 1.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
TCLAMP3302N.TCTTVS DIODE 3.3VWM 25VC SLP2626P10 |
11,286 |
|
Datasheet | 10-UFDFN Exposed Pad | TransClamp™ | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 3.3V (Max) | - | 25V | 95A (8/20µs) | 2500W (2.5kW) | Yes | Ethernet, Telecom | 25pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SLP2626P10 (2.6x2.6) |
|
MAX3204EETT+TTVS DIODE 6TDFN |
6,358 |
|
Datasheet | 6-WDFN Exposed Pad | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | - | - | - | - | - | No | Ethernet | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TDFN (3x3) |
|
15KPA150CATVS DIODE 150VWM 241.9VC P600 |
4,065 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | - | 1 | 150V | 167.6V | 241.9V | 62.4A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA260CATVS DIODE 260VWM 416.7VC P600 |
3,195 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | - | 1 | 260V | 290.4V | 416.7V | 36.2A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
SLVU2.8-4.TBTTVS DIODE 2.8VWM 15VC 8-SO |
10,651 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | SLV | Tape & Reel (TR) | Active | Zener | 4 | - | 2.8V (Max) | 3V | 15V | 24A (8/20µs) | 400W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
LCDA05.TBTTVS DIODE 5VWM 11VC 8-SO |
8,663 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5V (Max) | 6V | 11V | 5A (8/20µs) | 300W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
LCDA12.TBTTVS DIODE 12VWM 24VC 8-SO |
1,935 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 2 | 12V (Max) | 13.3V | 24V | 5A (8/20µs) | 300W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
LC03-3.3.TBTTVS DIODE 3.3VWM 18VC 8-SO |
16,375 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 3.3V (Max) | - | 18V | 100A (8/20µs) | 1800W (1.8kW) | Yes | Ethernet, Telecom | 16pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
SMDA15C.TBTTVS DIODE 15VWM 30VC 8-SO |
1,817 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | SMDAC | Tape & Reel (TR) | Active | Zener | - | 4 | 15V (Max) | 16.7V | 30V | 10A (8/20µs) | 300W | No | General Purpose | 75pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
SMDA12C.TBTTVS DIODE 12VWM 24VC 8-SO |
1,242 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | SMDAC | Tape & Reel (TR) | Active | Zener | - | 4 | 12V (Max) | 13.3V | 24V | 12A (8/20µs) | 300W | No | General Purpose | 120pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
LCDA15C-6.TBTTVS DIODE 15VWM 33VC 8-SO |
4,082 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 6 | 15V (Max) | 16.7V | 33V | 15A (8/20µs) | 500W | No | General Purpose | 8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
