TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LXES1UBBB1-008TVS DIODE 6VWM SMD |
6,920 |
|
Datasheet | 2-UDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 6V | 7V | - | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
CM1771-5006YJQTVS DIODE DIE |
3,593 |
|
Datasheet | Die | - | Bulk | Obsolete | Zener | - | 1 | - | 90V | - | - | - | No | General Purpose | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
CM6116TVS DIODE 20VC 4WLCSP |
3,209 |
|
Datasheet | 4-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | - | 16V | 20V | 1A (8/20µs) | - | No | General Purpose | - | -30°C ~ 85°C (TA) | - | - | Surface Mount | 4-WLCSP (0.8x0.8) |
|
LXES15AAA1-100TVS DIODE 1005 |
3,266 |
|
Datasheet | 0402 (1005 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | - | - | - | - | - | No | General Purpose | 0.05pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 1005 |
|
JANTX1N5772TVS DIODE 10CFLATPACK |
4,704 |
|
Datasheet | 10-CFlatPack | - | Bulk | Active | Steering (Rail to Rail) | 8 | - | - | - | - | - | - | No | Ethernet | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500/474 | Surface Mount | 10-CFlatpack |
|
SMDA12CDR2GTVS DIODE 12VWM 24VC 8-SOIC |
3,722 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Zener | - | 4 | 12V (Max) | 13.3V | 24V | 12A (8/20µs) | 300W | No | General Purpose | 120pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
ESD5V0D7-TPTVS DIODE 5VWM 13.3VC SOD723 |
2,500 |
|
Datasheet | SOD-723 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Max) | 6.2V | 13.3V | 8.8A (8/20µs) | 117W | No | General Purpose | 65pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-723 |
|
DF2B6.8FS(TPL3,T)TVS DIODE 5VWM 8.5VC FSC |
7,332 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V (Max) | 5.8V | 8.5V (Typ) | 1A (8/20µs) | - | No | General Purpose | 15pF @ 1MHz | - | - | - | Surface Mount | fSC |
|
XBP06V4E2HR-GTVS DIODE 5VWM 3USP |
3,162 |
|
Datasheet | 2-SFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 5V | 6.4V | - | - | 70W | No | General Purpose | 40pF @ 1MHz | - | - | - | Surface Mount | 3-USP (1.2x1.2) |
|
SMA6F13A-TPTVS DIODE 13VWM 20.4VC DO221AC |
7,813 |
|
Datasheet | DO-221AC, SMA Flat Leads | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 13V | 14.4V | 20.4V | 29A | 600W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-221AC (SMA-FL) |
|
15KP16A-TPTVS DIODE 15KW 17V UNI-DIR R6 |
3,581 |
|
Datasheet | R-6, Axial | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | R-6 |
|
PESD9X5.0L,315TVS DIODE 5VWM 18VC DFN1006-2 |
8,464 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Max) | 6.2V | 18V | 10A (8/20µs) | 150W | No | - | 68pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2 |
|
PUSBM12VX4-TL,115TVS DIODE 5.5VWM 12VC DFN1616-6 |
5,579 |
|
Datasheet | 6-XFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 12.5V | 12V | 3A (8/20µs) | 35W | Yes | USB OTG | - | -30°C ~ 85°C (TA) | - | - | Surface Mount | DFN1616-6 |
|
|
PUSBM5V5X4-TL,115TVS DIODE 5.5VWM 12VC DFN1616-6 |
8,503 |
|
Datasheet | 6-XFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6.4V | 12V | 3A (8/20µs) | 35W | Yes | USB OTG | - | -30°C ~ 85°C (TA) | - | - | Surface Mount | DFN1616-6 |
|
ESD5V3S1B02LSE6327XTSA1TVS DIODE 5.3VWM 26VC TSSLP-2 |
7,778 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5.3V (Max) | 6V | 26V | 5A (8/20µs) | - | No | General Purpose | 17pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSSLP-2-1 |
|
|
ESD5V3S1U02LSE6327XTSA1TVS DIODE 5.3VWM 15VC TSSLP-2-1 |
3,382 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5.3V | - | 15V | 2A (8/20µs) | - | - | General Purpose | - | - | - | - | Surface Mount | PG-TSSLP-2-1 |
|
|
ESD8V0R1B02ELSE6327XTSA1TVS DIODE 14VWM 28VC TSSLP-2 |
7,575 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 14V (Max) | 8.5V | 28V | 1A (8/20µs) | - | No | General Purpose | 4pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSSLP-2-2 |
|
ESDLC2V8P8U-TPTVS DIODE 2.8VWM 8VC 8-SOP |
9,731 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 2.8V | 3V | 8V | 5A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|

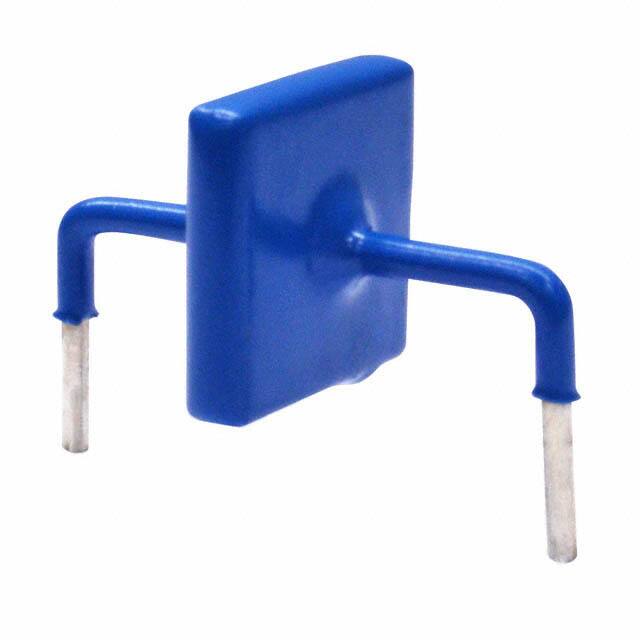

PTVS10-058CTVS DIODE 58VWM 130VC AXIAL |
7,929 |
|
Datasheet | Axial, Right Angle Bend (24.15mm Center) | PTVS | Bulk | Obsolete | Zener | - | 1 | 58V (Max) | 64V | 130V | 10000A (10kA) (8/20µs) | - | No | General Purpose | 11700pF @ 10kHz | -40°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
PTVS10-076CTVS DIODE 76VWM 160VC AXIAL |
8,454 |
|
Datasheet | Axial, Right Angle Bend (24.15mm Center) | PTVS | Bulk | Obsolete | Zener | - | 1 | 76V (Max) | 85V | 160V | 10000A (10kA) (8/20µs) | - | No | General Purpose | 8600pF @ 10kHz | -40°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
