TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6SMB440A/TR13P6SMB, DO-214AA, 376V, 602V, REE |
2,860 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 376V | 418V | 602V | 1.04A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
P6KE160ATVS DO15 136V 600W UNIDIR |
2,858 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 136V | 152V | 219V | 2.7A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|

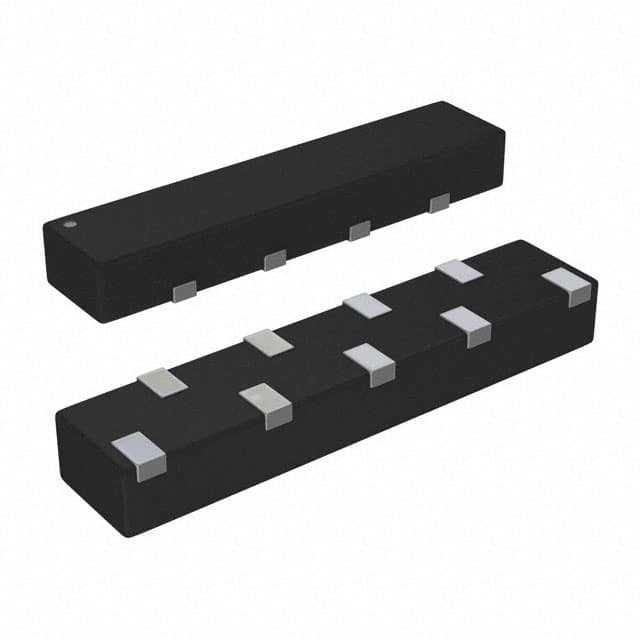

PE1605S8Q_R1_00001ULTRA LOW CAPACITANCE ESD PROTEC |
2,783 |
|
Datasheet | 9-UDFN | - | Tape & Reel (TR) | Active | Zener | 8 | - | 5V (Max) | 5.5V | 15V | 4A (8/20µs) | - | No | HDMI, USB | 0.3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3810-9 |
|
|
P6SMB440CA/TR13P6SMB, DO-214AA, 376V, 602V, REE |
2,055 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 376V | 418V | 602V | 1.04A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
;;2.jpg "P6KE10A-B")
|
P6KE10A-BTVS DIODE 8.55VWM 14.5VC DO204AC |
1,990 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Bulk | Active | Zener | 1 | - | 8.55V | 9.5V | 14.5V | 42.1A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE180A-TBTVS DIODE 154VWM 246VC DO204AC |
1,980 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Cut Tape (CT) | Active | Zener | 1 | - | 154V | 171V | 246V | 2.5A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
P6KE100A-BTVS DIODE 85.5VWM 137VC DO204AC |
1,899 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Bulk | Active | Zener | 1 | - | 85.5V | 95V | 137V | 4.5A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE27A-BTVS DIODE 23.1VWM 37.5VC DO204AC |
1,375 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Bulk | Active | Zener | 1 | - | 23.1V | 25.7V | 37.5V | 16.3A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
P6SMB15CA-QTVS DIODE 12.8VWM 21.2VC DO214AA |
20,694 |
|
Datasheet | DO-214AA, SMB | P6SMB-Q | Tape & Reel (TR) | Active | Zener | - | 1 | 12.8V | 14.3V | 21.2V | 28.8A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB540ATVS DIODE 486VWM 740VC DO214AA |
20,099 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 486V | 513V | 740V | 800mA | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMF9.0A-T13TVS DIODE 9VWM 15.4VC SOD123FL |
20,000 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 13A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF26A-T13TVS DIODE 26VWM 42.1VC SOD123FL |
18,805 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 4.8A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF14A-T13TVS DIODE 14VWM 23.2VC SOD123FL |
18,733 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 8.6A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
P6SMB400CATVS DIODE 342VWM 548VC DO214AA |
13,636 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 342V | 380V | 548V | 1.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMAJE180CATVS DIODE 180VWM 292VC SMA |
13,418 |
|
Datasheet | DO-214AC, SMA | SMAJE | Tape & Reel (TR) | Active | Zener | - | 1 | 180V | 201V | 292V | 1.4A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
;;2.jpg "SMBJ188D-M3/I")
|
SMBJ188D-M3/ITVS DIODE 188VWM 301VC DO214AA |
10,782 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 188V | 212V | 301V | 2.03A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
P6SMAJ12ADF-13TVS DIODE 12VWM 19.9VC D-FLAT |
9,843 |
|
Datasheet | 2-SMD, Flat Leads | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 30.2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P6SMAJ36ADF-13TVS DIODE 36VWM 58.1VC D-FLAT |
9,515 |
|
Datasheet | 2-SMD, Flat Leads | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 10.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
.jpg "TPSMB110A")
|
TPSMB110ATVS DIODE 94VWM 152VC DO214AA |
5,830 |
|
Datasheet | DO-214AA, SMB | TPSMB | Tape & Reel (TR) | Active | Zener | 1 | - | 94V | 105V | 152V | 4A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
P6KE7.5CA-TPTVS DIODE 6.4VWM 11.3VC DO15 |
7,848 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 6.4V | 7.13V | 11.3V | 53A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
