TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6SMB15CATVS DIODE 12.8VWM 21.2VC SMB |
11,651 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 12.8V | 14.3V | 21.2V | 28.8A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMBJ110CD-M3/ITVS DIODE 110VWM 174VC DO214AA |
11,508 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 110V | 124V | 174V | 3.45A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|

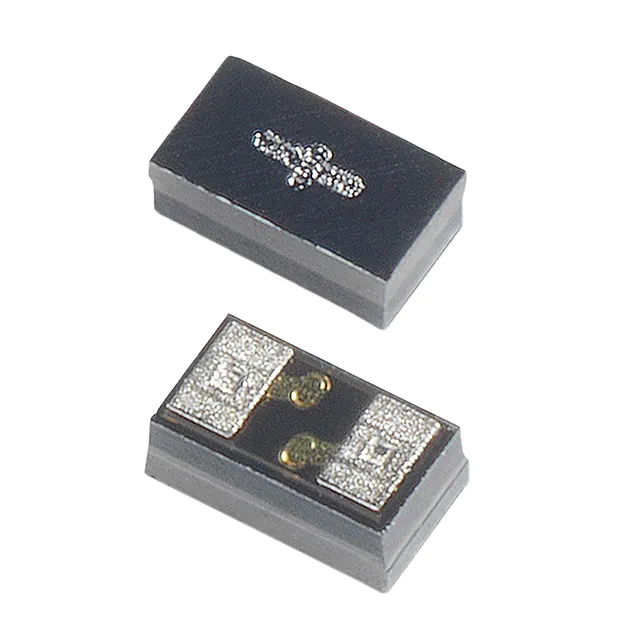

SP1312-01WTGTVS DIODE 12VWM 27VC 01005 |
10,175 |
|
Datasheet | 01005 (0402 Metric) | SP1312, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13V | 27V | 3A (8/20µs) | - | No | General Purpose | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 01005, Flip Chip |
|
ESDL3552PFCT5GESD PROTECTION |
9,671 |
|
Datasheet | 3-XFDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6.5V | 21.5V | 2A (8/20µs) | - | No | USB | 0.25pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-X4DFN (0.62x0.32) |
|
|
SMBJ45CD-M3/ITVS DIODE 45VWM 71.6VC DO214AA |
9,410 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50.8V | 71.6V | 8.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SJD12A16L01TVS ARRAY ESD, SOD-123, 16V 26V, |
9,000 |
|
Datasheet | DO-219AA | SJD12A16L01 | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 7.7A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123S |
|
|
SMBJ20CD-M3/ITVS DIODE 20VWM 32VC DO214AA |
8,600 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.5V | 32V | 18.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMA6F12AHD-M3/6ATVS DIODE 12VWM 22.9VC DO221AC |
8,589 |
|
Datasheet | DO-221AC, SMA Flat Leads | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.2V | 22.9V | 157A (8/20µs) | 4000W (4kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-221AC (SlimSMA) |
|
|
SMBJ120CD-M3/ITVS DIODE 120VWM 190VC DO214AA |
7,844 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 120V | 135V | 190V | 3.15A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ85CD-M3/HTVS DIODE 85VWM 135VC DO214AA |
7,666 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 85V | 95.7V | 135V | 4.46A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ22CD-M3/HTVS DIODE 22VWM 35.1VC DO214AA |
7,500 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.8V | 35.1V | 17.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
P6SMB20CATVS DIODE 17.1VWM 27.7VC SMB |
7,343 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 17.1V | 19V | 27.7V | 21.7A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
SMBJ33CD-M3/HTVS DIODE 33VWM 52.5VC DO214AA |
7,150 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 37.3V | 52.5V | 11.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
RSAC6.8CMT2RTVS DIODE 5VWM SOD923 |
5,586 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6.7V | - | - | - | No | General Purpose | 0.3pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | VMN2M (SOD-923) |
|
|
P6SMB43CATVS DIODE 36.8VWM 59.3VC SMB |
5,580 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 36.8V | 40.9V | 59.3V | 10.3A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
SMBJ110CD-M3/HTVS DIODE 110VWM 174VC DO214AA |
5,515 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 110V | 124V | 174V | 3.45A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
TPSMF4L7.0ATVS DIODE 7VWM 12VC SOD123FL |
5,222 |
|
Datasheet | SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 30.9A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
|
SMBJ20CD-M3/HTVS DIODE 20VWM 32VC DO214AA |
5,206 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.5V | 32V | 18.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ58CD-M3/HTVS DIODE 58VWM 92.3VC DO214AA |
5,170 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 65.4V | 92.3V | 6.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
P4SMAJ20ADF-13TVS DIODE 20VWM 32.4VC D-FLAT |
5,069 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 12.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
