TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5.0SMDJ13CATVS DIODE 13VWM 21.5VC DO214AB |
9,416 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 13V | 14.4V | 21.5V | 233A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ36CATVS DIODE 36VWM 58.1VC DO214AB |
2,136 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 86.1A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
5.0SMDJ15CATVS DIODE 15VWM 24.4VC DO214AB |
6,479 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 205A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
;;2.jpg "5.0SMDJ30A")
|
5.0SMDJ30ATVS DIODE 30VWM 48.4VC DO214AB |
10,336 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 103A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|

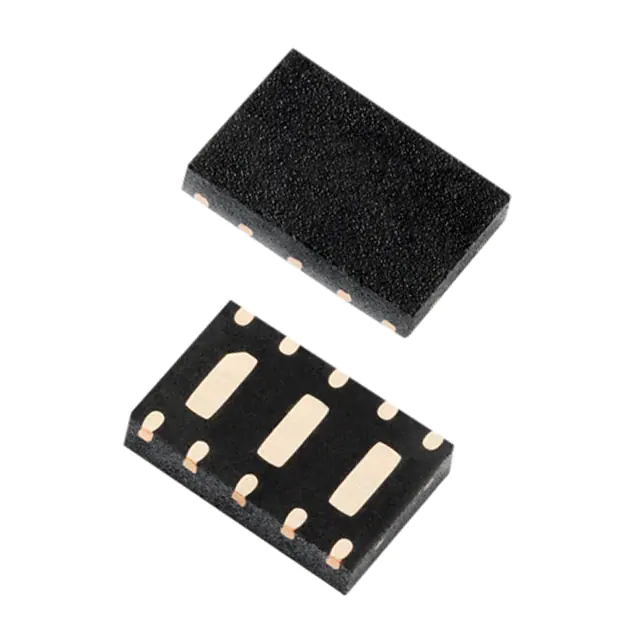

SP3374NUTGTVS DIODE 3.3VWM 18VC 10UDFN |
5,998 |
|
Datasheet | 10-UDFN Exposed Pad | SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | - | 18V | 25A (8/20µs) | 1000W (1kW) | Yes | Ethernet | 3.5pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 10-µDFN (3x2) |
|
UCLAMP3312T.TCTTVS DIODE 3.3VWM 11VC SLP2010N8T |
12,323 |
|
Datasheet | 8-XFDFN | uClamp® | Tape & Reel (TR) | Active | Zener | - | 2 | 3.3V (Max) | 3.5V | 11V | 10A (8/20µs) | 100W | No | Ethernet | 4.5pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SLP2010N8T |
|
RCLAMP7528T.TNTTVS DIODE 5VWM 15VC SLP2611N9T |
5,719 |
|
Datasheet | 9-XFDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 8 | - | 5V (Max) | 6.5V | 15V | 5A (8/20µs) | 75W | Yes | HDMI | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP2611N9T |
|
|
5.0SMDJ28CATVS DIODE 28VWM 45.4VC DO214AB |
17,590 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 28V | 31.1V | 45.4V | 110A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ60CATVS DIODE 60VWM 96.8VC DO214AB |
14,672 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 51.7A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ150ATVS DIODE 150VWM 243VC DO214AB |
2,869 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 150V | 167V | 243V | 20.6A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
5KP33CATVS P600 33V 5000W BIDIR |
24,968 |
|
Datasheet | P600, Axial | 5KP | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 95.7A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
5.0SMDJ45ATVS DIODE 45VWM 72.7VC DO214AB |
369 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 68.8A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SLVU2.8-4BTGTVS DIODE 2.8VWM 15VC 8-SOIC |
4,310 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | SLVU2.8-4, SPA® | Tape & Reel (TR) | Active | Zener | - | 4 | 2.8V (Max) | 3V | 15V | 40A (8/20µs) | 600W | No | General Purpose | 2pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
5.0SMDJ12CATVS DIODE 12VWM 19.9VC DO214AB |
33,396 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 252A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SP03-6BTGTVS DIODE 6VWM 20VC 8-SOIC |
8,352 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | SP03-6, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 6V (Max) | 6.8V | 20V | 150A (8/20µs) | 2800W (2.8kW) | Yes | Ethernet | 16pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
5.0SMDJ64ATVS DIODE 64VWM 103VC DO214AB |
6,461 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 64V | 71.1V | 103V | 48.6A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ90ATVS DIODE 90VWM 146VC DO214AB |
2,585 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 34.3A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ30CATVS DIODE 30VWM 48.4VC DO214AB |
45,103 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 103A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
USBQNM50415CE3/TR7TVS DIODE 15VWM 32VC QFN143 |
10,371 |
|
Datasheet | 4-VDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.7V | 32V | 5A (8/20µs) | 500W | No | Ethernet | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | QFN-143 |
|
|
SP2502LBTGTVS DIODE 3.3VWM 20VC 8-SOIC |
3,681 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | SP2502L, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 3.3V (Max) | 3.3V | 20V | 75A (8/20µs) | 2100W (2.1kW) | Yes | Ethernet | 5pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
