TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA15KP30ATVS DIODE 30VWM 50.7VC DO204AR |
2,093 |
|
Datasheet | DO-204AR, Axial | - | Bulk | Active | Zener | 1 | - | 30V | 33.3V | 50.7V | 296A | 15000W (15kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Through Hole | DO-204AR |
|
|
MA15KP30AE3TVS DIODE 30VWM 50.7VC DO204AR |
3,606 |
|
Datasheet | DO-204AR, Axial | - | Bulk | Active | Zener | 1 | - | 30V | 33.3V | 50.7V | 296A | 15000W (15kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Through Hole | DO-204AR |
|
|
MA15KP33ATVS DIODE 33VWM 54.8VC DO204AR |
9,751 |
|
Datasheet | DO-204AR, Axial | - | Bulk | Active | Zener | 1 | - | 33V | 36.7V | 54.8V | 274A | 15000W (15kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Through Hole | DO-204AR |
|
|
MA15KP33AE3TVS DIODE 33VWM 54.8VC DO204AR |
3,939 |
|
Datasheet | DO-204AR, Axial | - | Bulk | Active | Zener | 1 | - | 33V | 36.7V | 54.8V | 274A | 15000W (15kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Through Hole | DO-204AR |
|
|
MA15KP36ATVS DIODE 36VWM 59.7VC DO204AR |
4,443 |
|
Datasheet | DO-204AR, Axial | - | Bulk | Active | Zener | 1 | - | 36V | 40V | 59.7V | 251A | 15000W (15kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Through Hole | DO-204AR |
|
|
MA15KP36AE3TVS DIODE 36VWM 59.7VC DO204AR |
8,400 |
|
Datasheet | DO-204AR, Axial | - | Bulk | Active | Zener | 1 | - | 36V | 40V | 59.7V | 251A | 15000W (15kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Through Hole | DO-204AR |
|
AK3-150C-12TVS DIODE 150VWM 230VC AXIAL |
2,669 |
|
Datasheet | Axial, Right Angle Bend (24.15mm Center) | AK3 | Bulk | Active | Zener | - | 1 | 150V | 158V | 230V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 2600pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|

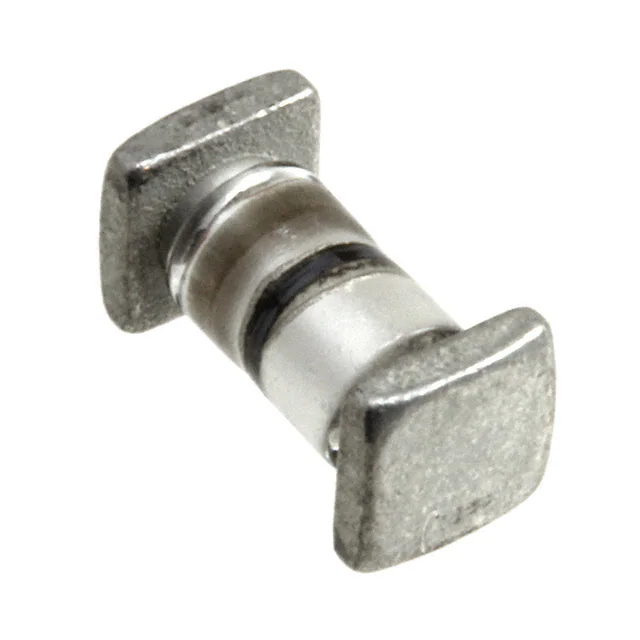

MV1N8163US/TRTVS DIODE 28VWM 45.7VC A SQ-MELF |
2,146 |
|
Datasheet | SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.4V | 45.7V | 3.28A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
MV1N8166US/TRTVS DIODE 36VWM 59.1VC A SQ-MELF |
8,725 |
|
Datasheet | SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40.9V | 59.1V | 2.54A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
MV1N8149US/TRTVS DIODE 6.8VWM 12.8VC SQ-MELF |
3,187 |
|
Datasheet | SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.8V | 7.79V | 12.8V | 11.7A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
MV1N8160US/TRTVS DIODE 20VWM 33.3VC A SQ-MELF |
3,762 |
|
Datasheet | SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.8V | 33.3V | 4.5A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
MV1N8168US/TRTVS DIODE 43VWM 70.1VC A SQ-MELF |
7,248 |
|
Datasheet | SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 43V | 48.5V | 70.1V | 2.14A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
MV1N8219US/TRTVS |
6,954 |
|
Datasheet | SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | - | - | - | - | - | No | General Purpose | - | - | Military | MIL-PRF-19500/469 | Surface Mount | A, SQ-MELF |
|
|
MV1N8159US/TRTVS |
3,028 |
|
Datasheet | SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20.9V | 30.5V | 4.92A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
MA15KP36A/TRTVS 36V 5% 15000W UNI |
8,279 |
|
Datasheet | DO-204AR, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 59.7V | 251A | 15000W (15kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Through Hole | DO-204AR |
|
|
MA15KP26A/TRTVS 26V 5% 15000W UNI |
6,311 |
|
Datasheet | DO-204AR, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 44V | 341A | 15000W (15kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Through Hole | DO-204AR |
|
|
MA15KP28A/TRTVS 28V 5% 15000W UNI |
4,718 |
|
Datasheet | DO-204AR, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 47.5V | 316A | 15000W (15kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Through Hole | DO-204AR |
|
|
MX1N8162US/TRLOW CAPACITANCE TVS |
2,658 |
|
Datasheet | SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 25V | 28.5V | 41.6V | 3.6A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
MX1N8161US/TRLOW CAPACITANCE TVS |
5,134 |
|
Datasheet | SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 25.7V | 37.4V | 4.01A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
MX1N8178US/TRLOW CAPACITANCE TVS |
7,699 |
|
Datasheet | SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 110V | 124V | 183V | 820mA | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
