TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5659AE3/TRUNI-DIRECTIONAL TVS |
4,206 |
|
Datasheet | DO-202AA, DO-13, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 102V | 114V | 165V | 9.1A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C | - | - | Through Hole | DO-13 (DO-202AA) |
|
|
JANTX1N6117US/TRBI-DIRECTIONAL TVS |
8,476 |
|
Datasheet | SQ-MELF, B | - | Tape & Reel (TR) | Active | Zener | - | 1 | 22.8V | 28.5V | 41.6V | 12A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Surface Mount | B, SQ-MELF |
|

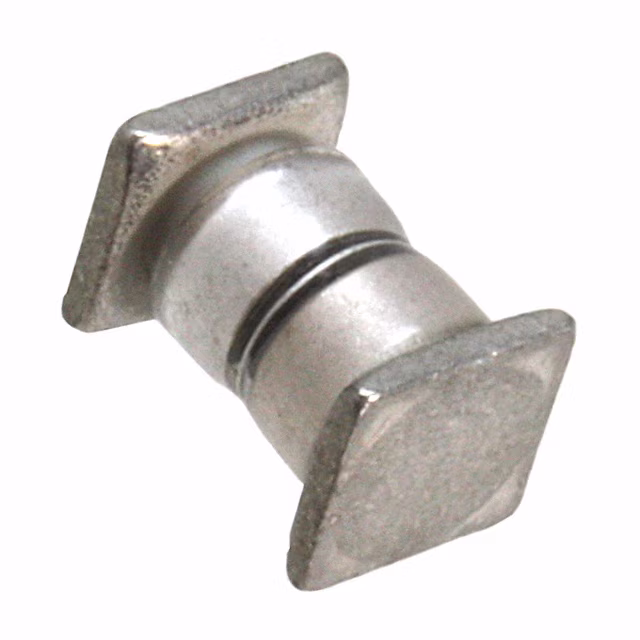

JANTX1N6114AUSTVS DIODE 16.7VWM 30.5VC |
3,760 |
|
Datasheet | E-MELF | - | Bulk | Active | Zener | - | 1 | 16.7V | 20.9V | 30.5V | 16.4A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Surface Mount | - |
|
JANTX1N6114USTVS DIODE 16.7VWM 32.03V SQ-MELF |
7,372 |
|
Datasheet | SQ-MELF, B | - | Bulk | Active | Zener | - | 1 | 16.7V | 19.86V | 32.03V | 15.58A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Surface Mount | B, SQ-MELF |
|
|
JANTX1N6133AUSTVS DIODE 98.8VWM 178.8V SQ-MELF |
7,582 |
|
Datasheet | SQ-MELF, B | - | Bulk | Active | Zener | - | 1 | 98.8V | 123.5V | 178.8V | 2.8A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Surface Mount | B, SQ-MELF |
|
|
JANTX1N6117AUSTVS DIODE 22.8VWM 41.6VC SQ-MELF |
5,792 |
|
Datasheet | SQ-MELF, B | - | Bulk | Active | Zener | - | 1 | 22.8V | 28.5V | 41.6V | 12A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Surface Mount | B, SQ-MELF |
|
|
ICT-15TVS DIODE 15VWM 20.6VC DO13 |
4,217 |
|
Datasheet | DO-13 | - | Bulk | Active | Zener | 1 | - | 15V | 17.6V | 20.6V | 60A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-13 |
|
JANTX1N6161A/TRTVS DIODE 47.1VWM 85.3VC C AXIAL |
9,710 |
|
Datasheet | G, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 47.1V | 58.9V | 85.3V | 17.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Through Hole | C, Axial |
|
|
MXSMCG12A/TRTVS DIODE 12VWM 19.9VC SMCG |
9,900 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 75.3A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
|
|
MXSMCG36A/TRTVS DIODE 36VWM 58.1VC SMCG |
2,369 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 25.8A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
|
|
MXSMCG54A/TRTVS DIODE 54VWM 87.1VC SMCG |
4,148 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Active | Zener | - | 1 | 54V | 60V | 87.1V | 17.2A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
|
|
MXSMCG54AE3/TRTVS DIODE 54VWM 87.1VC SMCG |
3,631 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Active | Zener | - | 1 | 54V | 60V | 87.1V | 17.2A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
|
|
MXSMCG58A/TRTVS DIODE 58VWM 93.6VC SMCG |
3,711 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 16A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
|
|
MXSMCG7.0A/TRTVS DIODE 7VWM 12VC SMCG |
5,662 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Active | Zener | - | 1 | 7V | 7.78V | 12V | 125A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
|
1N5647A/TRTVS DIODE 33.3VWM 53.9VC DO13 |
7,180 |
|
Datasheet | DO-13 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 33.3V | 37.1V | 53.9V | 28A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-13 |
|
|
JAN1N6164ATVS DIODE 62.2VWM 112.8VC AXIAL |
8,911 |
|
Datasheet | G, Axial | - | Bulk | Active | Zener | - | 1 | 62.2V | 77.9V | 112.8V | 13.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Through Hole | C, Axial |
|
|
JAN1N6166ATVS DIODE 76VWM 137.6VC C AXIAL |
5,019 |
|
Datasheet | G, Axial | - | Bulk | Active | Zener | - | 1 | 76V | 95V | 137.6V | 10.9A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Through Hole | C, Axial |
|
|
JAN1N6167ATVS DIODE 86.6VWM 151.3VC AXIAL |
4,362 |
|
Datasheet | G, Axial | - | Bulk | Active | Zener | - | 1 | 86.6V | 104.5V | 151.3V | 9.9A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Through Hole | C, Axial |
|
|
JAN1N6168ATVS DIODE 91.2VWM 165.1VC AXIAL |
4,754 |
|
Datasheet | G, Axial | - | Bulk | Active | Zener | - | 1 | 91.2V | 114V | 165.1V | 9.1A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Through Hole | C, Axial |
|
|
JAN1N6169ATVS DIODE 98.8VWM 178.8VC AXIAL |
8,685 |
|
Datasheet | G, Axial | - | Bulk | Active | Zener | - | 1 | 98.8V | 123.5V | 178.8V | 8.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Through Hole | C, Axial |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
