TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3KP6.5A_R2_00001SURFACE MOUNT TRANSIENT VOLTAGE |
4,142 |
|
Datasheet | P600, Axial | 3KP | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 267.9A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
3KP7.5A_R2_00001SURFACE MOUNT TRANSIENT VOLTAGE |
9,268 |
|
Datasheet | P600, Axial | 3KP | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 232.6A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
3KP6.0A_R2_00001SURFACE MOUNT TRANSIENT VOLTAGE |
7,913 |
|
Datasheet | P600, Axial | 3KP | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 291.3A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
3KP8.5A_R2_00001SURFACE MOUNT TRANSIENT VOLTAGE |
9,763 |
|
Datasheet | P600, Axial | 3KP | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 208.4A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
LDP35CARLTVS DIODE 35VWM 55VC R6 |
7,077 |
|
Datasheet | R-6, Axial | LDP | Tape & Reel (TR) | Active | Zener | - | 1 | 35V (Max) | 36V | 55V | 15A | 5W | No | General Purpose | 6400pF @ 1MHz | 175°C (TJ) | - | - | Through Hole | R-6 |
.jpg "MSMLJ58CAE3")
|
MSMLJ58CAE3TVS DIODE 58VWM 93.6VC DO214AB |
4,097 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 32A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB |
|
SM8S20ATVS 6600W 20VWM UniDir DO-218AB |
2,054 |
|
Datasheet | DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 204A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|

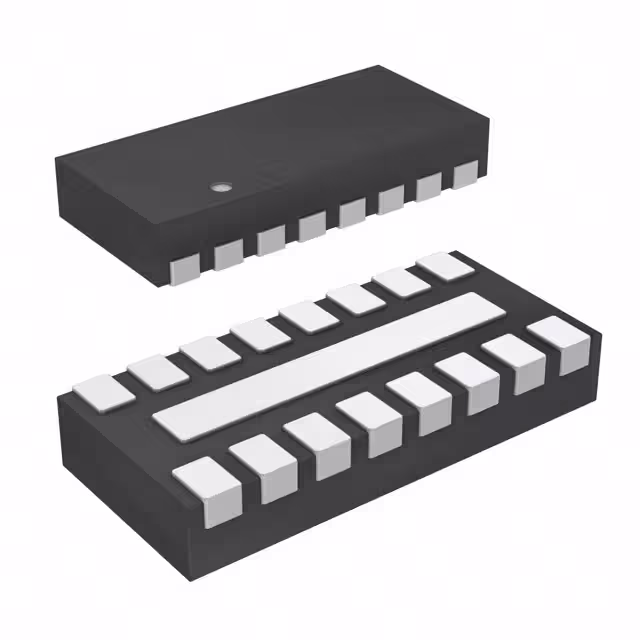

HSP061-8M16TVS DIODE 3VWM 14VC 16UQFN |
5,252 |
|
Datasheet | 16-UFDFN Exposed Pad | HSP | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 8 | - | 3V | 6V | 14V (Typ) | 3A (8/20µs) | - | Yes | HDMI | 0.6pF @ 200MHz ~ 3GHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-UQFN (3.5x1.5) |
|
|
MSMCJ33CAE3/TRTVS DIODE 33VWM 53.3VC SMCJ |
3,969 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 28.1A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCJ) |
|
|
MSMCJ5.0AE3/TRTVS DIODE 5VWM 9.2VC SMCJ |
2,090 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 163A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCJ) |
|
5.0SMDJ10A-HTVS DIODE 10VWM 17VC DO214AB |
4,543 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Cut Tape (CT) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 294.2A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
;;2.jpg "5.0SMDJ11A-H")
|
5.0SMDJ11A-HTVS DIODE 11VWM 18.2VC DO214AB |
6,447 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Cut Tape (CT) | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 274.8A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ5.0A-HTVS DIODE 5VWM 9.2VC DO214AB |
8,606 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Cut Tape (CT) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 543.6A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ6.0A-HTVS DIODE 6VWM 10.3VC DO214AB |
5,689 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 485.5A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ6.5A-HTVS DIODE 6.5VWM 11.2VC DO214AB |
8,628 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Cut Tape (CT) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 446.5A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ7.0A-HTVS DIODE 7VWM 12VC DO214AB |
8,072 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Cut Tape (CT) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 416.8A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ7.5A-HTVS DIODE 7.5VWM 12.9VC DO214AB |
4,475 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 387.7A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ8.0A-HTVS DIODE 8VWM 13.6VC DO214AB |
4,163 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 367.7A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ8.5ATVS DIODE 8.5VWM 14.4VC DO214AB |
5,387 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 347.3A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ8.5A-HTVS DIODE 8.5VWM 14.4VC DO214AB |
4,450 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Cut Tape (CT) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 347.3A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
