TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMC5K17AHM3_A/HTVS DIODE 17VWM 27.6VC DO214AB |
5,062 |
|
Datasheet | DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 181.2A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
6.6SM8Z43A-AQTVS DIODE 43VWM 69.4VC DO-218AB |
2,668 |
|
Datasheet | DO-218AB | - | Bulk | Active | Zener | 1 | - | 43V | 47.8V | 69.4V | 95.1A | 6600W (6.6kW) | No | - | - | -50°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
SMDJ24CA-T7TVS DIODE 24VWM 38.9VC DO214AB |
4,156 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 77.1A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|

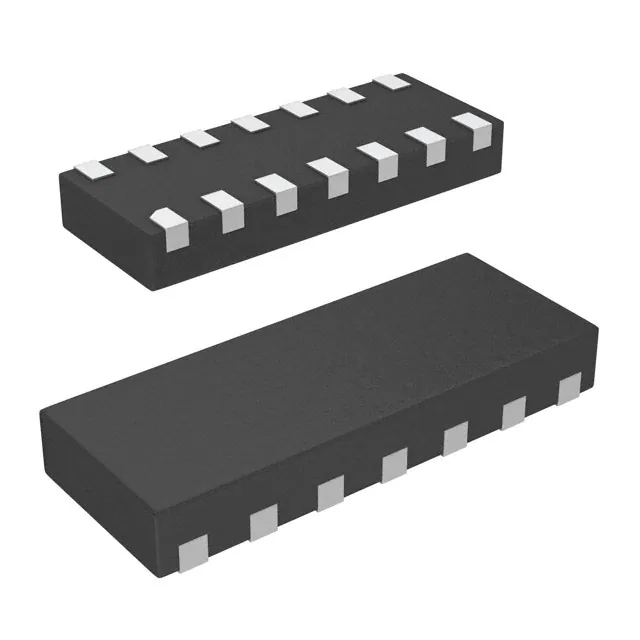

SP3012-06UTGTVS DIODE 5VWM 7VC 14UDFN |
2,776 |
|
Datasheet | 14-UFDFN | SP3012, SPA® | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 6 | - | 5V (Max) | - | 7V (Typ) | 4A (8/20µs) | - | Yes | - | 0.5pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 14-UDFN (3.5x1.35) |
|
SMDA03C-7E3/TR13TVS DIODE 3.3VWM 9VC 8-SO |
7,411 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | - | 7 | 3.3V | 4V | 9V | 5A (8/20µs) | 300W | No | General Purpose | 300pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDA05C-7E3/TR13TVS DIODE 5VWM 11VC 8-SO |
2,728 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | - | 7 | 5V | 6V | 11V | 5A (8/20µs) | 300W | No | General Purpose | 200pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDA12C-7E3/TR13TVS DIODE 12VWM 24VC 8-SO |
5,406 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | - | 7 | 12V | 13.3V | 24V | 5A (8/20µs) | 300W | No | General Purpose | 75pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDA15C-7E3/TR13TVS DIODE 15VWM 30VC 8-SOIC |
8,847 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | - | 7 | 15V | 16.7V | 30V | 5A (8/20µs) | 300W | No | General Purpose | 70pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDA24C-7E3/TR13TVS DIODE 24VWM 55VC 8-SO |
2,020 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | - | 7 | 24V | 26.7V | 55V | 5A (8/20µs) | 300W | No | General Purpose | 35pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDB03E3/TR13TVS DIODE 3.3VWM 9VC 8-SO |
5,556 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 4 | - | 3.3V | 4V | 9V | 5A (8/20µs) | 300W | No | General Purpose | 600pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDB05E3/TR13TVS DIODE 5VWM 11VC 8-SO |
3,724 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 4 | - | 5V | 6V | 11V | 5A (8/20µs) | 300W | No | General Purpose | 400pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDB12E3/TR13TVS DIODE 12VWM 19VC 8-SO |
7,950 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 4 | - | 12V | 13.3V | 19V | 5A (8/20µs) | 300W | No | General Purpose | 185pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDB15E3/TR13TVS DIODE 15VWM 24VC 8-SO |
2,580 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 4 | - | 15V | 16.7V | 24V | 5A (8/20µs) | 300W | No | General Purpose | 140pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDB24E3/TR13TVS DIODE 24VWM 43VC 8-SO |
3,049 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 4 | - | 24V | 26.7V | 43V | 5A (8/20µs) | 300W | No | General Purpose | 90pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
.jpg "SMLJ9.0AE3/TR13")
|
SMLJ9.0AE3/TR13TVS DIODE 9VWM 15.4VC DO214AB |
5,507 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 194.8A | 300W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB |
|
|
SMDA03C-7E3/TR7TVS DIODE 3.3VWM 9VC 8-SO |
8,386 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | - | 7 | 3.3V | 4V | 9V | 5A (8/20µs) | 300W | No | General Purpose | 300pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDA15C-7E3/TR7TVS DIODE 15VWM 30VC 8-SO |
7,412 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | - | 7 | 15V | 16.7V | 30V | 5A (8/20µs) | 300W | No | General Purpose | 70pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDA24C-7E3/TR7TVS DIODE 24VWM 55VC 8-SO |
9,900 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | - | 7 | 24V | 26.7V | 55V | 5A (8/20µs) | 300W | No | General Purpose | 35pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDB05E3/TR7TVS DIODE 5VWM 11VC 8-SO |
9,266 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 4 | - | 5V | 6V | 11V | 5A (8/20µs) | 300W | No | General Purpose | 400pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDB12E3/TR7TVS DIODE 12VWM 19VC 8-SO |
6,629 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 4 | - | 12V | 13.3V | 19V | 5A (8/20µs) | 300W | No | General Purpose | 185pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
