TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5KP40AHE3_A/CTVS DIODE |
3,319 |
|
Datasheet | P600, Axial | TransZorb® | Bulk | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 77.5A | 5000W (5kW) | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP75AHE3_A/CTVS DIODE |
8,614 |
|
Datasheet | P600, Axial | TransZorb® | Bulk | Active | Zener | 1 | - | 75V | 83.3V | 121V | 41.3A | 5000W (5kW) | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP15AHE3_A/CTVS DIODE |
7,114 |
|
Datasheet | P600, Axial | TransZorb® | Bulk | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 205A | 5000W (5kW) | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP85AHE3_A/CTVS DIODE |
7,726 |
|
Datasheet | P600, Axial | TransZorb® | Bulk | Active | Zener | 1 | - | 85V | 94.4V | 137V | 36.5A | 5000W (5kW) | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP8.5AHE3_A/CTVS DIODE |
7,291 |
|
Datasheet | P600, Axial | TransZorb® | Bulk | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 347A | 5000W (5kW) | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP12AHE3_A/CTVS DIODE |
3,278 |
|
Datasheet | P600, Axial | TransZorb® | Bulk | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 251A | 5000W (5kW) | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP51AHE3_A/CTVS DIODE |
8,518 |
|
Datasheet | P600, Axial | TransZorb® | Bulk | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 60.7A | 5000W (5kW) | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP16AHE3_A/CTVS DIODE |
6,756 |
|
Datasheet | P600, Axial | TransZorb® | Bulk | Active | Zener | 1 | - | 16V | 17.8V | 26V | 192A | 5000W (5kW) | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP17AHE3_A/CTVS DIODE |
6,228 |
|
Datasheet | P600, Axial | TransZorb® | Bulk | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 181A | 5000W (5kW) | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP11AHE3_A/CTVS DIODE |
8,871 |
|
Datasheet | P600, Axial | TransZorb® | Bulk | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 275A | 5000W (5kW) | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP20AHE3_A/CTVS DIODE |
7,674 |
|
Datasheet | P600, Axial | TransZorb® | Bulk | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 154A | 5000W (5kW) | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP45AHE3_A/CTVS DIODE |
9,754 |
|
Datasheet | P600, Axial | TransZorb® | Bulk | Active | Zener | 1 | - | 45V | 50V | 72.7V | 68.8A | 5000W (5kW) | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
ITA6V5B3TVS DIODE 5VWM 12.1VC 20SOIC |
7,749 |
|
Datasheet | 20-SOIC (0.295", 7.50mm Width) | ITA, TRANSIL™ | Tube | Obsolete | Zener | - | 9 | 5V | 6.5V | 12.1V | 25A (8/20µs) | 300W | No | General Purpose | 1100pF @ 1MHz | - | - | - | Surface Mount | 20-SO |
|
BZW50-39BRLTVS DIODE 39VWM 90VC R6 |
7,484 |
|
Datasheet | R-6, Axial | BZW50, TRANSIL™ | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 39V | 43.3V | 90V | 667A (8/20µs) | 5000W (5kW) | No | General Purpose | 2400pF @ 1MHz | - | - | - | Through Hole | R-6 |
|
6KA24HE3/73TVS DIODE 24VWM 45VC P600 |
4,172 |
|
Datasheet | P600, Axial | PAR® | Tape & Box (TB) | Obsolete | Zener | 1 | - | 24V | 26.7V | 45V | 90A (8/20µs) | 6000W (6kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|

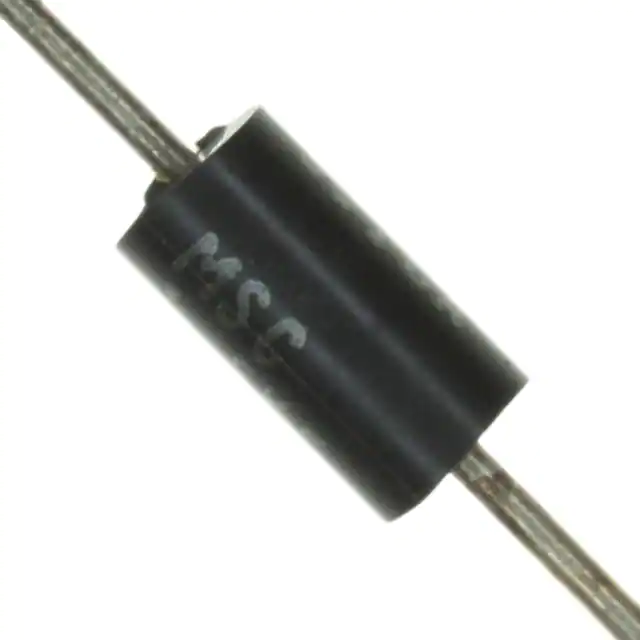

1.5KE6.8CAE3/TR13TVS DIODE 5.8VWM 10.5VC CASE-1 |
4,409 |
|
Datasheet | DO-201AA, DO-27, Axial | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5.8V | 6.45V | 10.5V | 143A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Through Hole | CASE-1 |
|
|
1.5KE9.1CAE3/TR13TVS DIODE 7.78VWM 13.4VC CASE-1 |
7,532 |
|
Datasheet | DO-201AA, DO-27, Axial | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 7.78V | 8.65V | 13.4V | 112A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Through Hole | CASE-1 |
|
SMBG36CA-E3/52TVS DIODE 36VWM 58.1VC DO215AA |
6,431 |
|
Datasheet | DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 10.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBG) |
|
CDNBS16-T12CTVS DIODE 12VWM 33VC 16SOIC |
7,559 |
|
Datasheet | 16-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 8 | 12V | 13.3V | 33V | 21A (8/20µs) | 500W | No | General Purpose | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
SMBJ15AE3/TR13TVS DIODE 15VWM 24.4VC SMBJ |
8,501 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 24A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
