TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPC15CAHM3/HTVS DIODE 12.8VWM 21.2VC TO277A |
3,334 |
|
Datasheet | TO-277, 3-PowerDFN | PAR®, eSMP® | Tape & Reel (TR) | Active | Zener | - | 1 | 12.8V | 14.3V | 21.2V | 70.8A | 1500W (1.5kW) | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) |
|
|
TPC24CAHM3/HTVS DIODE 20.5VWM 33.2VC TO277A |
8,150 |
|
Datasheet | TO-277, 3-PowerDFN | PAR®, eSMP® | Tape & Reel (TR) | Active | Zener | - | 1 | 20.5V | 22.8V | 33.2V | 45.2A | 1500W (1.5kW) | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) |
|

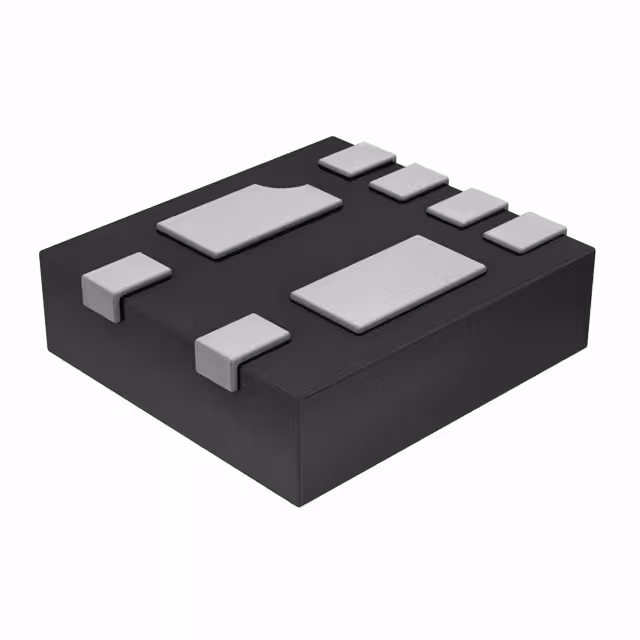

PCLAMP1211P.TGTTVS DIODE 13.5VWM 28VC SLP2018P6 |
4,747 |
|
Datasheet | 6-UFDFN Exposed Pad | RailClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 13.5V (Max) | 14.5V | 28V | 15A | 5000W (5kW) | No | General Purpose | 1500pF @ 1MHz | 0°C ~ 85°C (TJ) | - | - | Surface Mount | SLP2018P6 |
|

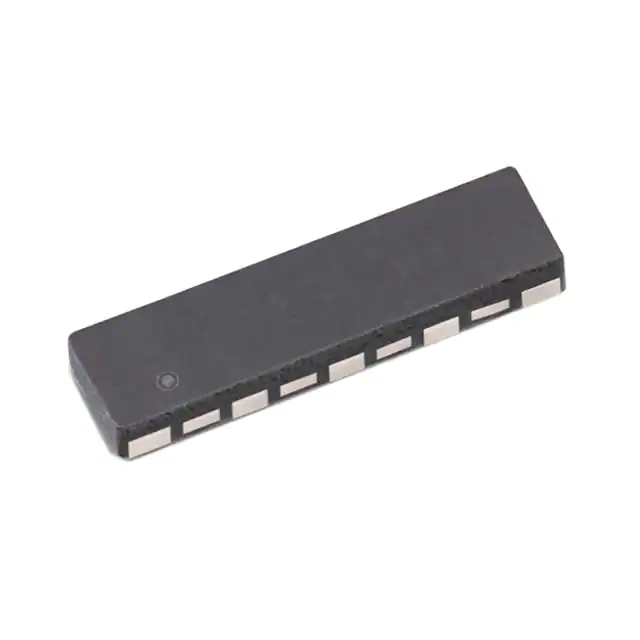

824014881TVS DIODE 1.2VWM 7VC DFN3810-9 |
5,287 |
|
Datasheet | 9-UDFN | WE-TVS | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 8 | - | 1.2V (Max) | 4.5V | 7V (Typ) | 4A (8/20µs) | - | No | General Purpose | 0.35pF @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | DFN3810-9 |
|
MSMBJ40AE3/TRTVS DIODE 40VWM 64.5VC SMBJ |
2,195 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 9.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AA (SMBJ) |
|
1.5KE440CA_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
9,115 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 376V | 418V | 600V | 2.6A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
|
1.5KE400CA_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
4,990 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 342V | 380V | 548V | 2.8A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
|
1.5KE250CA_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
3,606 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 214V | 237V | 344V | 4.5A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
|
1.5KE300CA_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
9,060 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 256V | 285V | 414V | 3.8A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
|
1.5KE350CA_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
8,484 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 300V | 332V | 482V | 3.2A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
|
TLD8S26AH6600W, 30.4V, 5%, UNIDIRECTIONAL |
5,240 |
|
Datasheet | DO-218AB | TLD8S | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 157A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
TLD8S16AH6600W, 18.8V, 5%, UNIDIRECTIONAL |
6,750 |
|
Datasheet | DO-218AB | TLD8S | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 254A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
TLD8S15AH6600W, 17.6V, 5%, UNIDIRECTIONAL |
8,030 |
|
Datasheet | DO-218AB | TLD8S | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 270A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
SESD1004Q4UG-0030-088TVS DIODE 7VWM 13VC 1004/10DFN |
9,900 |
|
Datasheet | 10-XFDFN | SESD, SPA® | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 7V (Max) | 8.8V (Typ) | 13V (Typ) | 2.2A (8/20µs) | - | No | HDMI | 0.3pF @ 3GHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 1004/10DFN (2.5x1.0) |
|
P4SMA51CAHM3_A/ITVS DIODE 43.6VWM 70.1VC DO214AC |
7,412 |
|
Datasheet | DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 43.6V | 48.5V | 70.1V | 5.7A | 400W | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA56CAHM3_A/ITVS DIODE 47.8VWM 77VC DO214AC |
5,361 |
|
Datasheet | DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 47.8V | 53.2V | 77V | 5.2A | 400W | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
5KP100A-GTVS DIODE 100VWM 162VC R6 |
2,569 |
|
Datasheet | R-6, Axial | - | Tape & Box (TB) | Active | Zener | 1 | - | 100V | 111V | 162V | 30.86A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | R-6 |
|
|
5KP100CA-GTVS DIODE 100VWM 162VC R6 |
2,763 |
|
Datasheet | R-6, Axial | - | Tape & Box (TB) | Active | Zener | - | 1 | 100V | 111V | 162V | 30.86A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | R-6 |
|
|
5KP10A-GTVS DIODE 10VWM 17VC R6 |
4,107 |
|
Datasheet | R-6, Axial | - | Tape & Box (TB) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 294.12A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | R-6 |
|
|
5KP10CA-GTVS DIODE 10VWM 17VC R6 |
2,245 |
|
Datasheet | R-6, Axial | - | Tape & Box (TB) | Active | Zener | - | 1 | 10V | 11.1V | 17V | 294.12A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | R-6 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
