TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5KP48CA-AT/BTVS P600 48V 77.4V AUTO BOX |
2,734 |
|
Datasheet | P600, Axial | 5KP-AT | Tape & Box (TB) | Active | Zener | - | 1 | 48V | 53.3V | 77.4V | 65.9A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP40CA-AT/BTVS P600 40V 64.5V AUTO BOX |
3,232 |
|
Datasheet | P600, Axial | 5KP-AT | Tape & Box (TB) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 79.1A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP6.0CA-AT/BTVS P600 6V 10.3V AUTO BOX |
5,960 |
|
Datasheet | P600, Axial | 5KP-AT | Tape & Box (TB) | Active | Zener | - | 1 | 6V | 6.67V | 10.3V | 495.1A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP160A-AT/BTVS P600 160V 259V AUTO BOX |
2,106 |
|
Datasheet | P600, Axial | 5KP-AT | Tape & Box (TB) | Active | Zener | 1 | - | 160V | 178V | 259V | 19.7A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP160CA-AT/BTVS P600 160V 259V AUTO BOX |
6,647 |
|
Datasheet | P600, Axial | 5KP-AT | Tape & Box (TB) | Active | Zener | - | 1 | 160V | 178V | 259V | 19.7A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP150A-AT/BTVS P600 150V 243V AUTO BOX |
8,921 |
|
Datasheet | P600, Axial | 5KP-AT | Tape & Box (TB) | Active | Zener | 1 | - | 150V | 167V | 243V | 21A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
5KP200CA-AT/BTVS P600 200V 329.2V AUTO BO |
6,664 |
|
Datasheet | P600, Axial | 5KP-AT | Tape & Box (TB) | Active | Zener | - | 1 | 200V | 224V | 329.2V | 15.5A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
MSMBG43CATVS DIODE 43VWM 69.4VC SMBG |
2,516 |
|
Datasheet | DO-215AA, SMB Gull Wing | - | Bulk | Active | Zener | - | 1 | 43V | 47.8V | 69.4V | 8.6A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AA (SMBG) |
|
MSMBJ9.0CATVS DIODE 9VWM 15.4VC SMBJ |
1,912 |
|
Datasheet | DO-214AA, SMB | - | Bulk | Active | Zener | - | 1 | 9V | 10V | 15.4V | 39A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AA (SMBJ) |
|
SMPC24A-M3/86ATVS DIODE 24VWM 38.9VC TO277A |
4,558 |
|
Datasheet | TO-277, 3-PowerDFN | TransZorb®, eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 38.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-277A (SMPC) |
|
|
TPC22AHM3/86ATVS DIODE 18.8VWM 30.6VC TO277A |
8,796 |
|
Datasheet | TO-277, 3-PowerDFN | PAR®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 18.8V | 20.9V | 30.6V | 49A | 1500W (1.5kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) |
|
|
TPC22HM3/86ATVS DIODE 17.8VWM 31.9VC TO277A |
4,307 |
|
Datasheet | TO-277, 3-PowerDFN | PAR®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 17.8V | 19.8V | 31.9V | 47A | 1500W (1.5kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) |
|
|
TPC24AHM3/86ATVS DIODE 20.5VWM 33.2VC TO277A |
9,150 |
|
Datasheet | TO-277, 3-PowerDFN | PAR®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 20.5V | 22.8V | 33.2V | 45.2A | 1500W (1.5kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) |
|
|
TPC36AHM3/86ATVS DIODE 30.8VWM 49.9VC TO277A |
6,827 |
|
Datasheet | TO-277, 3-PowerDFN | PAR®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 30.1A | 1500W (1.5kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) |
|
|
TPC36HM3/86ATVS DIODE 29.1VWM 52VC TO277A |
4,688 |
|
Datasheet | TO-277, 3-PowerDFN | PAR®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 29.1V | 32.4V | 52V | 28.8A | 1500W (1.5kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) |
|
|
MSMBJ12CATVS DIODE 12VWM 19.9VC SMBJ |
8,957 |
|
Datasheet | DO-214AA, SMB | - | Bulk | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 30.2A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AA (SMBJ) |
|
1.5SMC120A TR13 PBFREETVS DIODE 102VWM 165VC SMC |
4,722 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 102V | 114V | 165V | 9.1A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|

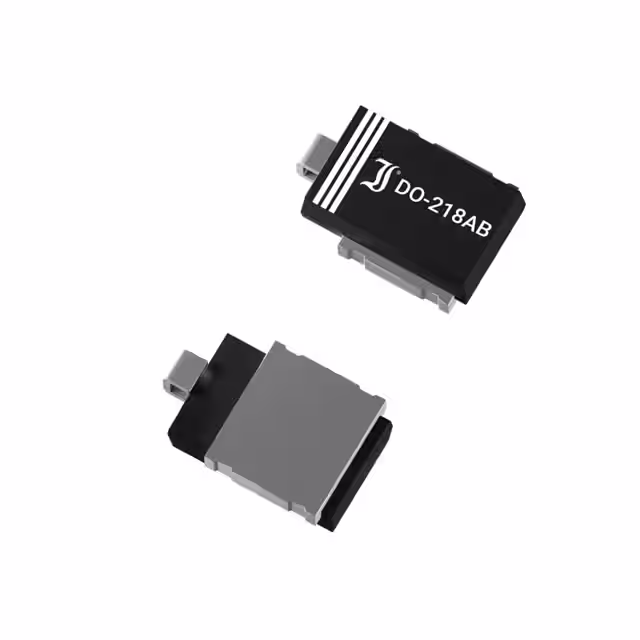

4.6SM6Z10A-AQTVS DIODE 10VWM 17VC DO-218AB |
2,740 |
|
Datasheet | DO-218AB | - | Bulk | Active | Zener | 1 | - | 10V | 11.1V | 17V | 271A | 4600W (4.6kW) | No | - | - | -50°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
4.6SM6Z24A-AQTVS DIODE 24VWM 38.9VC DO-218AB |
5,534 |
|
Datasheet | DO-218AB | - | Bulk | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 118A | 4600W (4.6kW) | No | - | - | -50°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
4.6SM6Z33A-AQTVS DIODE 33VWM 53.3VC DO-218AB |
9,450 |
|
Datasheet | DO-218AB | - | Bulk | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 86A | 4600W (4.6kW) | No | - | - | -50°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
