TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.5SMCJ24A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
6,779 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 38.6A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ30A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
8,892 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 31A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ22A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
6,121 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 42.2A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
1.5SMCJ48CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
9,932 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.3V | 77.4V | 19.4A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ20CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
5,298 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 46.3A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ20A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
2,692 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 46.3A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ17CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
3,566 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 17V | 18.9V | 27.6V | 53.3A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ64A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
7,754 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 64V | 71.1V | 103V | 14.6A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|

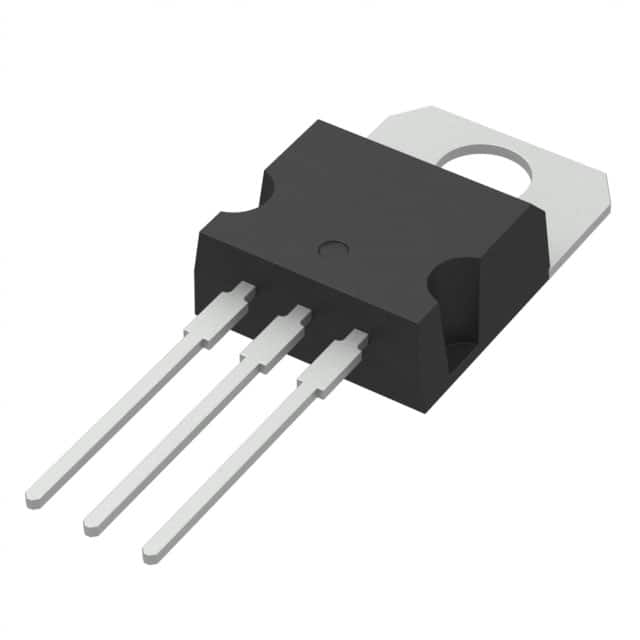

RBO08-40TTVS DIODE 20VWM 40VC TO220AB |
2,074 |
|
Datasheet | TO-220-3 | RBO | Tube | Obsolete | Zener | 1 | 1 | 20V | 22V | 40V | 15A, 37.5A | 600W | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-220 |
|
SMCG5631AE3/TR13TVS DIODE 7.02VWM 12.1VC DO215AB |
9,107 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 7.02V | 7.79V | 12.1V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-215AB (SMCG) |
|
|
SMCG5639AE3/TR13TVS DIODE 15.3VWM 25.2VC DO215AB |
5,315 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 15.3V | 17.1V | 25.2V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-215AB (SMCG) |
|
|
SMCG5642AE3/TR13TVS DIODE 20.5VWM 33.2VC DO215AB |
5,254 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 20.5V | 22.8V | 33.2V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-215AB (SMCG) |
|
|
SMCG5649AE3/TR13TVS DIODE 40.2VWM 64.8VC DO215AB |
8,325 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 40.2V | 44.7V | 64.8V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-215AB (SMCG) |
|
|
SMCG5663AE3/TR13TVS DIODE 145VWM 234VC DO215AB |
7,865 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 145V | 162V | 234V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-215AB (SMCG) |
|
|
SMCG6048AE3/TR13TVS DIODE 20VWM 33.2VC DO215AB |
4,350 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 20V | 22.8V | 33.2V | 45A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-215AB (SMCG) |
|
|
SMCG6052AE3/TR13TVS DIODE 30VWM 49.9VC DO215AB |
4,154 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 30V | 34.2V | 49.9V | 30A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-215AB (SMCG) |
|
SMCJ48CA-TPTVS DIODE 48VWM 77.4VC DO214AB |
4,169 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.3V | 77.4V | 19.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
1.5KE12AE3/TR13TVS DIODE 10.22VWM 16.7VC CASE-1 |
5,721 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 10.2V | 11.4V | 16.7V | 90A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
|
1.5KE18AE3/TR13TVS DIODE 15.3VWM 25.2VC CASE-1 |
6,144 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 15.3V | 17.1V | 25.2V | 59.5A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
|
1.5KE22AE3/TR13TVS DIODE 18.8VWM 30.6VC CASE-1 |
3,558 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 18.8V | 20.9V | 30.6V | 49A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
