TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM5S33ATHE3/ITVS DIODE 33VWM 53.3VC DO218AC |
9,389 |
|
Datasheet | DO-218AC | PAR® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 33V | 36.7V | 53.3V | 68A | 3600W (3.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AC |
|
|
SM5S40ATHE3/ITVS DIODE 40VWM 64.5VC DO218AC |
8,921 |
|
Datasheet | DO-218AC | PAR® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 40V | 44.4V | 64.5V | 56A | 3600W (3.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AC |
|
|
SM5S43ATHE3/ITVS DIODE 43VWM 69.4VC DO218AC |
6,437 |
|
Datasheet | DO-218AC | PAR® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 43V | 47.8V | 69.4V | 52A | 3600W (3.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AC |
|
1.5SMC13A-AU_R1_000A1SMC, TVS |
3,423 |
|
Datasheet | DO-214AB, SMC | 1.5SMC-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 11.1V | 12.4V | 18.2V | 82A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
1.5SMC47A-AU_R2_000A1GLASS PASSIVATED JUNCTION TRANSI |
3,805 |
|
Datasheet | DO-214AB, SMC | 1.5SMC-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 40.2V | 44.7V | 64.8V | 23.2A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMC22A-AU_R2_000A1GLASS PASSIVATED JUNCTION TRANSI |
6,756 |
|
Datasheet | DO-214AB, SMC | 1.5SMC-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 18.8V | 20.9V | 30.6V | 49A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMC27A-AU_R2_000A1GLASS PASSIVATED JUNCTION TRANSI |
4,366 |
|
Datasheet | DO-214AB, SMC | 1.5SMC-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 23.1V | 25.7V | 37.5V | 40A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMC15A-AU_R2_000A1GLASS PASSIVATED JUNCTION TRANSI |
7,562 |
|
Datasheet | DO-214AB, SMC | 1.5SMC-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 12.8V | 14.3V | 21.2V | 71A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMC75A-AU_R1_000A1GLASS PASSIVATED JUNCTION TRANSI |
6,715 |
|
Datasheet | DO-214AB, SMC | 1.5SMC-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 64.1V | 71.3V | 103V | 14.6A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMC56A-AU_R2_000A1GLASS PASSIVATED JUNCTION TRANSI |
8,887 |
|
Datasheet | DO-214AB, SMC | 1.5SMC-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 47.8V | 53.2V | 77V | 19.5A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMC30A-AU_R1_000A1GLASS PASSIVATED JUNCTION TRANSI |
6,291 |
|
Datasheet | DO-214AB, SMC | 1.5SMC-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 25.6V | 28.5V | 41.4V | 36A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMC24A-AU_R1_000A1GLASS PASSIVATED JUNCTION TRANSI |
2,794 |
|
Datasheet | DO-214AB, SMC | 1.5SMC-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 20.5V | 22.8V | 33.2V | 45A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMC16A-AU_R1_000A1GLASS PASSIVATED JUNCTION TRANSI |
9,099 |
|
Datasheet | DO-214AB, SMC | 1.5SMC-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 13.6V | 15.2V | 22.5V | 67A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|

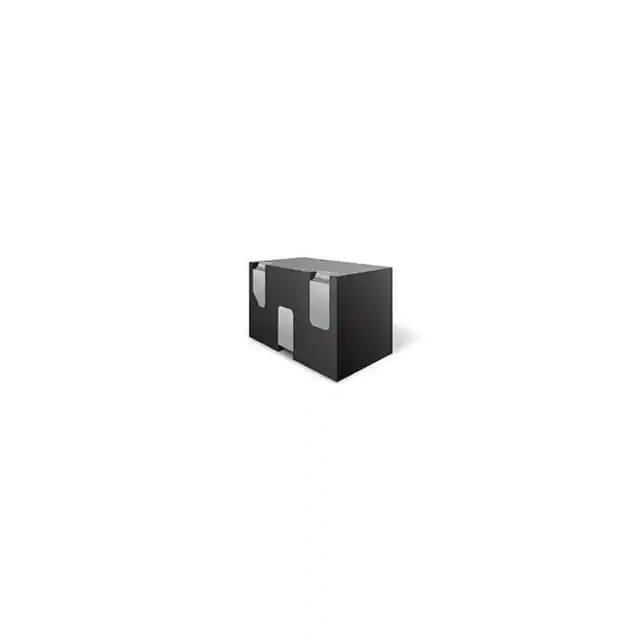

RCLAMP01892PWQCLOW CAPACITANCE RAILCLAMP 2-LINE |
3,111 |
|
Datasheet | 0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | 2 | - | 1.8V | - | - | 2.5A (8/20µs) | - | No | Ethernet | - | - | Automotive | AEC-Q100 | Surface Mount | 3-DFN (1x0.6) |
|
|
S16LC36-8TVS ARRAY 36V 300W SO-16 |
2,261 |
|
Datasheet | 16-SOIC (0.154", 3.90mm Width) | S16LCXX-8 | Tape & Reel (TR) | Active | Zener | 8 | - | 36V (Max) | 40V | 51V | 1A | 300W | Yes | Ethernet, Telecom | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 16-SO |
|
|
3KP16A-HFDIODE TVS 3000W 16VWM R6 UNI-DIR |
7,973 |
|
Datasheet | R-6, Axial | 3KP-HF | Tape & Box (TB) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 115.38A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | R-6 |
|
|
3KP85A-HFDIODE TVS 3000W 85VWM R6 UNI-DIR |
7,082 |
|
Datasheet | R-6, Axial | 3KP-HF | Tape & Box (TB) | Active | Zener | 1 | - | 85V | 94.4V | 137V | 21.9A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | R-6 |
|
|
3KP14A-HFDIODE TVS 3000W 14VWM R6 UNI-DIR |
9,490 |
|
Datasheet | R-6, Axial | 3KP-HF | Tape & Box (TB) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 129.31A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | R-6 |
|
|
3KP75A-HFDIODE TVS 3000W 75VWM R6 UNI-DIR |
8,203 |
|
Datasheet | R-6, Axial | 3KP-HF | Tape & Box (TB) | Active | Zener | 1 | - | 75V | 83.3V | 121V | 24.79A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | R-6 |
|
|
3KP7.5A-HFDIODE TVS 3000W 7.5VWM R6 UNI-DI |
2,549 |
|
Datasheet | R-6, Axial | 3KP-HF | Tape & Box (TB) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 232.56A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | R-6 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
