TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP1.5KE27ATVS DIODE 23.1VWM 37.5VC DO201 |
7,763 |
|
Datasheet | DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 23.1V | 25.7V | 37.5V | 40.5A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
|
TP1.5KE27CATVS DIODE 23.1VWM 37.5VC DO201 |
4,629 |
|
Datasheet | DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 23.1V | 25.7V | 37.5V | 40.5A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
|
|
TP1.5KE33ATVS DIODE 28.2VWM 45.7VC DO201 |
5,858 |
|
Datasheet | DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 28.2V | 31.4V | 45.7V | 33.3A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
|
|
TP1.5KE36ATVS DIODE 30.8VWM 49.9VC DO201 |
5,401 |
|
Datasheet | DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 30.5A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
|
|
TP1.5KE43ATVS DIODE 36.8VWM 59.3VC DO201 |
7,434 |
|
Datasheet | DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 36.8V | 40.9V | 59.3V | 25.6A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
|
|
TP1.5KE13ATVS DIODE 11.1VWM 18.2VC DO201 |
2,966 |
|
Datasheet | DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 11.1V | 12.4V | 18.2V | 83.5A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
|
|
TP1.5KE13CATVS DIODE 11.1VWM 18.2VC DO201 |
6,529 |
|
Datasheet | DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 11.1V | 12.4V | 18.2V | 83.5A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
|
|
TP1.5KE15ATVS DIODE 12.8VWM 21.2VC DO201 |
5,749 |
|
Datasheet | DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 12.8V | 14.3V | 21.2V | 71.7A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
|
|
TP1.5KE15CATVS DIODE 12.8VWM 21.2VC DO201 |
7,158 |
|
Datasheet | DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 12.8V | 14.3V | 21.2V | 71.7A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
|
|
TP1.5KE20ATVS DIODE 20VWM 27.7VC DO201 |
8,543 |
|
Datasheet | DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 19V | 27.7V | 54.9A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
|
|
TP1.5KE24ATVS DIODE 20.5VWM 33.2VC DO201 |
3,243 |
|
Datasheet | DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 20.5V | 22.8V | 33.2V | 45.8A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
|
|
TP1.5KE24CATVS DIODE 20.5VWM 33.2VC DO201 |
4,585 |
|
Datasheet | DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 20.5V | 22.8V | 33.2V | 45.8A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
|
|
TP1.5KE39CATVS DIODE 33.3VWM 53.9VC DO201 |
3,196 |
|
Datasheet | DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 33.3V | 37.1V | 53.9V | 28.2A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
|
|
TP1.5KE47ATVS DIODE 40.2VWM 64.8VC DO201 |
8,225 |
|
Datasheet | DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 40.2V | 44.7V | 64.8V | 23.5A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
|
|
TP1.5KE47CATVS DIODE 40.2VWM 64.8VC DO201 |
5,539 |
|
Datasheet | DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 40.2V | 44.7V | 64.8V | 23.5A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
|
3.0SMCJ9.0CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
9,019 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 9V | 10V | 15.4V | 194.8A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
.jpg "RCLAMP0594PWQ.C")
|

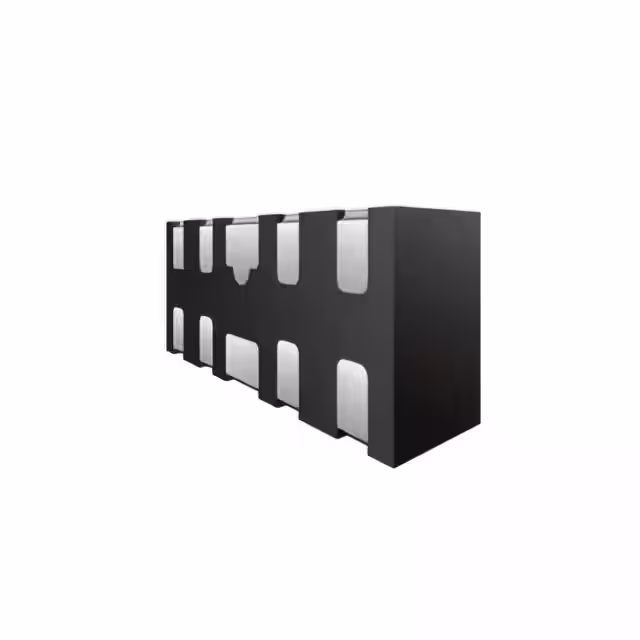

RCLAMP0594PWQ.CLOW CAPACITANCE RAILCLAMP 4-LINE |
2,478 |
|
Datasheet | 10-UFDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 15V | 6A (8/20µs) | - | No | HDMI | 0.8pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 10-DFN (2.5x1) |
|
TV50C101J-GTVS DIODE 100VWM 162VC DO214AB |
7,335 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 100V | 111V | 162V | 31.17A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
TV50C101JB-GTVS DIODE 100VWM 162VC DO214AB |
3,242 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 100V | 111V | 162V | 31.17A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
TV50C111J-GTVS DIODE 110VWM 177VC DO214AB |
8,203 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 110V | 122V | 177V | 28.53A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
