TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "SMCJ5649/TR13")
|
SMCJ5649/TR13TVS DIODE 38.1VWM 67.8VC DO214AB |
7,868 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 38.1V | 42.3V | 67.8V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ5651/TR13TVS DIODE 45.4VWM 80.5VC DO214AB |
7,707 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 45.4V | 50.4V | 80.5V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ5664/TR13TVS DIODE 146VWM 258VC DO214AB |
4,930 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 146V | 162V | 258V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
3SMC12A TR13 PBFREETVS DIODE 12VWM 19.9VC SMC |
7,531 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 150.6A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
SMCJ17CAQ-13-FTVS DIODE 17VWM 27.6VC SMC |
4,866 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 17V | 18.9V | 27.6V | 53.3A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
1.5SMCJ90AS_R1_00001TRANSIENT VOLTAGE SUPPRESSOR |
7,739 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 10.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ120AS_R1_00001TRANSIENT VOLTAGE SUPPRESSOR |
6,096 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 120V | 133V | 193V | 7.9A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SMC50J85CALinear IC's |
5,265 |
|
Datasheet | DO-214AB, SMC | SMC50J | Bulk | Active | Zener | - | 1 | 85V (Max) | 95V | 137V | 32A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMC50J100CALinear IC's |
6,035 |
|
Datasheet | DO-214AB, SMC | SMC50J | Bulk | Active | Zener | - | 1 | 100V (Max) | 111V | 179V | 28A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMC50J70CALinear IC's |
4,380 |
|
Datasheet | DO-214AB, SMC | SMC50J | Bulk | Active | Zener | - | 1 | 70V (Max) | 77.9V | 113V | 42A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|

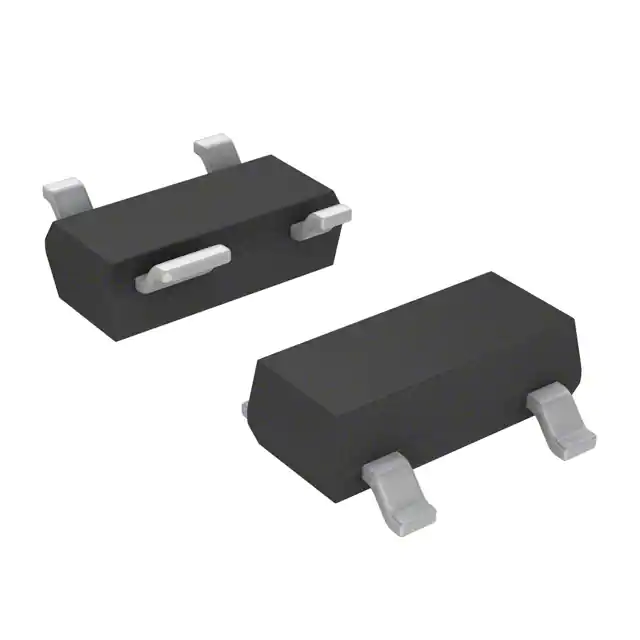

SR05-02CTGTVS DIODE 5VWM 18VC SOT143 |
1,938 |
|
Datasheet | SOT-143R | SR05, SPA® | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6V | 18V | 25A (8/20µs) | 450W | Yes | Ethernet | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-143 |
|
P4KE540CATVS DIODE 486VWM 740VC DO204AL |
9,797 |
|
Datasheet | DO-204AL, DO-41, Axial | P4KE | Tape & Reel (TR) | Active | Zener | - | 1 | 486V | 513V | 740V | 540mA | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|
1.5KE220ARLTVS DIODE 188VWM 388VC DO201 |
9,845 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 188V | 209V | 388V | 26A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 625pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
SMM4F20A-TRTVS DIODE 20VWM 42.8VC DO222-AA |
9,836 |
|
Datasheet | DO-222AA | SMM4F, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.8V | 42.8V | 54A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | STmite Flat (DO222-AA) |
|
SM15T7V5CA-E3/57TTVS DIODE 6.4VWM 11.3VC DO214AB |
9,645 |
|
Datasheet | DO-214AB, SMC | SM15T, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 6.4V | 7.13V | 11.3V | 132A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP3002-04UTGTVS DIODE 6VWM 13VC 6UDFN |
8,718 |
|
Datasheet | 6-XDFN | SP3002, SPA® | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 6V (Max) | - | 13V | 4.5A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-µDFN (1.6x1.6) |
|
GMF05LC-HSF-GS08TVS DIODE 5VWM 12.5VC LLP75-6L |
4,656 |
|
Datasheet | 6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Zener | 5 | - | 5V (Min) | 6V | 12.5V | 5A (8/20µs) | 70W | No | General Purpose | 43pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | LLP75-6L |
|
SLVU2.8-4TVS DIODE 2.8VWM 20VC 8-SO |
3,126 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 2.8V (Max) | - | 20V | 30A (8/20µs) | 600W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
SM6T22CAHM3_A/HTVS DIODE 18.8VWM 30.6VC DO214AA |
7,661 |
|
Datasheet | DO-214AA, SMB | SM6T, TransZorb® | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 18.8V | 20.9V | 30.6V | 20A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
SM6T27CAHM3_A/HTVS DIODE 23.1VWM 37.5VC DO214AA |
2,929 |
|
Datasheet | DO-214AA, SMB | SM6T, TransZorb® | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 23.1V | 25.7V | 37.5V | 16A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
