TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P4KE200CATVS DO15 171V 400W BIDIR |
4,814 |
|
Datasheet | DO-204AL, DO-41, Axial | P4KE | Tape & Reel (TR) | Active | Zener | - | 1 | 171V | 190V | 274V | 1.5A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|
|
P4KE180CATVS DO15 154V 400W BIDIR |
4,534 |
|
Datasheet | DO-204AL, DO-41, Axial | P4KE | Tape & Reel (TR) | Active | Zener | - | 1 | 154V | 171V | 246V | 1.7A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|
SMCJ130ATVS DIODE 130VWM 209VC SMC |
4,308 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 130V | 144V | 209V | 7.2A | 1500W (1.5kW) | No | General Purpose | - | - | - | - | Surface Mount | DO-214AB (SMC) |
|
SMCJ10ATVS DIODE 10VWM 17VC SMC |
4,145 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 88.2A | 1500W (1.5kW) | No | General Purpose | - | - | - | - | Surface Mount | DO-214AB (SMC) |
|
|
SMCJ17ATVS DIODE 17VWM 27.6VC SMC |
5,798 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 54.3A | 1500W (1.5kW) | No | General Purpose | - | - | - | - | Surface Mount | DO-214AB (SMC) |
|
|
SMCJ7V5ATVS DIODE 7.5VWM 12.9VC SMC |
6,556 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 116.3A | 1500W (1.5kW) | No | General Purpose | - | - | - | - | Surface Mount | DO-214AB (SMC) |
|
SMCJ6V5ATVS DIODE 6.5VWM 11.2VC SMC |
5,388 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 133.9A | 1500W (1.5kW) | No | General Purpose | - | - | - | - | Surface Mount | DO-214AB (SMC) |
|
|
SMCJ9V0ATVS DIODE 9VWM 15.4VC SMC |
5,272 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 97.4A | 1500W (1.5kW) | No | General Purpose | - | - | - | - | Surface Mount | DO-214AB (SMC) |
|
|
SMCJ8V5ATVS DIODE 8.5VWM 14.4VC SMC |
8,197 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 104.2A | 1500W (1.5kW) | No | General Purpose | - | - | - | - | Surface Mount | DO-214AB (SMC) |
|
P4KE20A-E3/54TVS DIODE 17.1VWM 27.7VC DO204AL |
7,169 |
|
Datasheet | DO-204AL, DO-41, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 17.1V | 19V | 27.7V | 14.4A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|
|
P4KE250A-E3/54TVS DIODE 214VWM 344VC DO204AL |
9,255 |
|
Datasheet | DO-204AL, DO-41, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 214V | 237V | 344V | 1.2A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|

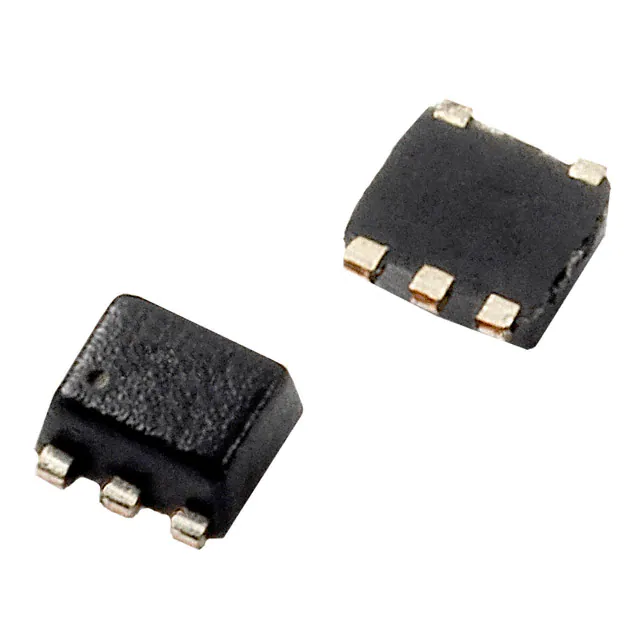

SP1004-04VTGTVS DIODE 6VWM 12VC SOT953 |
6,767 |
|
Datasheet | SOT-953 | SP1004, SPA® | Tape & Reel (TR) | Obsolete | Zener | - | 4 | 6V (Max) | 8V | 12V (Typ) | 2A (8/20µs) | - | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-953 |
|
SP1011-04UTGTVS DIODE 6VWM 10.2VC 6UDFN |
4,070 |
|
Datasheet | 6-XDFN | SP1011, SPA® | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 6V (Max) | 7V | 10.2V | 2A (8/20µs) | - | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-µDFN (1.25x1.0) |
|
USBQ50405E3/TR7TVS DIODE 5VWM 12VC QFN143 |
6,050 |
|
Datasheet | 4-VDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6V | 12V | 5A (8/20µs) | 500W | No | Ethernet | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | QFN-143 |
|
|
USBQ50412E3/TR7TVS DIODE 12VWM 26VC QFN143 |
8,040 |
|
Datasheet | 4-VDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 26V | 5A (8/20µs) | 500W | No | Ethernet | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | QFN-143 |
|
|
USBQ50412CE3/TR7TVS DIODE 12VWM 26VC QFN143 |
4,053 |
|
Datasheet | 4-VDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 26V | 5A (8/20µs) | 500W | No | Ethernet | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | QFN-143 |
|
|
USBQ50415CE3/TR7TVS DIODE 15VWM 32VC QFN143 |
2,145 |
|
Datasheet | 4-VDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.7V | 32V | 5A (8/20µs) | 500W | No | Ethernet | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | QFN-143 |
;;2.jpg "P6SMB510AHE3_A/H")
|
P6SMB510AHE3_A/HTVS DIODE 434VWM 698VC DO214AA |
4,565 |
|
Datasheet | DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 434V | 485V | 698V | 860mA | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
5.0SMLJ100A-TPTVS DIODE 100VWM 162VC DO214AB |
6,391 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 100V | 111V | 162V | 30.9A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMLJ110A-TPTVS DIODE 110VWM 177VC DO214AB |
8,261 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 110V | 122V | 177V | 28.3A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
