TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1SMC40AT3GTVS DIODE 40VWM 64.5VC SMC |
7,358 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 40V | 44.4V | 64.5V | 32.2A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
1SMC58AT3GTVS DIODE 58VWM 93.6VC SMC |
5,032 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 58V | 64.4V | 93.6V | 16A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
TPD2E001DRLRG4TVS DIODE 5.5VWM SOT5 |
9,086 |
|
Datasheet | SOT-553 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 11V | - | - | - | Yes | Ethernet | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-5 |
|
SA40CA-E3/54TVS DIODE 40VWM 64.5VC DO204AC |
4,335 |
|
Datasheet | DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 7.8A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
;;2.jpg "TGL41-20A-E3/96")
|
TGL41-20A-E3/96TVS DIODE 17.1VWM 27.7VC GL41 |
8,416 |
|
Datasheet | DO-213AB, MELF | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 17.1V | 19V | 27.7V | 14.4A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-213AB (GL41) |
|
CM1214A-02MRTVS DIODE 7VWM 11.3VC 8-MSOP |
3,076 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | Zener | - | 2 | 7V | - | 11.3V (Typ) | 1A (8/20µs) | - | No | Ethernet, RF Antenna | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
IP4386CX4/P,315TVS DIODE 14VWM 20VC 4WLCSP |
4,135 |
|
Datasheet | 4-WFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 14V (Max) | 16V | 20V | 28A (8/20µs) | - | No | General Purpose | 160pF @ 1MHz | -35°C ~ 85°C (TA) | - | - | Surface Mount | 4-WLCSP (0.91x0.91) |
|
SP0524PUTGTVS DIODE 5VWM 7VC 10UDFN |
9,445 |
|
Datasheet | 10-UFDFN | SP0524P, SPA® | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5V (Max) | - | 7V (Typ) | 4A (8/20µs) | - | Yes | - | 0.5pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 10-µDFN (2.5x1.0) |
|
SMAJ434ATVS DIODE 434VWM 698VC SMA |
8,822 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 434V | 485V | 698V | 600mA | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ495ATVS DIODE 495VWM 760VC SMA |
5,775 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 495V | 522V | 760V | 500mA | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
BZG04-18TRTVS DIODE 18VWM 31VC DO214AC |
8,409 |
|
Datasheet | DO-214AC, SMA | BZG04 | Cut Tape (CT) | Obsolete | Zener | 1 | - | 18V | 20.8V | 31V | 9.7A | 300W | No | - | 610pF @ 1MHz | - | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
BZG04-47TRTVS DIODE 47VWM 78.6VC DO214AC |
6,721 |
|
Datasheet | DO-214AC, SMA | BZG04 | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 47V | 52V | 78.6V | 3.8A | 300W | No | - | 330pF @ 1MHz | - | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
P6KE33ATVS DIODE 28VWM 59VC DO15 |
6,379 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE, TRANSIL™ | Cut Tape (CT) | Obsolete | Zener | 1 | - | 28V | 31.4V | 59V | 68A (8/20µs) | 600W | No | General Purpose | 1000pF @ 1MHz | - | - | - | Through Hole | DO-204AC (DO-15) |
|
RCLAMP5011T.TNTTVS DIODE 5VWM 14VC SLP0806P2T |
9,732 |
|
Datasheet | 2-XFDFN | RailClamp® | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V (Max) | 6.5V | 14V | 4A (8/20µs) | - | No | HDMI | 0.4pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SLP0806P2T |
|
SMPC22AN-M3/HTVS DIODE 22VWM 35.5VC TO277A |
3,525 |
|
Datasheet | TO-277, 3-PowerDFN | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 42.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-277A (SMPC) |
|
|
SMPC43AN-M3/HTVS DIODE 43VWM 69.4VC TO277A |
2,429 |
|
Datasheet | TO-277, 3-PowerDFN | TransZorb®, eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 43V | 47.8V | 69.4V | 21.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-277A (SMPC) |
|
|
SMPC45AN-M3/HTVS DIODE 45VWM 72.7VC TO277A |
7,571 |
|
Datasheet | TO-277, 3-PowerDFN | TransZorb®, eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 20.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-277A (SMPC) |
|

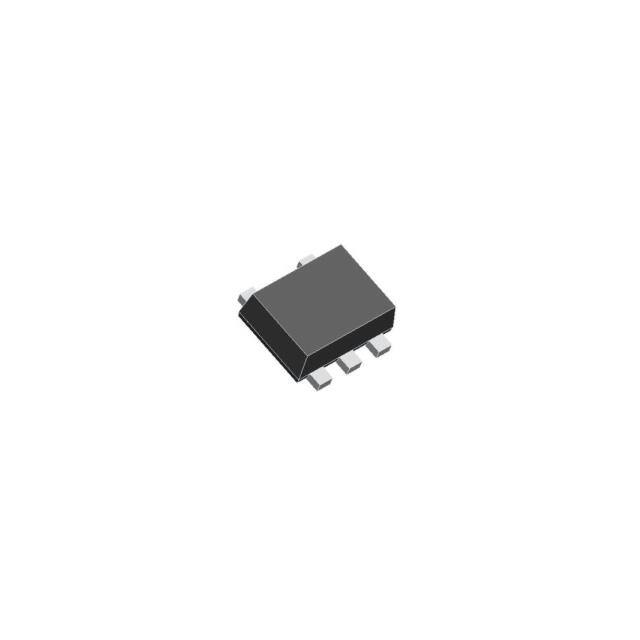

DF5A6.8CJEDIODE ESD 5V SOT-553 |
4,567 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1KSMB27ATVS DIODE 23.1VWM 37.5VC DO214AA |
6,123 |
|
Datasheet | DO-214AA, SMB | 1KSMB | Tape & Reel (TR) | Active | Zener | 1 | - | 23.1V | 25.7V | 37.5V | 26.7A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
1KSMB15ATVS DIODE 12.8VWM 21.2VC DO214AA |
6,915 |
|
Datasheet | DO-214AA, SMB | 1KSMB | Tape & Reel (TR) | Active | Zener | 1 | - | 12.8V | 14.3V | 21.2V | 47.2A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
